4. Maintenance Inspection
42

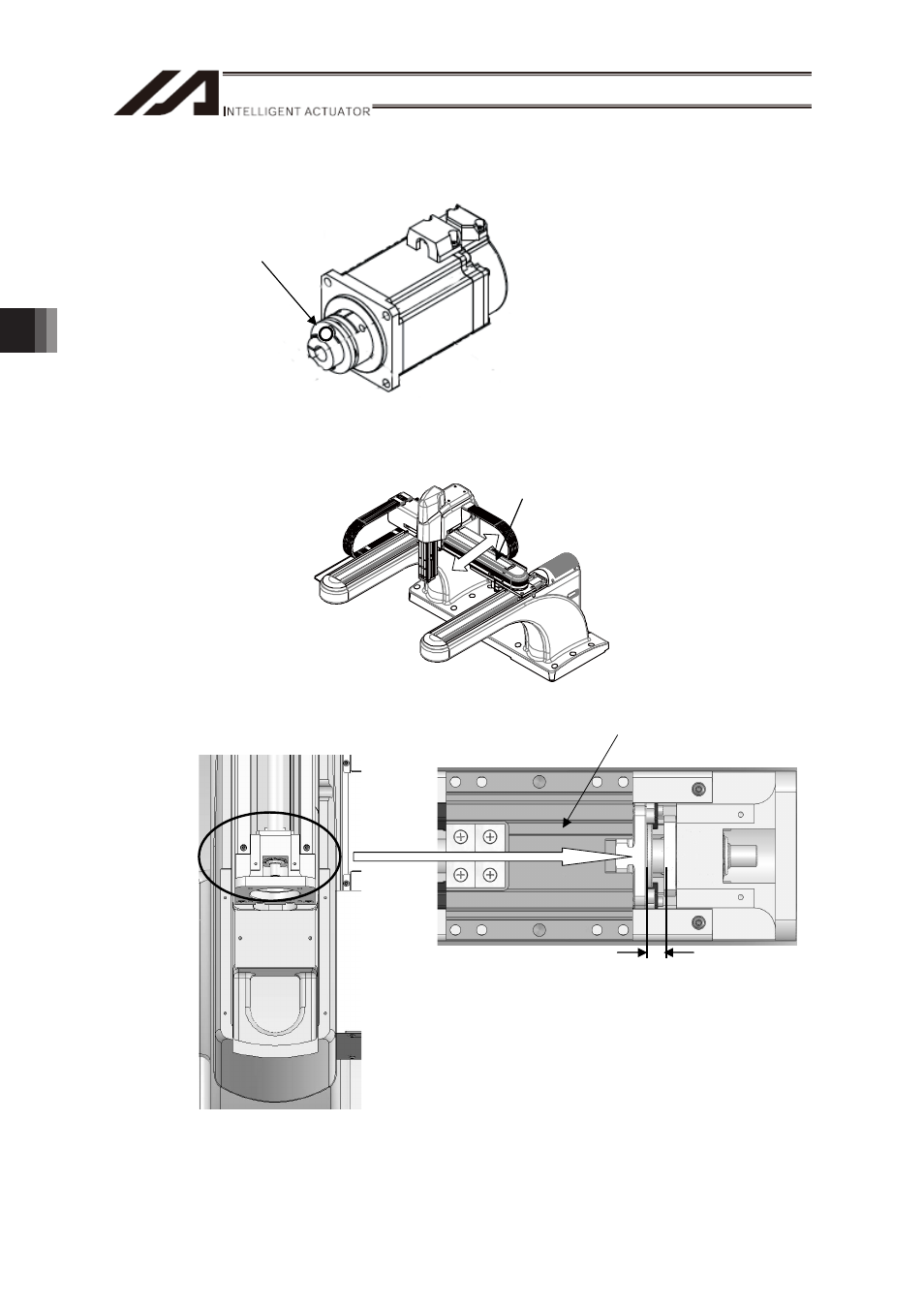

(4) Attaching the New Motor
1) Adjust the coupling on the new motor so the screw on it faces up.








2) Move the Y-axis and adjust it to the position where the clearance gets to 7mm as shown in
the figure.












Screw
Y-axis
7mm
Slider with the Y-axis mounted
