Main door “steel” assembly – American Dryer Corp. AD-540 User Manual
Page 12
10
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781

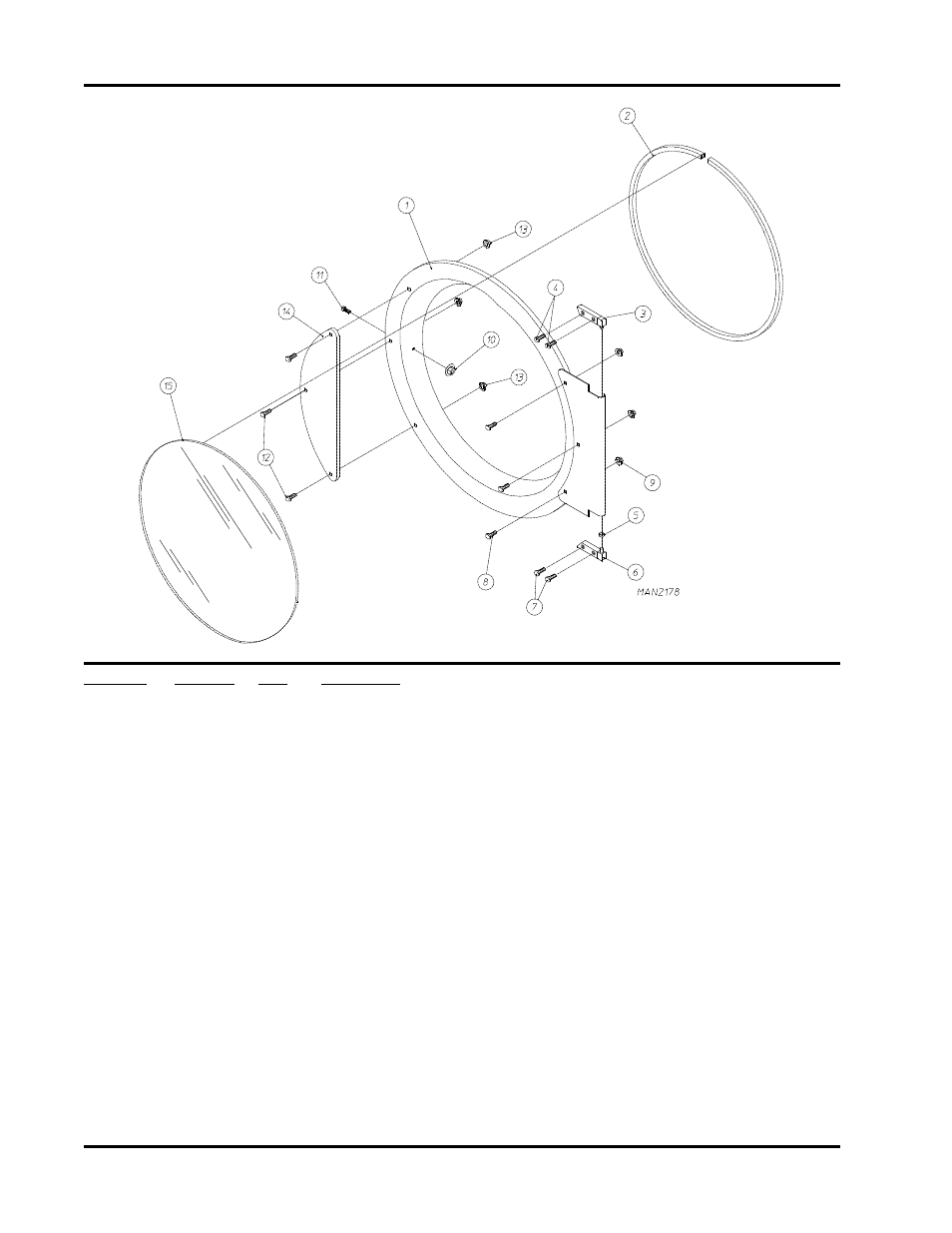

Main Door “Steel” Assembly
Illus. No.
Part No.
Qty.
Description
1
881150
1
Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2
102353
1
Door Gasket
170731
1
Gasket Adhesive (black) 10.3 oz. Cartridge
170730
Gasket Adhesive (clear) 10.3 oz. Cartridge
3
881152
1
Top Hinge Block (black)
(includes illus. nos. 3 and 4)
4
150445
2
1/4-20 x 3/4” Black Cap Head Setscrew
5
153031
1
1/4” Nylon Washer
6
881151
1
Bottom Hinge Block (black)
7
150445
2
1/4-20 x 3/4” Black Cap Head Setscrew
8
150683
3
1/4-20 x 5/8” Carriage Bolt (black)
9
152014
3
1/4-20 Free Spin Wash Nut
10
151010
1
#10-32 Hex Acorn Nut (black)
11
150120
1
Door Latch Screw
12
150683
3
1/4-20 x 5/8” Carriage Bolt (black)
13
152014
3
1/4-20 Free Spin Wash Nut
14
881210
1
Black Main Door Handle ONLY
15
102211
1
#20-7/16” Door Glass
170731
1
Glass Adhesive (black) 10.3 oz. Cartridge
170730
1
Glass Adhesive (clear) 10.3 oz. Cartridge
