American Dryer Corp. AD-540 - Manual (Page 28)

26
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1 181038 1 1/4 HP 115/230v/60 Hz Blower Motor
2 100604 1 12-1/2” Impellor with 1/2” Bore
3 153050 4 1/2” x 1-1/16” Flat Washer
4 152006 2 1/2-20 Left Hand Jam Nut
5 100731 1 1/8” x 3/32” x 1-1/8” Key
6 153007 4 1/4” Split Lock Washer
7 153001 4 5/16” Flat Washer
8 153002 4 5/16” Split Lock Washer
9 152004 4 5/16-18 Hex Nut
10 154279 4 5/16-18 x 3/4” Carriage Bolt
11 117604 4 1/8” x 3/8” Neoprene Sponge Tape (sold by the foot)
12 150111 4 1/4-20 x 1/2” Phillips Round Head Machine Screw
13 882922 1 Blower Motor Mount ONLY
882714 1 Blower Motor and Mount Assembly Complete
(includes illus. nos. 1 through 13)

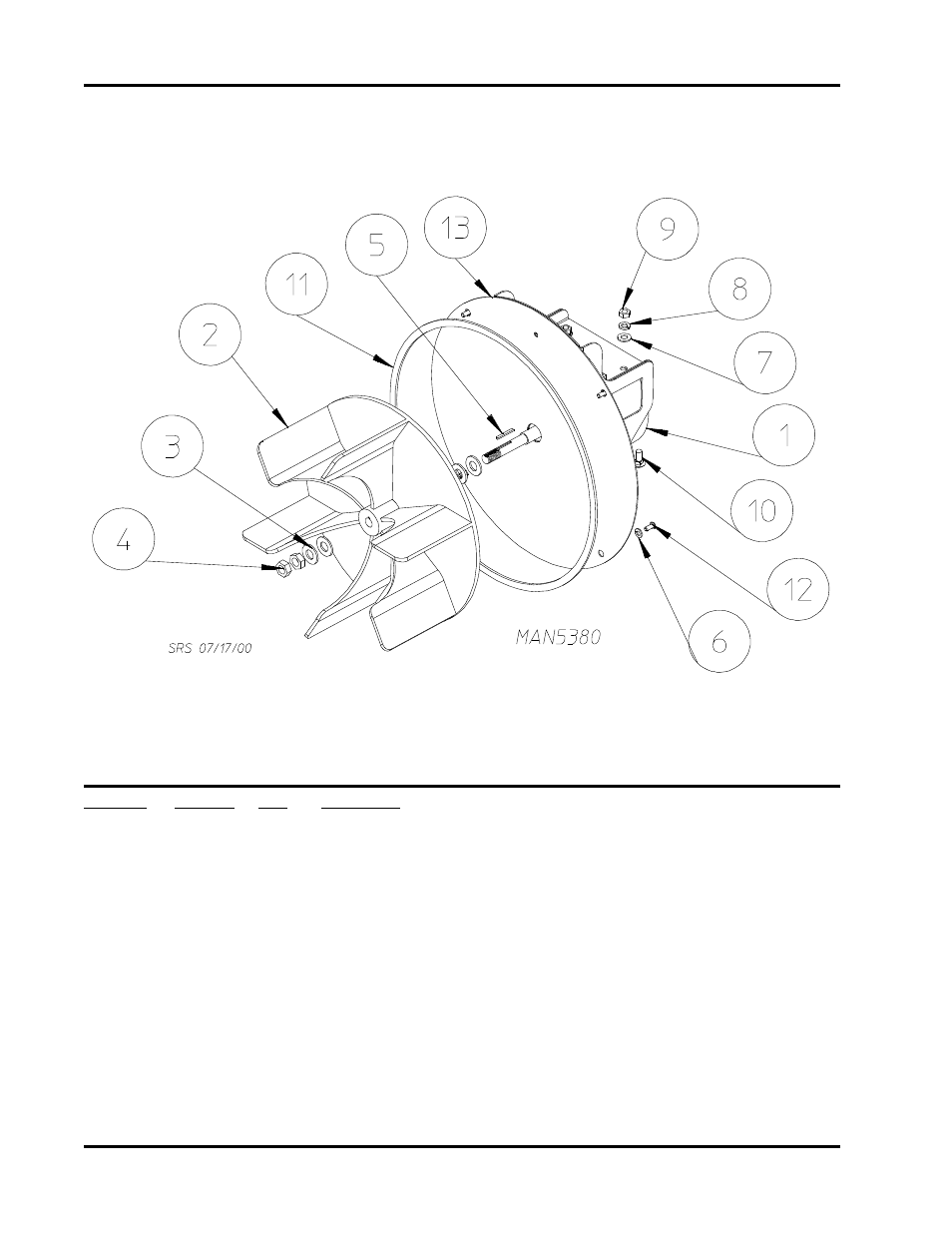

Blower Motor Assembly
