Illus. No.
Part No.
Qty.
Description
1
154210
40
5/32” x 3/16” Pop Rivet
2
354217
1
Spacer Plate
3
153048
1
Inner Friction Teflon
®
Pad
4
116332
1
94” x 2-1/2” x 1/8” Felt Collar
5
882765
1
One Arm Basket (Tumbler) Support Assembly
(includes illus. nos. 2, 3, and 5)
6
882766
1
Basket (Tumbler) Assembly for One Arm Basket (Tumbler) Support
(includes illus. nos. 1, 4, and 12)
882788
1
One Arm Basket (Tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10 and 12)
7
100918
2
3/8-16 x 26-3/4” Hex Head Tie Rod
8
153004
10
3/8” x 1” Flat Washer
9
153005
2
3/8” Split Lock Washer
10
152005
2
3/8-16 Hex Nut
11
100191
1
12 Rib 105” Long (J) High Temperature Belt
12
115992
1
Inner Ring Felt Collar
401010
1
#847 Adhesive for Felt Collar (5 oz. tube)

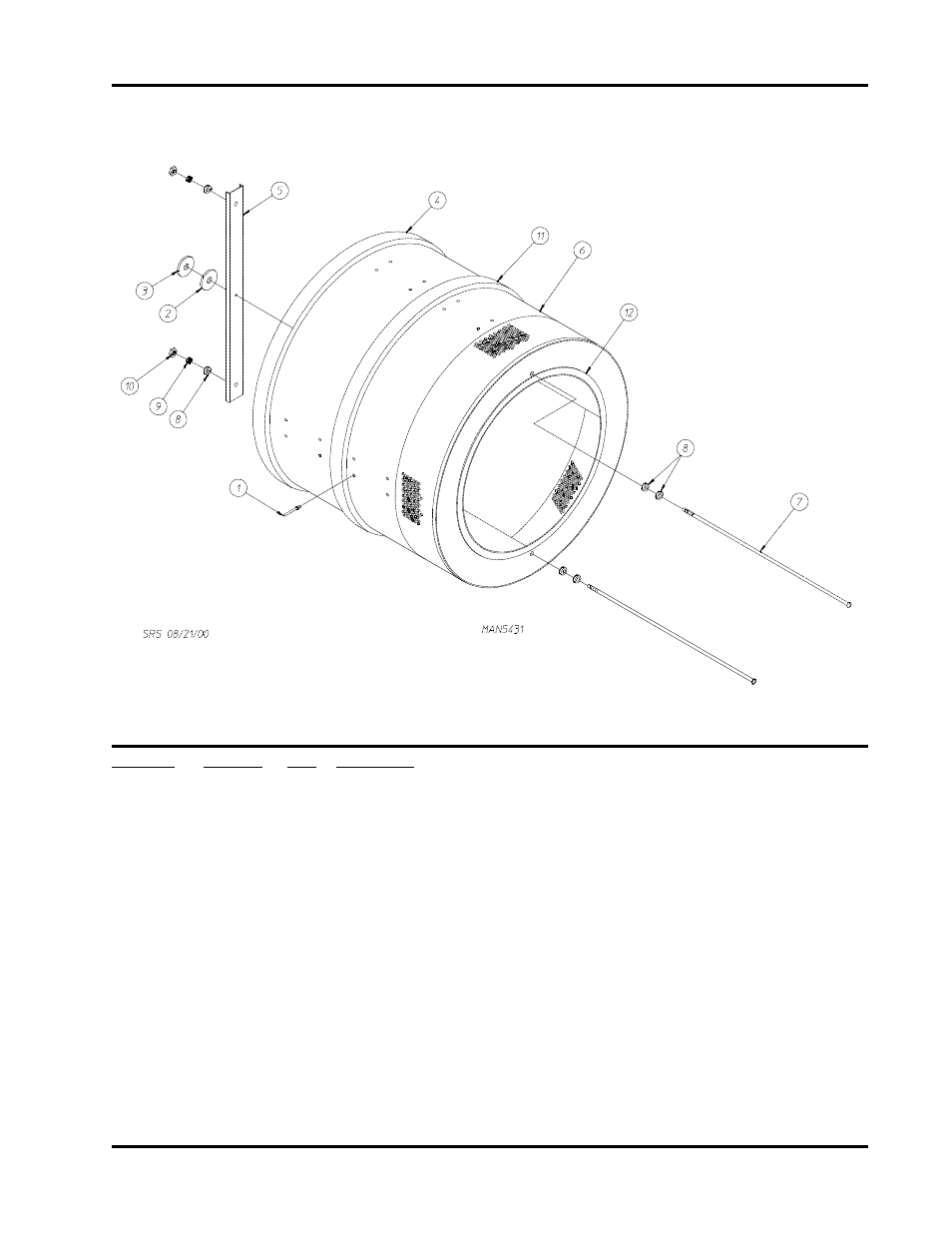

Basket (Tumbler)/Support Assemblies
For Models Mfd. prior to December 12, 2000
