3
Telephone: (508) 678-9000 Fax: (508) 678-9447
Illus. No. Part No. Qty. Description
1 883144 1 White Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
883149 1 Bisque Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
883159 1 Stainless Steel Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
2 881987 2 Friction Door Latch Kit
(includes illus. nos. 2 and 3)
3 154215 4 5/32 x 1/4” Rivet
4 -------- 1 Top Hinge Block Assembly
(refer to Main Door “Steel” Assembly on page 10)
5 -------- 1 Main Door Switch
(refer to Main Door Switch Assembly on page 11)
6 -------- 1 Bottom Hinge Block Assembly
(refer to Main Door “Steel” Assembly on page 10)
7 354197 2 Arrow Backup Plate
8 150517 10 #10-16 x 1-1/2” Hex Head TEK Screw
9 882798 1 Black Kick Plate
10 150311 2 #10-16 x 3/4” Hex Head TEK Crimptite Screw
11 150309 8 #10-16 x 1/2” Hex Head TEK Screw
12 881053 1 ADC Logo with Adhesive Tape

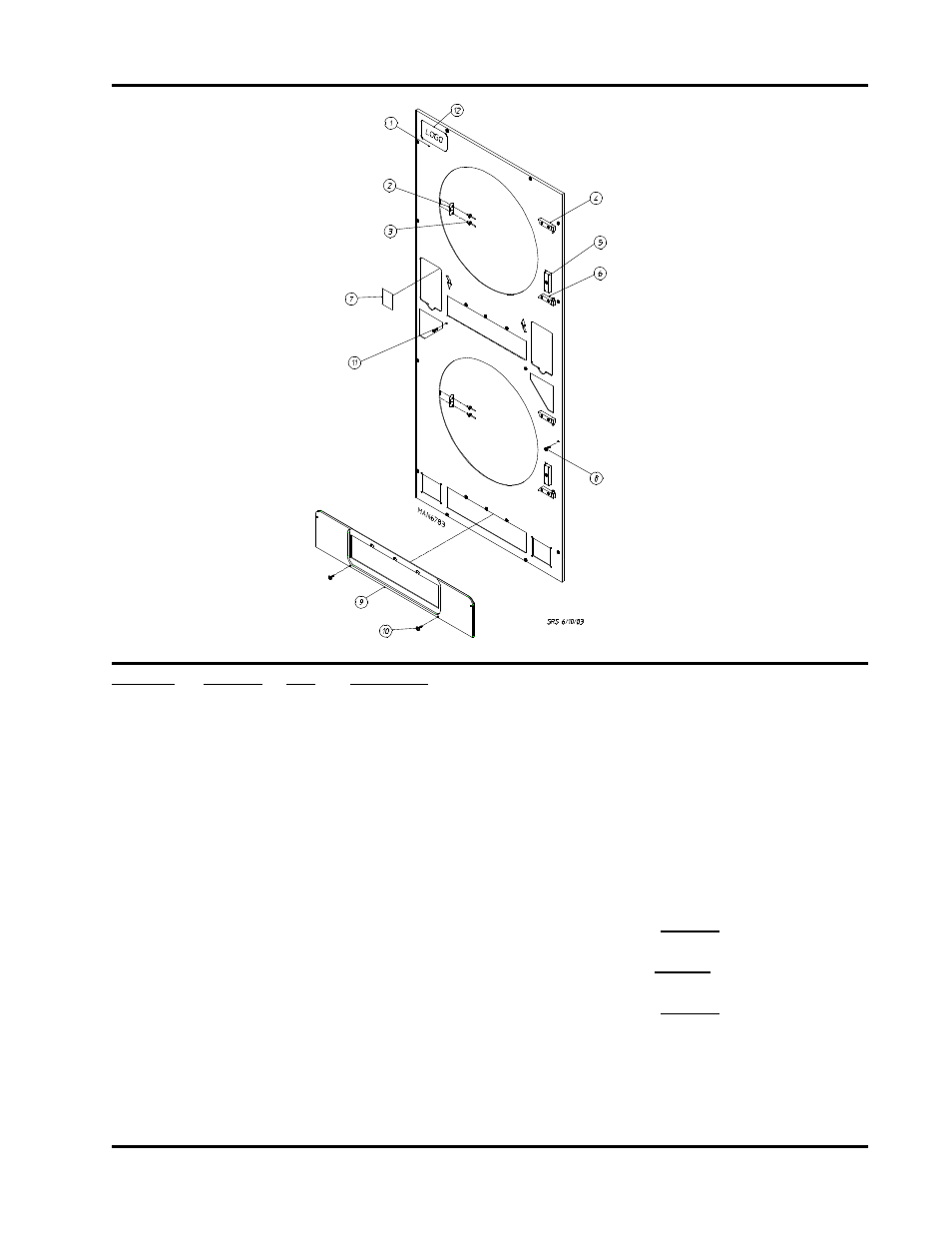

Front Panel Assembly
