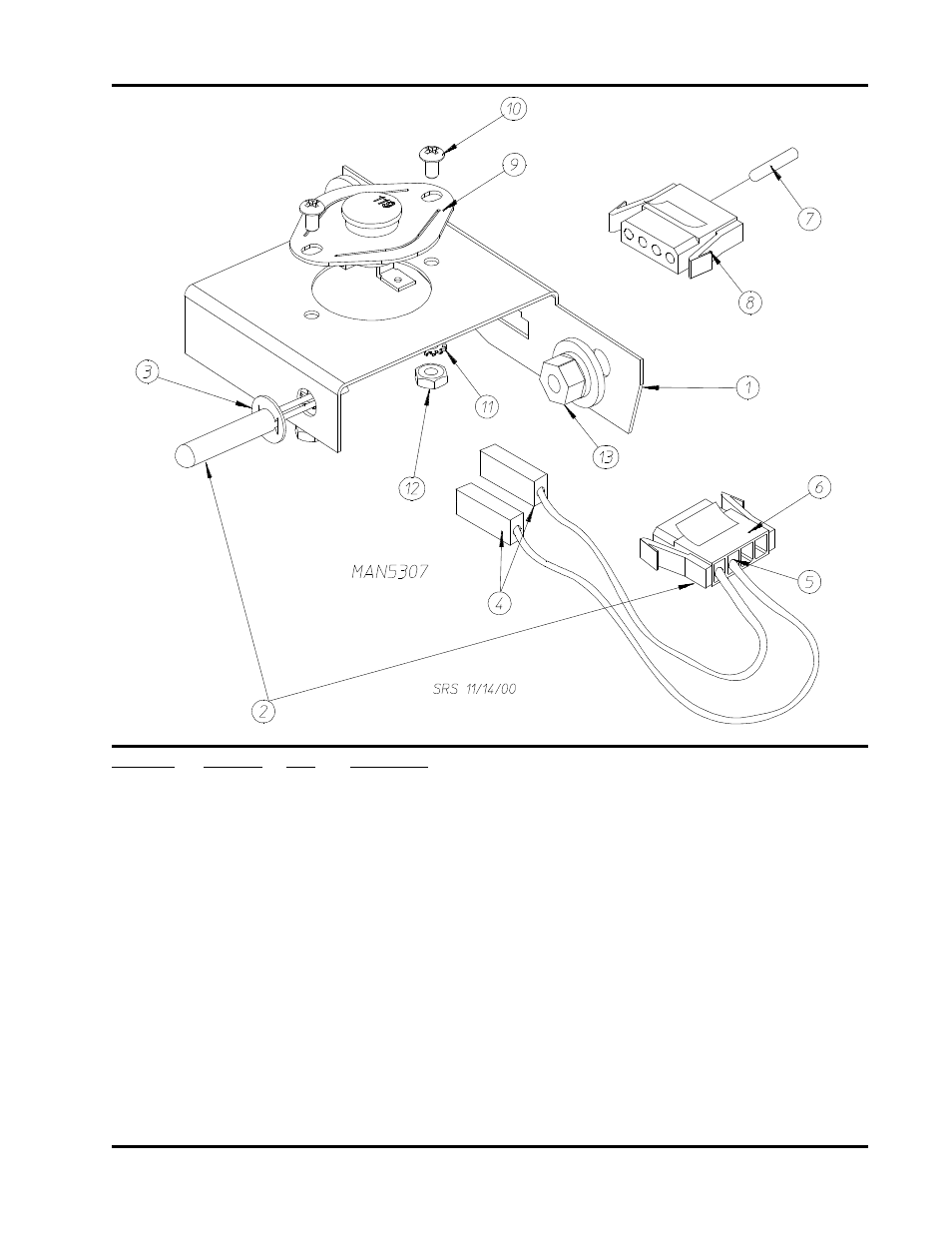

Microprocessor Temperature Sensor Bracket Assembly
Illus. No. Part No. Qty. Description
1 882682 1 Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 6 and 9 through 12)
354117 1 Sensor Bracket ONLY
2 883025 1 Microprocessor Temperature Sensor Probe Assembly Complete
(includes illus. nos. 2 through 6)
3 154007 1 1/4” Push On Fastener
4 121028 2 1/4” Terminal
5 122701 4 Socket Terminal ONLY
122801 Pins/Socket Extraction Tool
6 122605 1 4-Position Connector (female)
7 122700 4 Pin Terminal ONLY
8 122604 1 4-Position Connector (male)
9 130119 1 190° Automatic Thermostat
10 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
11 153010 2 #6 Star Washer
12 152013 2 #6-32 Hex Nut
13 152014 2 1/4-20 Free Spin Wash Nut
