Drive motor/motor mount assemblies – American Dryer Corp. AD-540 User Manual
Page 34
32
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No.
Part No.
Qty.
Description
1
154279
4
5/16-18 x 3/4” Carriage Bolt
2
154277
1
3/8” x 1/2” Shoulder Screw
3
154274
1
3/8-16 x 2” Long Spade Bolt
4
154276
1
1/4-20 x 5/16” x 5/8” Shoulder Bolt
5
157010
1
1-7/8” Extension Spring
6
100250
1
Idler Wheel
7
153002
4
5/16” Split Lock Washer
8
152004
4
5/16-18 Hex Nut
9
121350
1
Bronze Bushing
10
150508
4
3/8-16 x 3/4” Hex Head Machine Bolt
11
152005
2
3/8-16 Hex Nut
12
150600
1
3/8-16 x 1-1/2” Tap Bolt
13
153004
4
3/8” x 1” Flat Washer
14
153005
5
3/8” Split Lock Washer
15
153001
5
5/16” Flat Washer
16
882720
1
Motor Mount ONLY
17
882687
1
Drive Motor and Sheave Assembly ONLY
882997
1
Drive Motor Sheave ONLY
883069
1
Drive Motor Sheave With Setscrew
(for models mfd. as of March 14, 2001)
170733
*
Retaining Compound
18
882767
1
Idler Arm Assembly with Hardware
(includes illus. nos. 2, 6 through 10, 16 and 17)
882929
1
Idler Arm ONLY
*
As required.

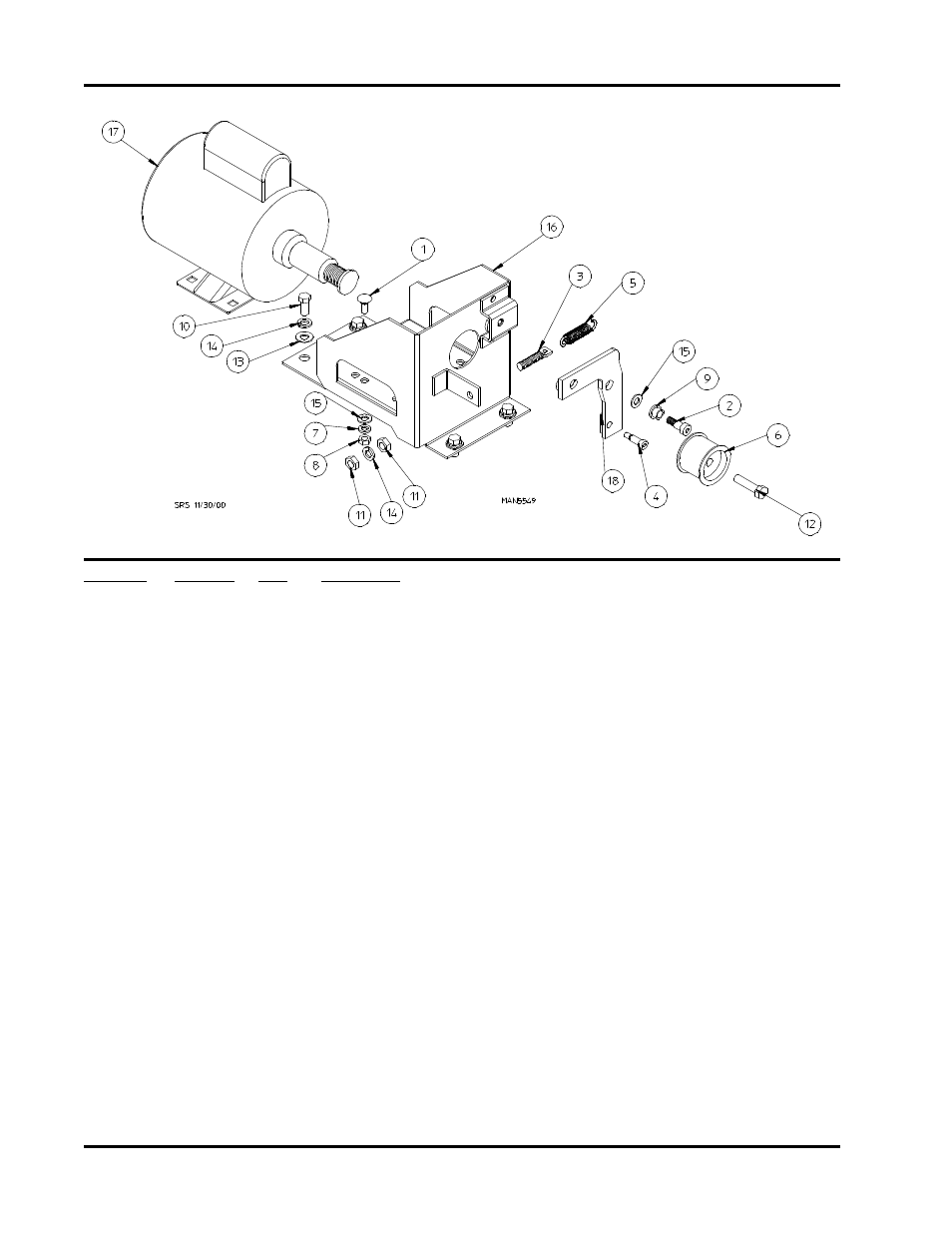

Drive Motor/Motor Mount Assemblies
