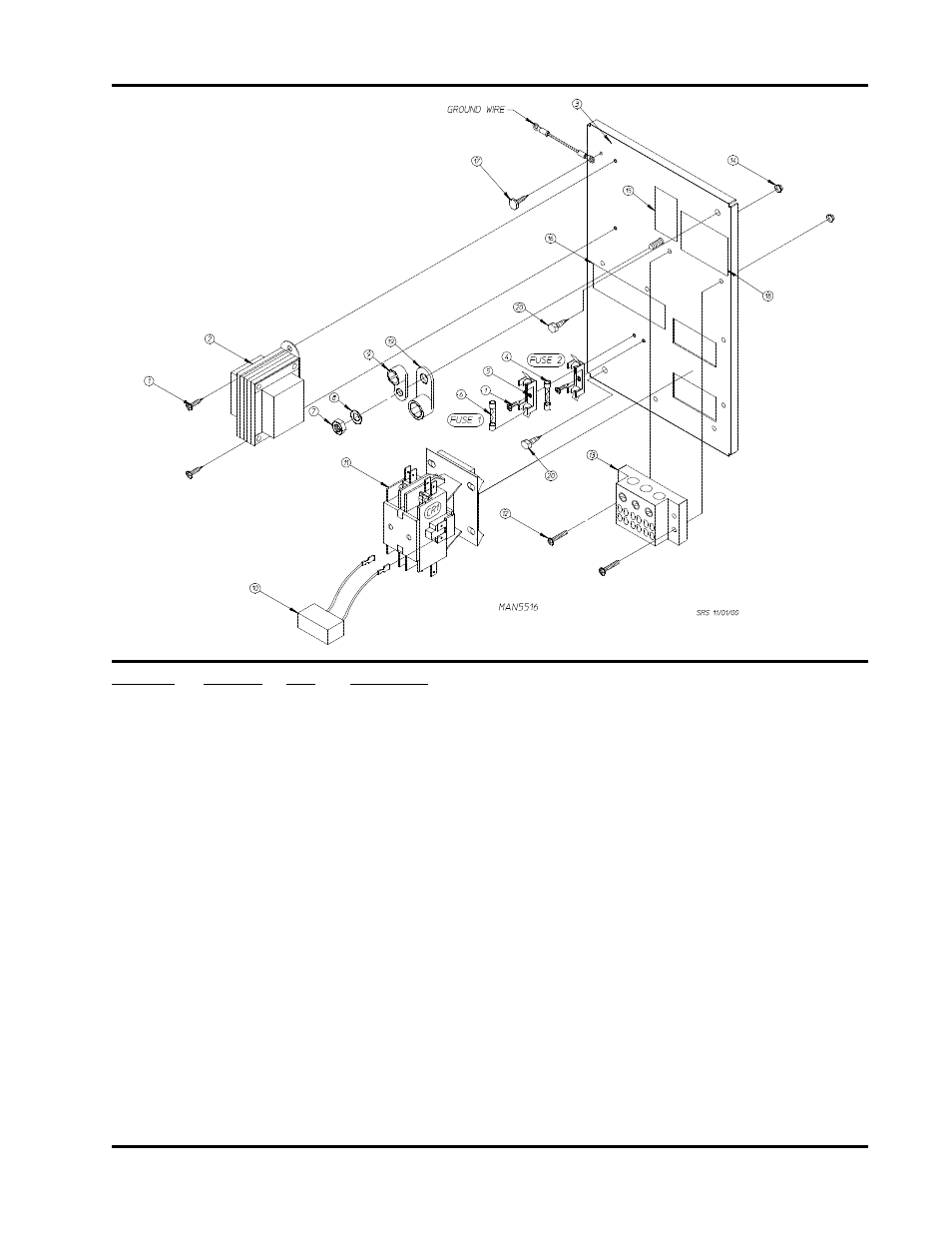

Rear Electrical Panel
Illus. No. Part No. Qty. Description
1 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
2 141403 1 Transformer - 24 VAC
881763 1 Termination Kit
3 882928 1 Rear Electrical Panel with Stud
4 136049 1 3/4-amp Slo-Blo Fuse (fuse 1)
5 136008 2 Fuse Holder
6 136106 1 2-amp Slo-Blo Fuse (fuse 2)
7 152002 1 1/4-20 Hex Nut
8 153021 1 1/4” Star Washer
9 121010 1 Ground Lug
10 824828 1 R.C. Network Assembly
11 132475 1 Double-Pole Contactor - 24 VAC
12 150103 2 #8-32 x 3/4” Phillips Round Head Screw
13 120714 1 Quick Connect Power Block
14 151001 2 #8-32 Pal Nut
15 112075 1 “Ground Here” Label
16 112025 1 “Caution” Label
17 150297 1 Green Ground Screw
18 114103 1 “Electric Service Connection” Label
19 121012 1 Ground Lug
20 150299 2 #10 x 1” Hex Washer TEK Screw
