Ryobi BTS10S - Manual (Page 24)

24
OPERATION
WARNING:
To reduce the risk of injury, always make sure the rip fence
is parallel to the blade before beginning any operation.
TO INSTALL THE RIP FENCE

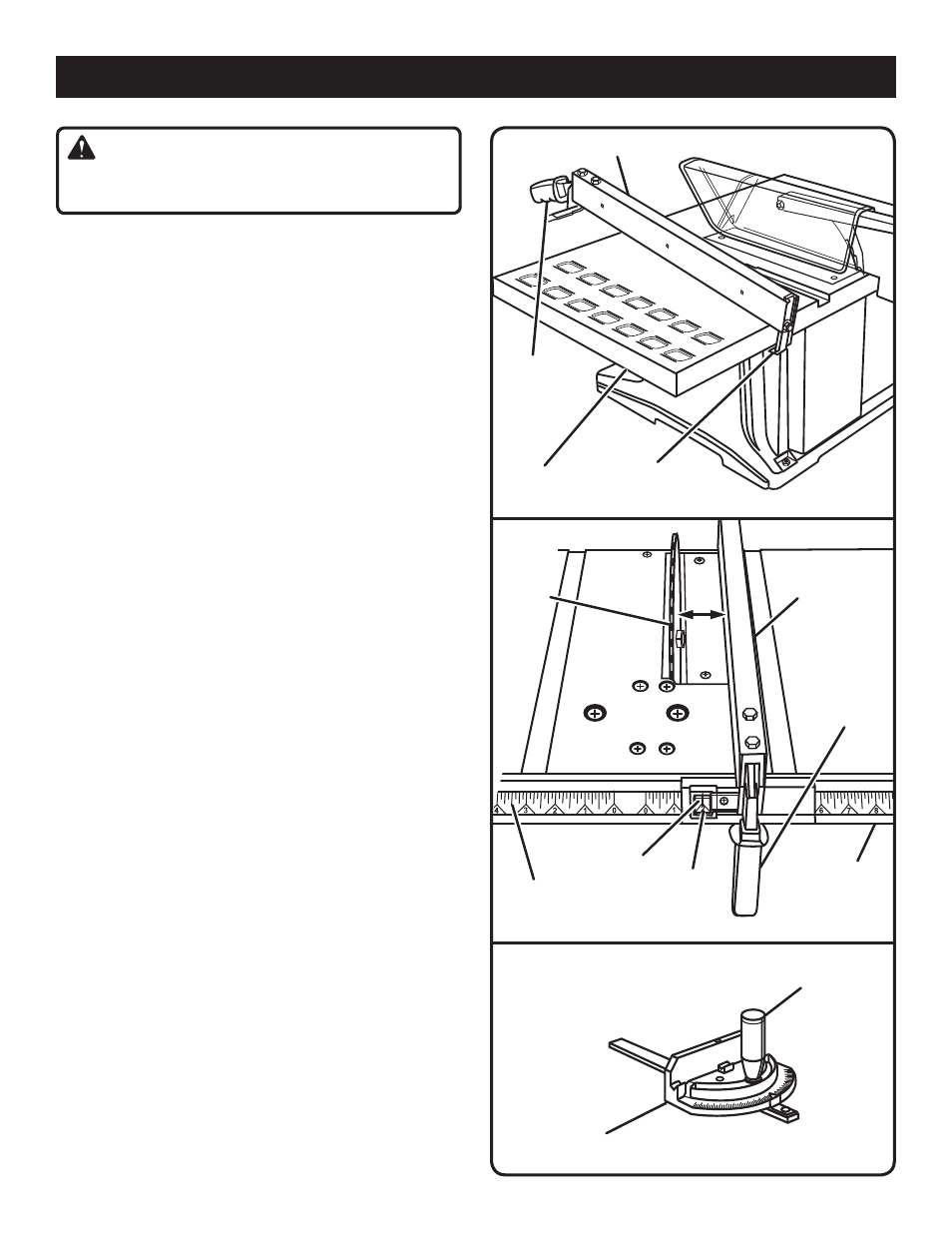

See Figure 22.
 Place the rear lip on the rear of the saw table and pull
slightly toward the front of the unit.
 Lower the front end of the rip fence onto the guide
surfaces on top of the front rail.
 Push the rip fence lever down to automatically align and
secure the fence. The trigger lock must engage.
Check for a smooth gliding action. If adjustments are needed,
see
To Check the Alignment of the Rip Fence to the Blade
in the Adjustment section of this manual.
TO SET THE RIP FENCE SCALE INDICATOR
TO THE BLADE
See Figure 23.
Use the following steps to set the rip fence scale indicator to
the blade: begin with the blade at a 0° angle (straight up).
 Unplug the saw.
 Loosen the rip fence by depressing the trigger lock and
lifting the locking handle.
 Using a framing square, set the rip fence 2 in. from the
blade tip edge.
 Loosen the screw for the scale indicator and align with
the 2 in. mark as shown.
 Retighten the screw.
TO USE THE MITER GAUGE
See Figure 24.
���The miter gauge provides greater accuracy in angled cuts.
For very close tolerances, test cuts are recommended.
There are two miter gauge channels, one on either side of
the blade. When making a 90° cross cut, you can use either
miter gauge channel. When making a beveled cross cut (the
blade tilted in relation to the table) the miter gauge should
be located in the slot on the right so that the blade is tilted
away from the miter gauge and your hands.
The miter gauge can be turned 60° to the right or left.
 Loosen the lock knob.
 With the miter gauge in the miter gauge slot, rotate the
gauge until the desired angle is reached on the scale.
 Retighten the lock knob.
FRONT
RAIL
LOCKING
HANDLE
BLADE
RIP
FENCE
2 in.
MARK
SCALE
SCALE
INDICATOR
2 in.
Fig. 22
Fig. 23
REAR LIP
RIP FENCE
RIP FENCE
LEVER
SAW TABLE
Fig. 24
LOCK
KNOB
MITER
GAUGE
