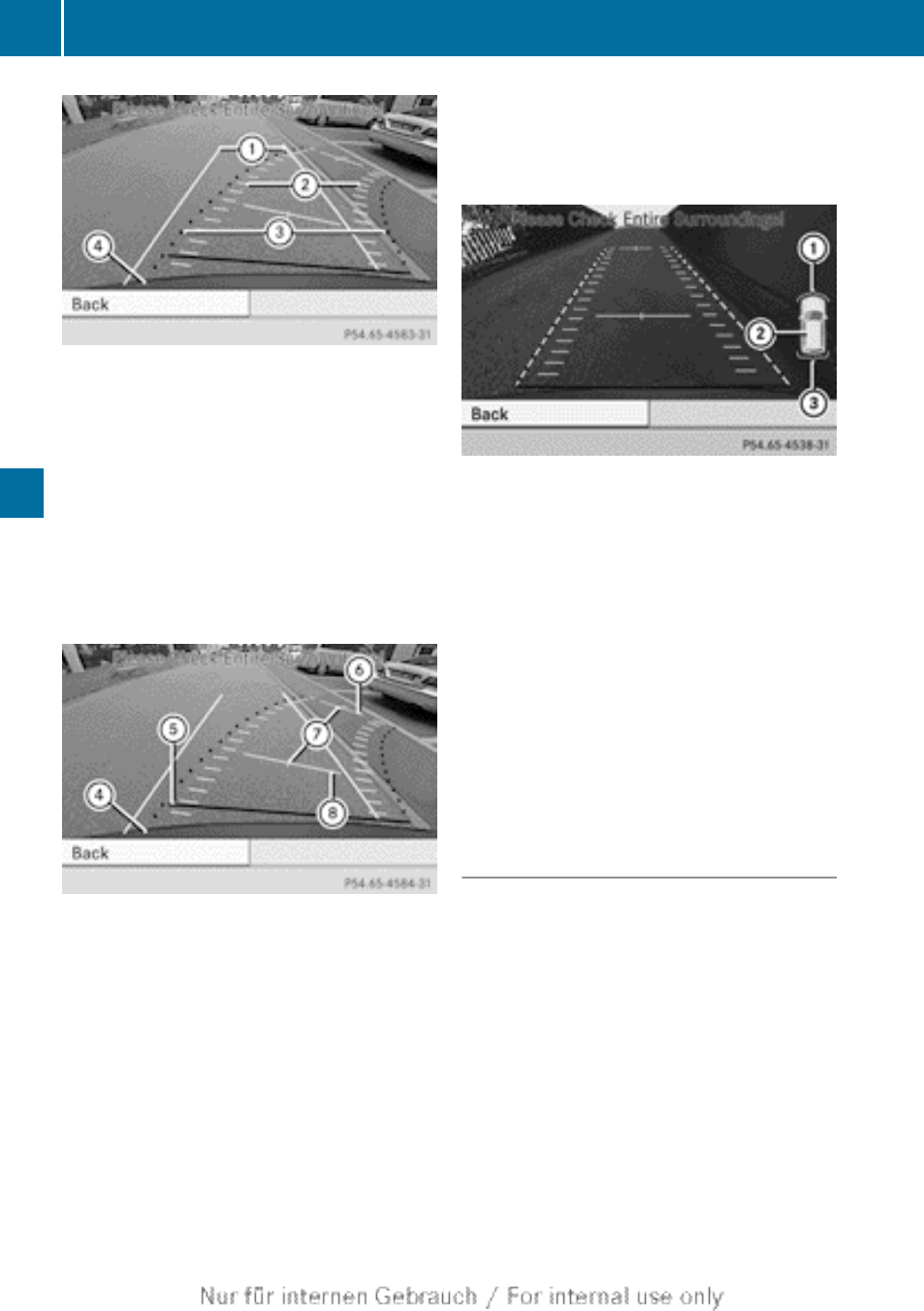

Lanes
:
White guide line without turning the
steering wheel, vehicle width including
the exterior mirrors (static)
;
Yellow lane marking tires at current
steering wheel angle, vehicle width to the
outer side of the wheels (dynamic)
=
Red guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
?
Bumper
Guide lines
?
Bumper
A
Red guide line at a distance of
approximately 10 in (0.25 m) from the
rear of the vehicle
B
Yellow guide line at a distance of
approximately 13 ft (4.0 m) from the rear
of the vehicle
C
Vehicle center axle (marker assistance)
D
Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
The lanes and guide lines are only displayed
if you have engaged reverse gear.
The distance specifications only apply to
objects that are at ground level.
Additional displays on vehicles with PARKTRONIC
and COMAND
:
Front warning display
;
Additional PARKTRONIC measurement
operational readiness indicator
=
Rear warning display
Vehicles with PARKTRONIC and
COMAND: if PARKTRONIC is operational
( Y page 169), an additional operational
readiness indicator will appear in COMAND
display ;.If the PARKTRONIC warning
displays are active or light up, warning
displays : and = are also active or light up
correspondingly in the COMAND display.
Reverse parking function
X Make sure that the rear view camera is
activated and the "Reverse parking"
function is selected; see the separate
operating instructions for the audio
system/COMAND.
The lane and the guide lines are shown.
