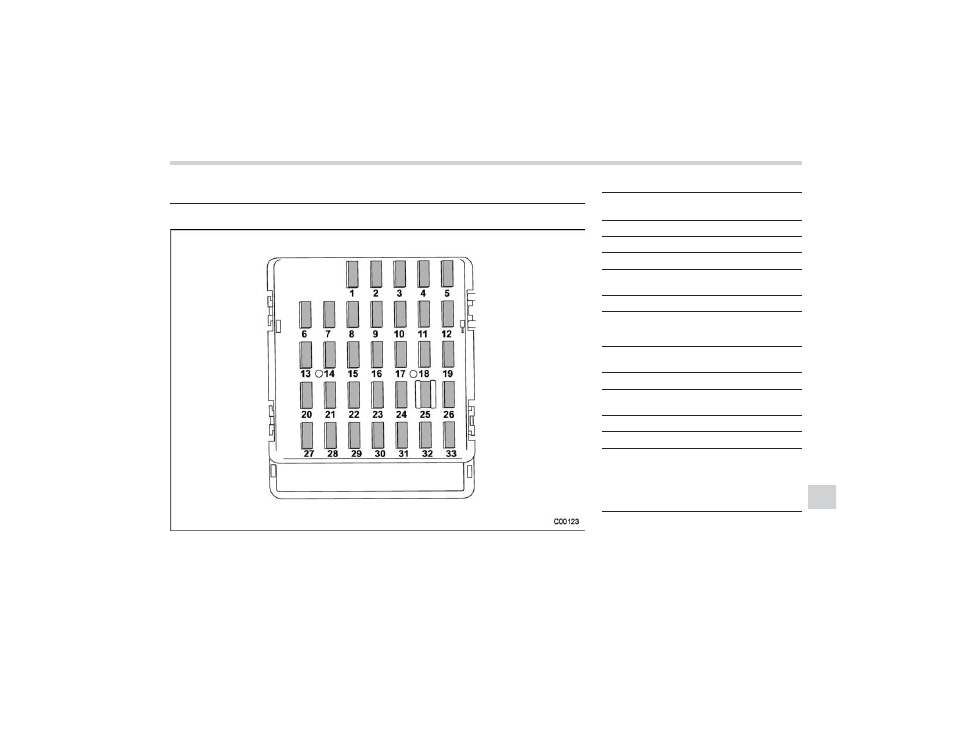

Fuses and circuits
& Fuse panel located in the passenger compartment
Fuse
panel
Fuse
rating
Circuit
1
20A
. Trailer hitch connector
2
Empty
3
15A
. Door locking
4
7.5A
. Front wiper deicer relay
. Moonroof
5
7.5A
. Combination meter
6
7.5A
. Remote control rear
view mirrors
. Seat heater relay
7
15A
. Combination meter
. Integrated unit
8
15A
. Stop light
9
20A
. Mirror heater
. Front wiper deicer
10
7.5A
. Power supply (battery)
11
7.5A
. Turn signal unit
12
15A
. Automatic transmission
unit
. SRS airbag system
(sub)
. Engine control unit
. Integrated unit
