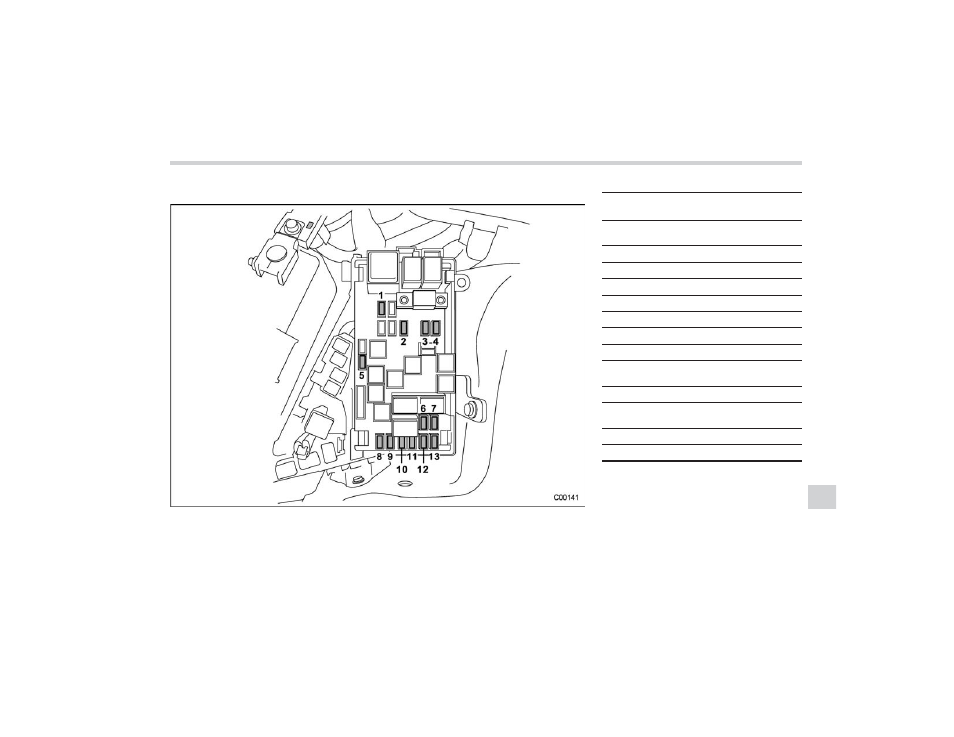

& Fuse panel located in the engine compartment
Fuse
panel
Fuse
rating
Circuit
1
30A
. Vehicle dynamics control
unit
2
20A
. Console socket
3
15A
. Headlight (right side)
4
15A
. Headlight (left side)
5
20A
. Backup
6
15A
. Horn
7
25A
. Rear window defogger
8
15A
. Fuel pump
9
15A
. Automatic transmission
control unit
10
7.5A
. Engine control unit
11
15A
. Turn and hazard warning
flasher
12
20A
. Parking switch
13
7.5A
. Alternator
Specifications
