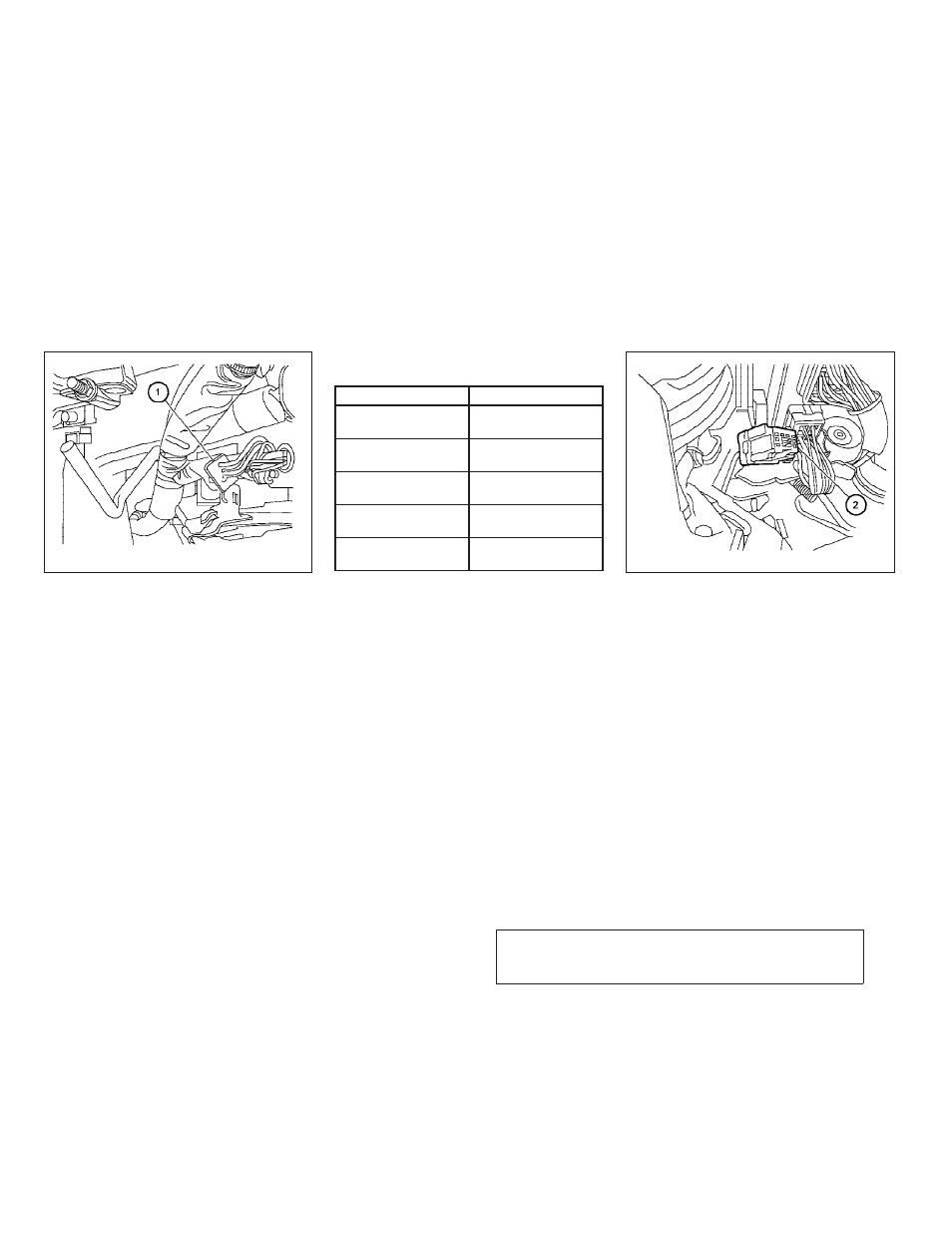

3. Locate the jumper harness connector under
the lower portion of the instrument panel.
The connector is taped to the wiring harness
᭺
1
as indicated.
● The connector is marked with a white tag
with “electric brake connector”.
Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR
NOTE
RED/GREEN
Vehicle stop lamp switch
to trailer brake controller.
BLACK
Brake controller ground
(-).
BROWN/WHITE
Trailer brake controller
switched output.
RED/BLUE
Trailer brake controller
illumination.
RED
Fused trailer brake con-
troller battery feed (B+).
4. Peel off the tape and connect the jumper
harness to the connector
᭺
2
.
5. Release the parking brake.
6. Install the aftermarket electric trailer brake
controller according to the manufacturer’s
instructions.
LTI0115
LTI0116
Technical and consumer information
9-37
