14
Rev. A
920-0086
TSM17P Hardware Manual

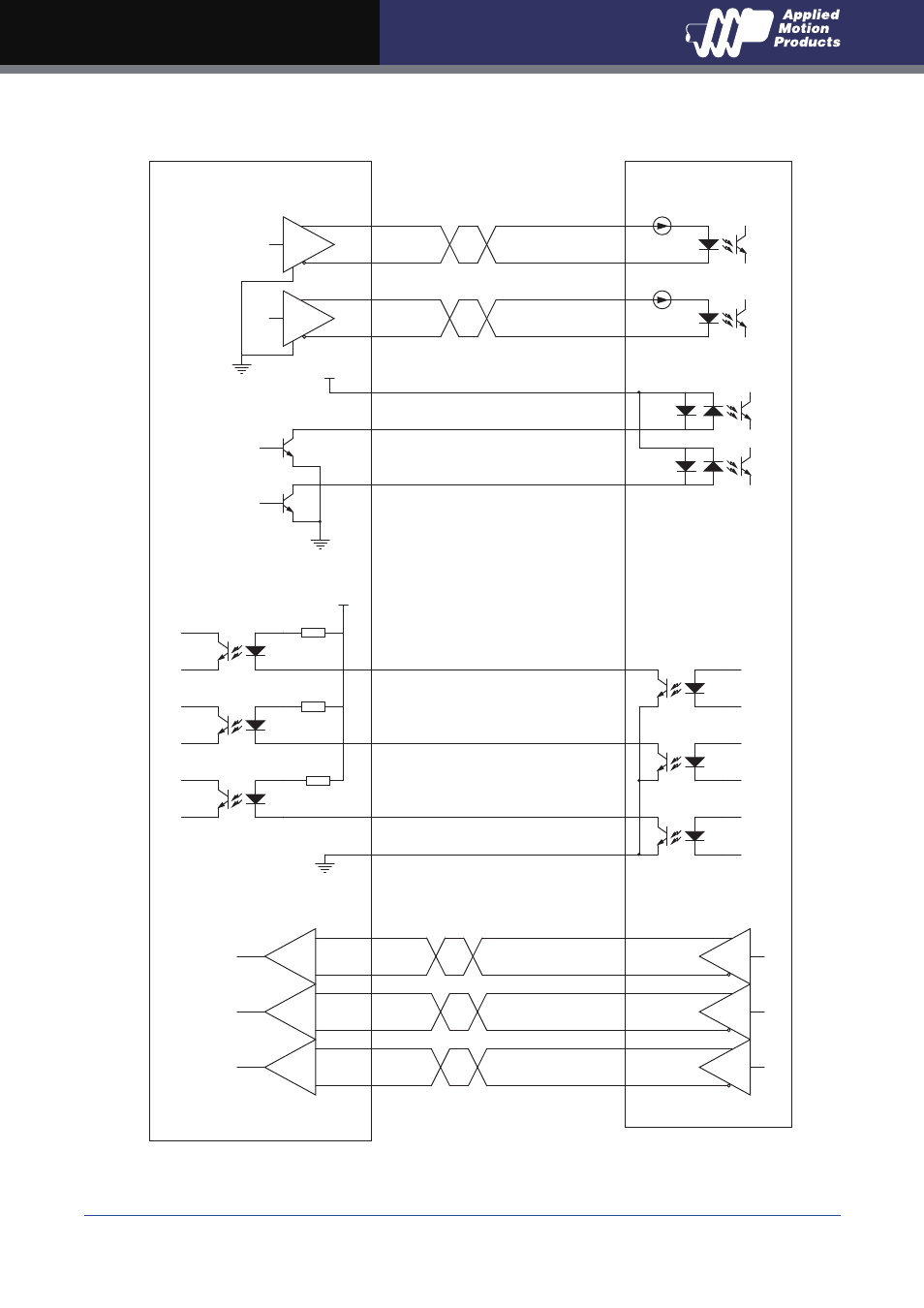

Drives User Control
1 X1/STEP+
2 X1/STEP-
3 X2/DIR+
4 X2/DIR-
9 XCOM
5-24VDC
0VDC
0VDC
0VDC
Under 30V
5 X3/SERVO ON
6 X4/ALARM RESET
17 Y1/ALARM
18 Y2/IN POSITION
19 Y3/BRAKE
20 YCOM
23 ENC Z+
24 ENC Z-
25 ENC B+
26 ENC B-
27 ENC A+
28 ENC A-
