19
Rev. A
920-0086
TSM17P Hardware Manual
5 Reference Materials

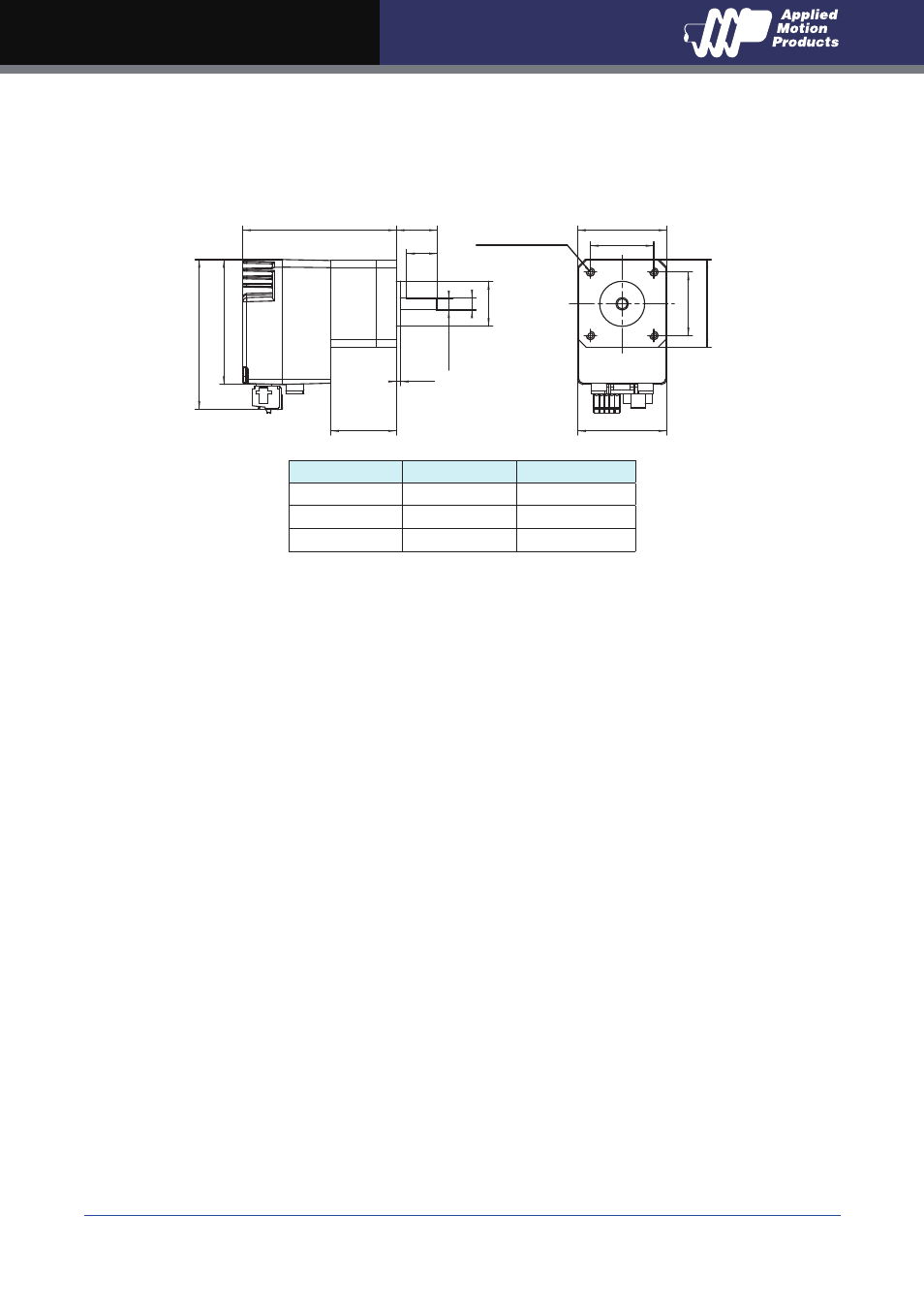

5.1 Mechanical Outlines
Model Length”L” Length”M”
TSM17P-1AG 69.5 26.6
TSM17P-2AG 75 32.1
TSM17P-3AG 83.5 40.6
L±1 20
15
2
Ø22
M
5.5 Flat
Ø6
31
31
42.3 Max.
42.3 Max.
43.5
74
61
4-M3 x 4.5 MIN DEEP
