3-1
P/N: 4809628
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
05JUN03 v2.1 MusGT(4809628 v2.1)
Section 3
FAN RESISTOR RELOCATION
3.1 FAN RESISTOR RELOCATION
A. Disconnect the wiring harness from the fan
resistor. (See Fig. 3-a.) Remove clips hold-
ing the fan resistor to the fan shroud. Attach
the fan resistor to the supplied bracket using
the supplied hardware.

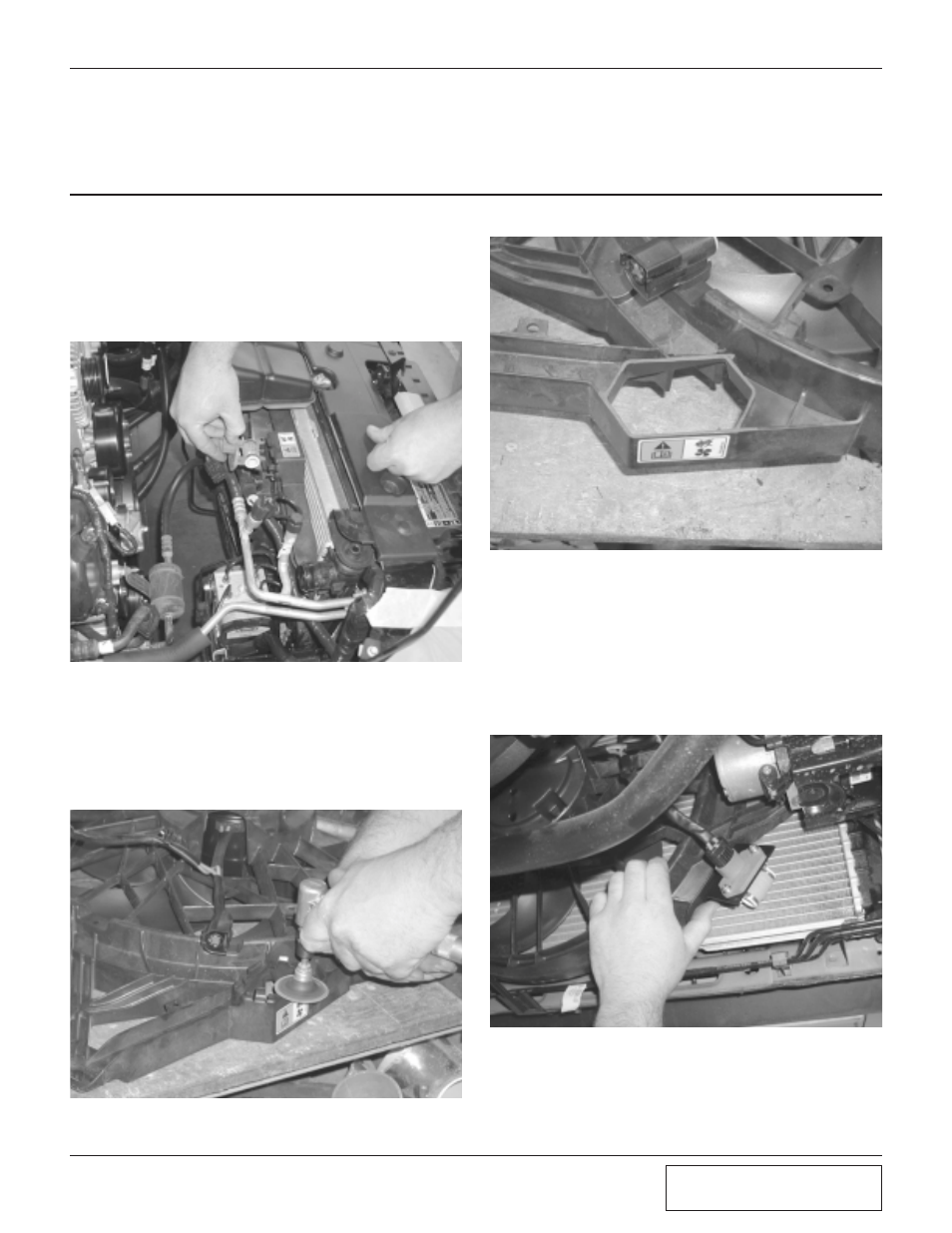

Fig. 3-a
B. Trim the fan resistor mounting tabs on the
fan shroud to provide clearance for the air
intake assembly.(See Fig. 3-b.) The fan
shroud should look like this after trim-
ming.(See Fig. 3-c.)
Fig. 3-b
Fig. 3-c
C. Re-attach the fan resistor to the wiring har-
ness to ensure adequate wire length. (See
Fig. 3-d.) Position the fan bracket on the
passenger side of the lower fan shroud.
Mark two mounting points along the fan
shroud and drill the holes. Attach the mount-
ing bracket with the supplied hardware.
Fig. 3-d
