Section 2
SUPERCHARGER MOUNTING BRACKET ATTACHMENT
2.1 SUPERCHARGER MOUNTING BRACKET ATTACHMENT

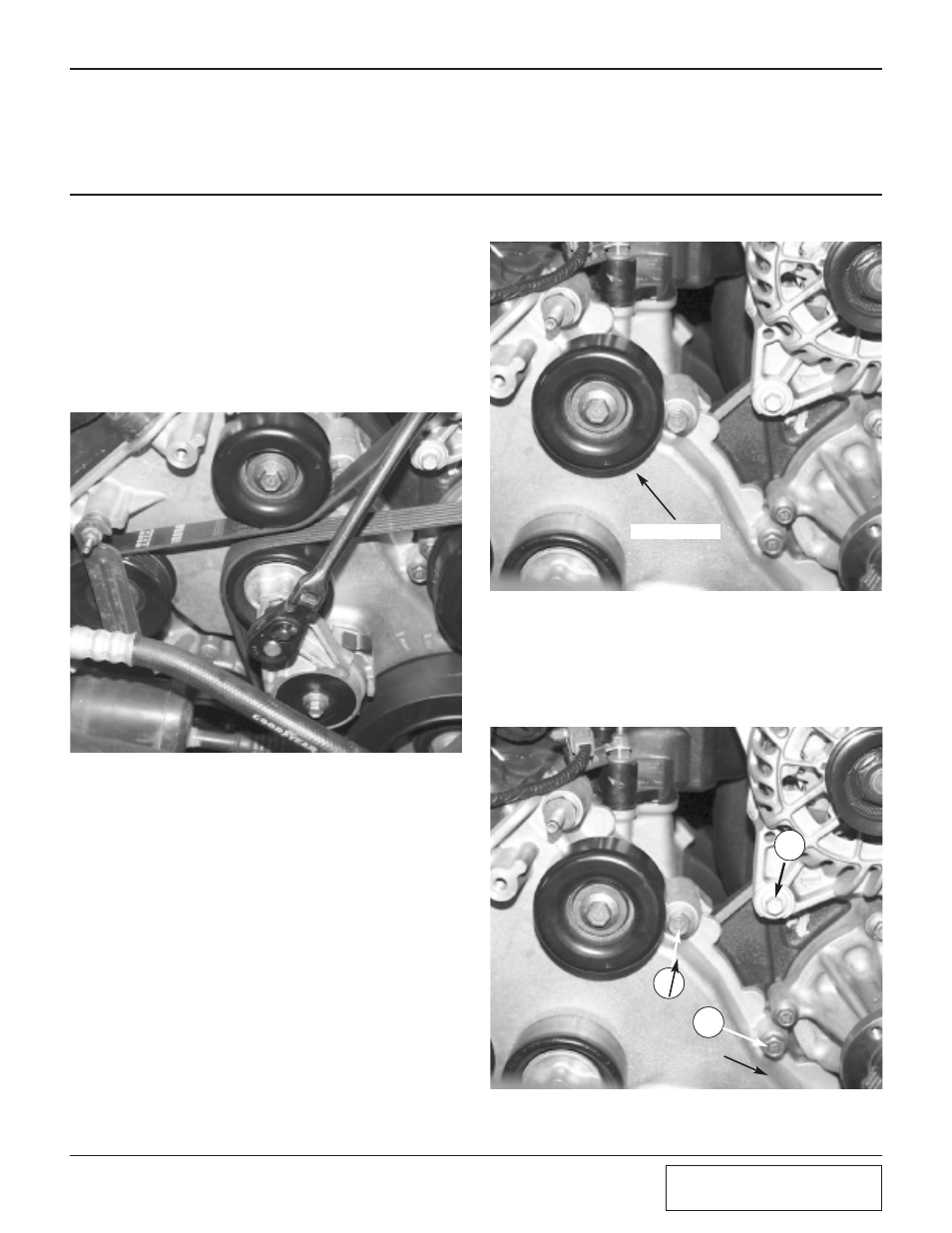

Fig. 2-a
A. Loosen (but do not remove) the four 10 mm
head bolts securing the water pump pulley.
Next, remove the accessory drive belt using
a 3/8-inch drive ratchet or breaker bar into
the square at the end of the tensioner, and
rotate the tensioner clockwise. This will
relieve the tension on the belt so it can be
removed. It will not be re-used. (See
Fig. 2-a.)
B. Use a 13 mm socket to remove the idler pul-
ley, located above the belt tensioner (see Fig
2-b). Place the pulley aside to be used in a
later step. Now, you may finish removing
the four 10mm bolts securing the water
pump pulley, and place the pulley and its
fasteners aside for use in a later step.
IDLER PULLEY
Fig. 2-b
C. Next, remove three bolts at the front of the
engine (see Fig 2-c). A 10mm alternator
mounting bolt (A), and two 13 mm timing
cover bolts (B and C).
Fig. 2-c
C
B
A
