Tools Menu
Zilog Developer Studio II – Z8 Encore!
User Manual
139
2. Click the
Editor
tab.
3. Select a file type from the
File Type
drop-down list box, in which you can select C
files, assembly files, or other files and windows.
4. In the
Tabs
area, perform the following tasks:
–
Use the
Tab Size
field to change the number of spaces that a tab indents code.
–
Select the
Insert Spaces
button or the
Keep Tabs
button to indicate how to for-
mat indented lines.
–
Select the
Auto Indent
checkbox if you want the IDE to automatically add inden-
tation to your files.
5. The syntax style of each file type can have its own configuration for background, fore-
ground and font. Select an item in the
Syntax Style:
drop-down list box.

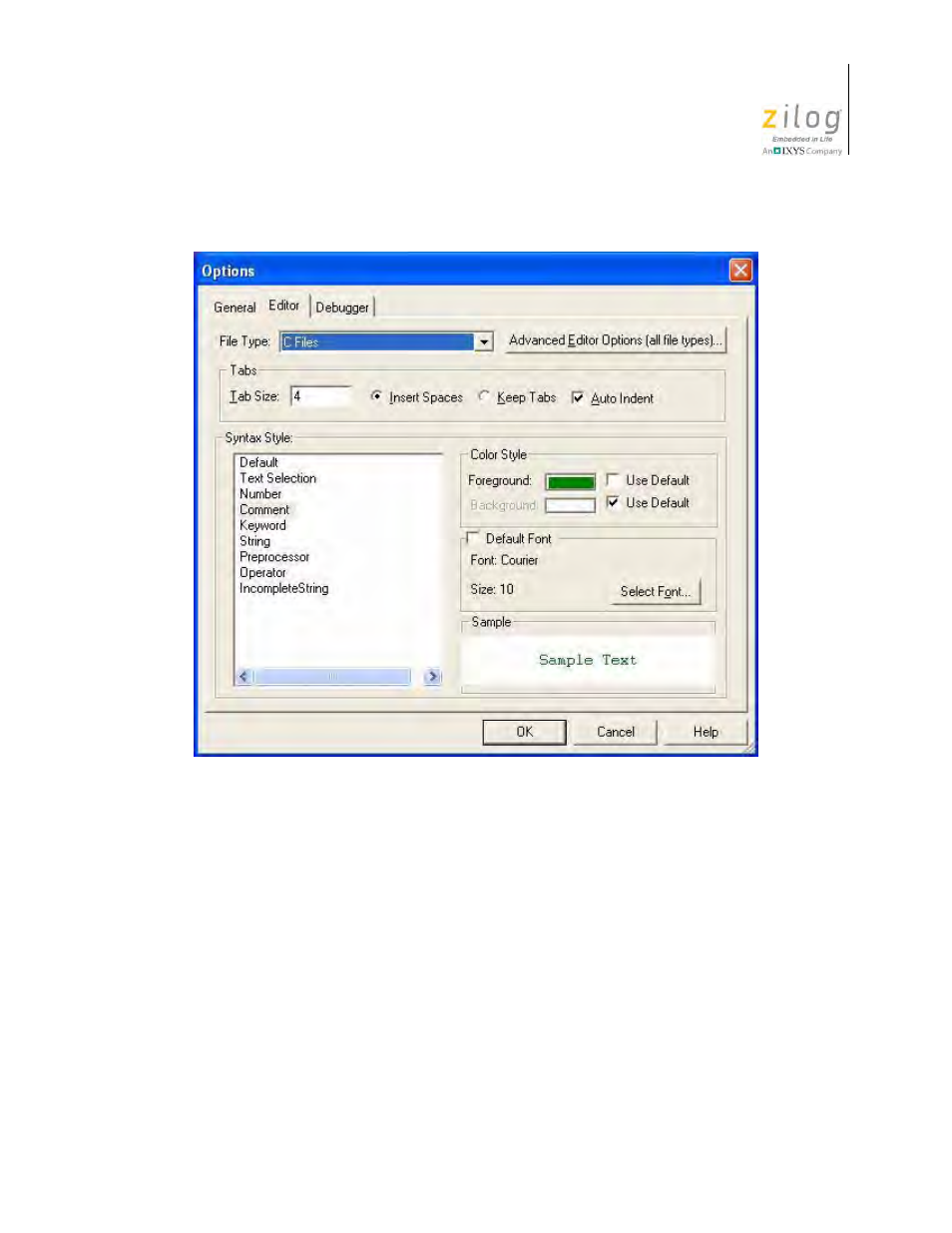

Figure 90. Options Dialog Box, Editor Tab
