User Manual
196 i Series / iX Series
Start - Class 3
Determine appropriate test
configuration
Perform 8.2.1 Test
"Harmonic combination"
Flatcurve and Overswing
Any functional
anomalies?
Any functional
anomalies?
Any functional
anomalies?
Any functional
anomalies?
Test Completed
FAIL
Record Results
Test Completed
PASS
Record Results
Yes
Perform 8.2.2 Test
"Frequency Sweep"
Perform 8.2.4 Test
"Meister Curve"
Perform 8.2.3 Test
"Individual Harmonics/
Interharmonics"
Yes
Yes
Yes
No
No
Any functional
anomalies?
Yes
Perform 8.2.3 Test
Only table 1. Odd
non-multiple of
3 harmonics
No
No

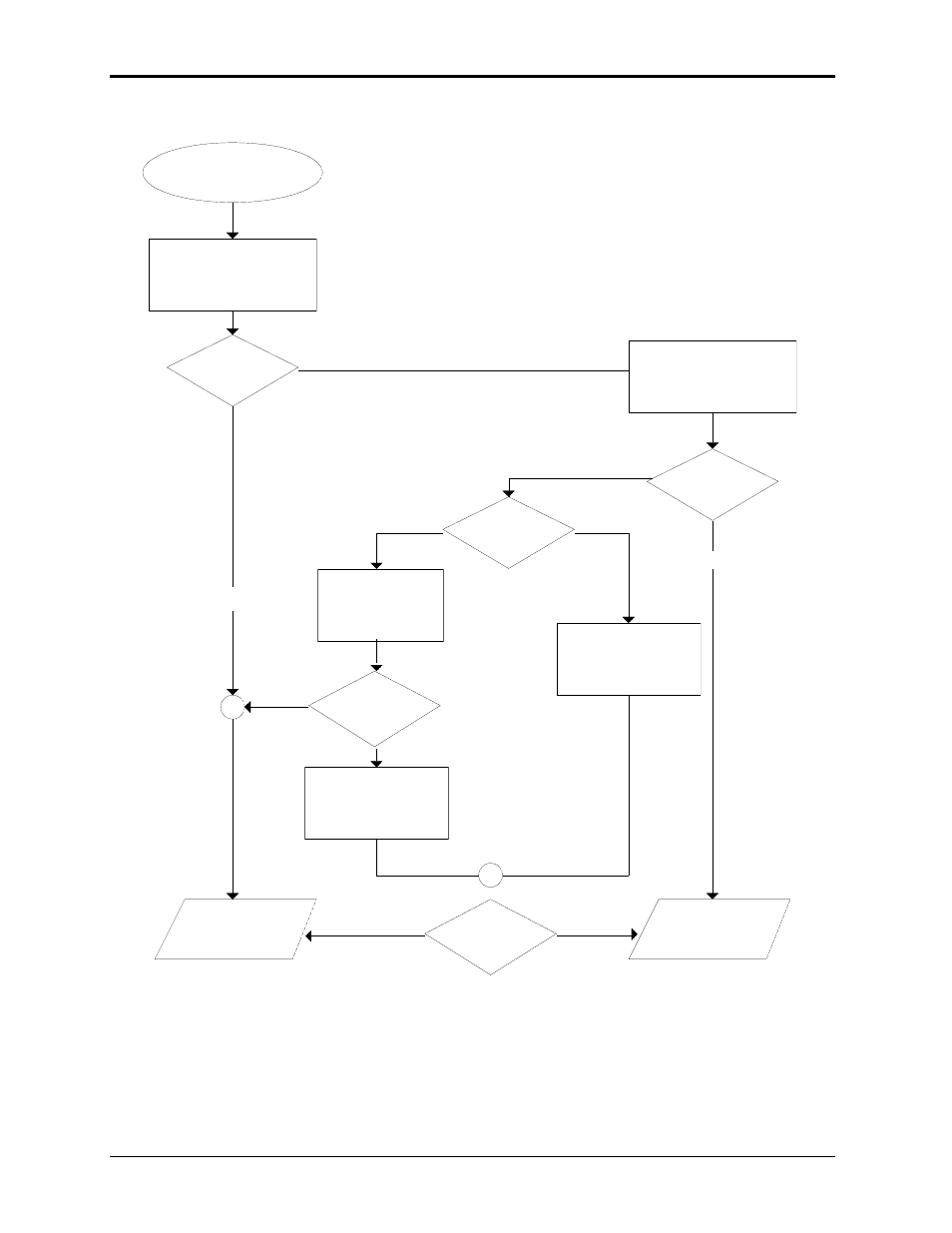

Figure 9-33: IEC 61000-4-13 Test Flowchart Class 3
