DFI HR100-CRM - Manual (Page 40)

40
2
Hardware Installation
I/O Connectors

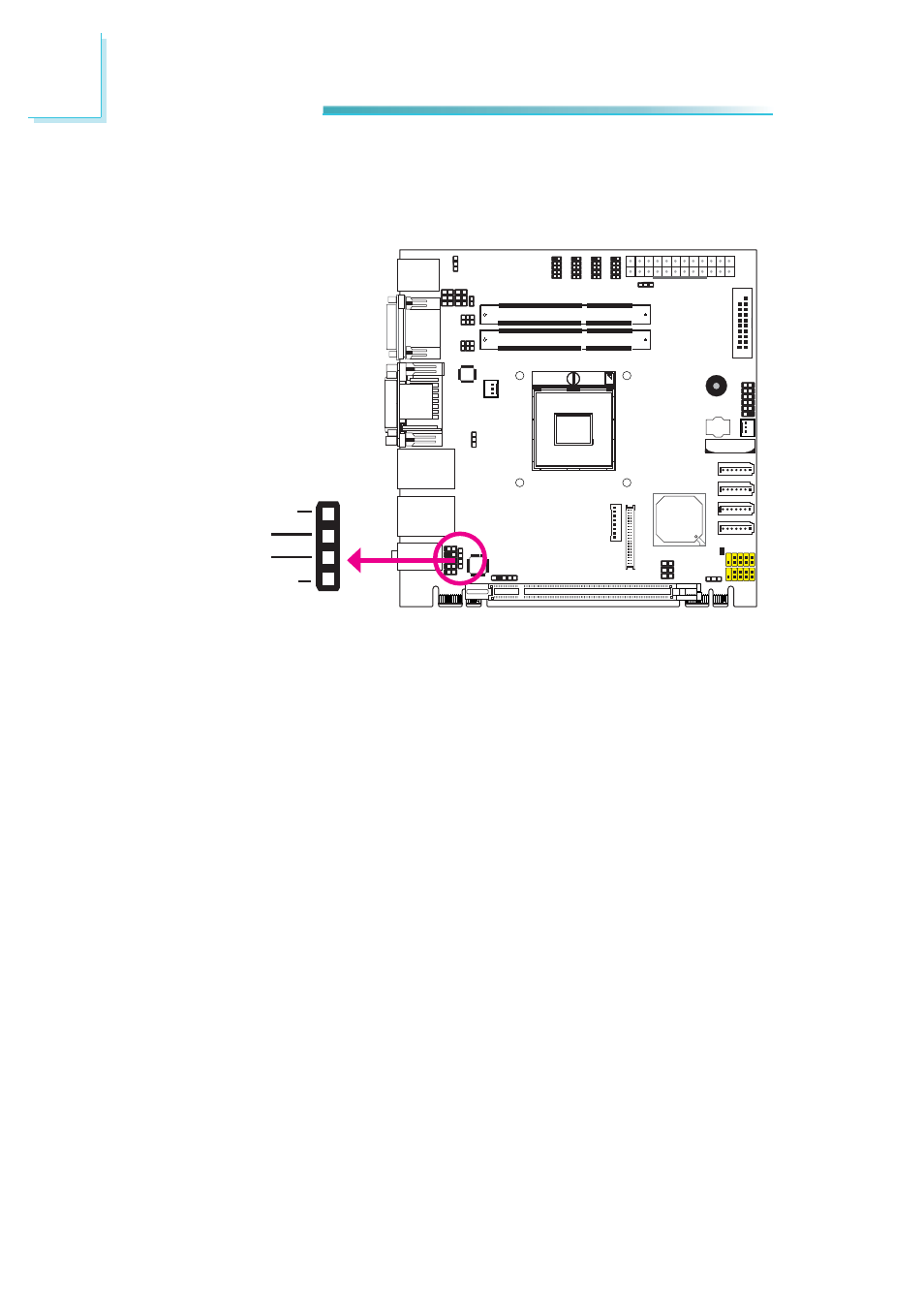

CD-in Internal Audio Connector
The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or
MPEG card.
Right audio
channel
Left audio
channel
Ground
Ground
1
4
