Chapter 1 Product Introduction
4
15. FAN2 Connector
16. DDR3 DIMM Slots
17. FDD Connector
18. 24-pin ATX Power Connector
19. DDR2 DIMM Slots
20. CPU_FAN Connector
21. North Bridge: Intel
®
P35 Chipset
22. LGA 775 CPU Socket
23. 8-pin ATX_12V Power Connector
24. FAN1 Connector
25. NB_FAN Connector
26. PCI Express x1 Slots
27. PCI Express x16 Slots
28. PCI Slots
1. Front Audio Connector
2. CD_IN Connector
3. SPDIF-OUT1 Connector(optional)
4. F_1394 Connector(optional)
5. SYS-FAN
6. SPI Connector(optional)
7. Speaker Connector(optional)
8. USB Connectors
9. Front Panel Connector
10. SATA II Connectors
11. CLR-CMOS Jumper
12. South Bridge: Intel
®
ICH9R Chipset
13. IDE Connector:PIDE
14. IR Connector
NOTE:
The above motherboard layout is provided for reference only,
please refer to the physical motherboard.
3
23
11
14
19
5
4

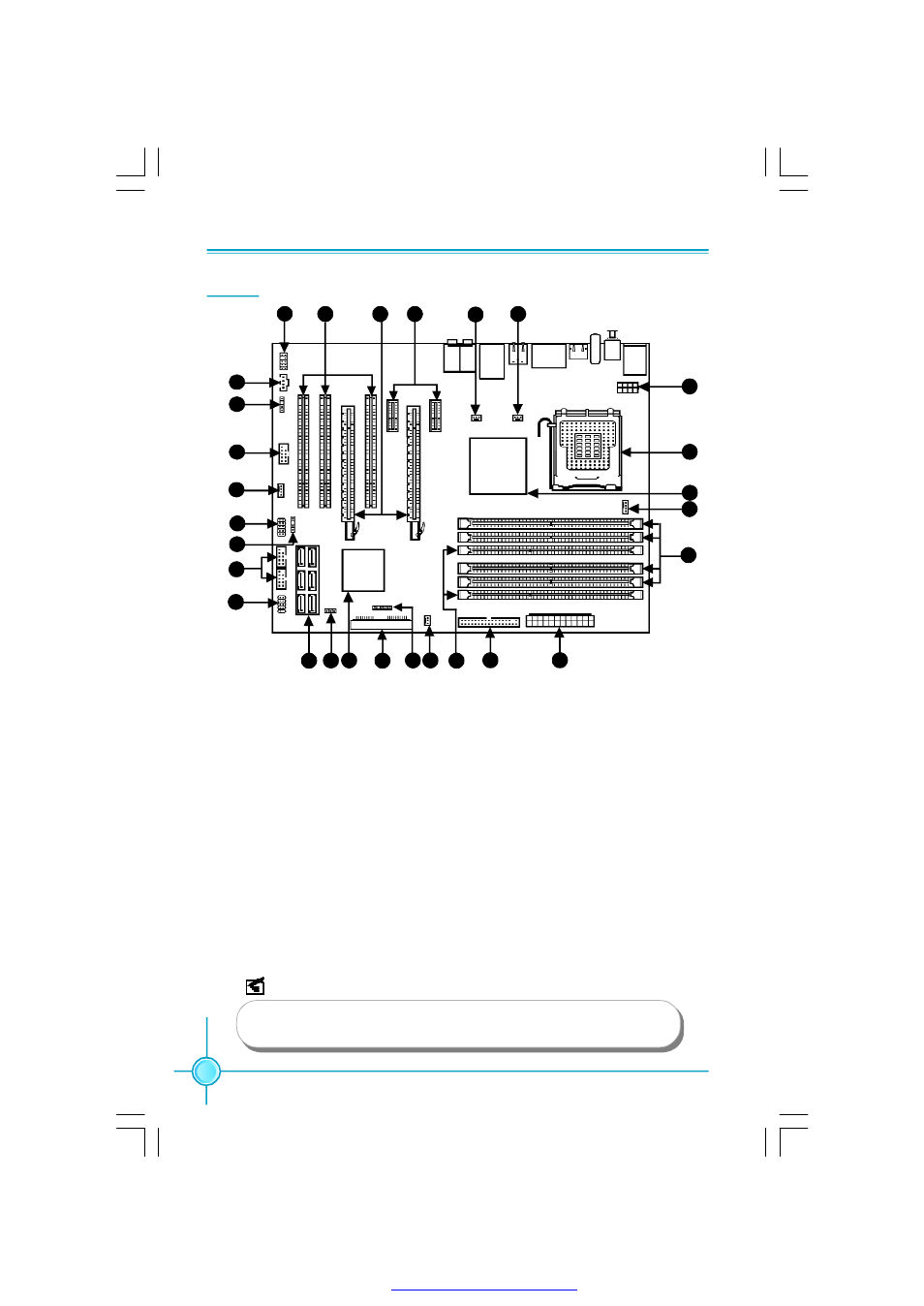

Layout
