Chapter 3 BIOS Description
31
6. PnP/PCI Configurations

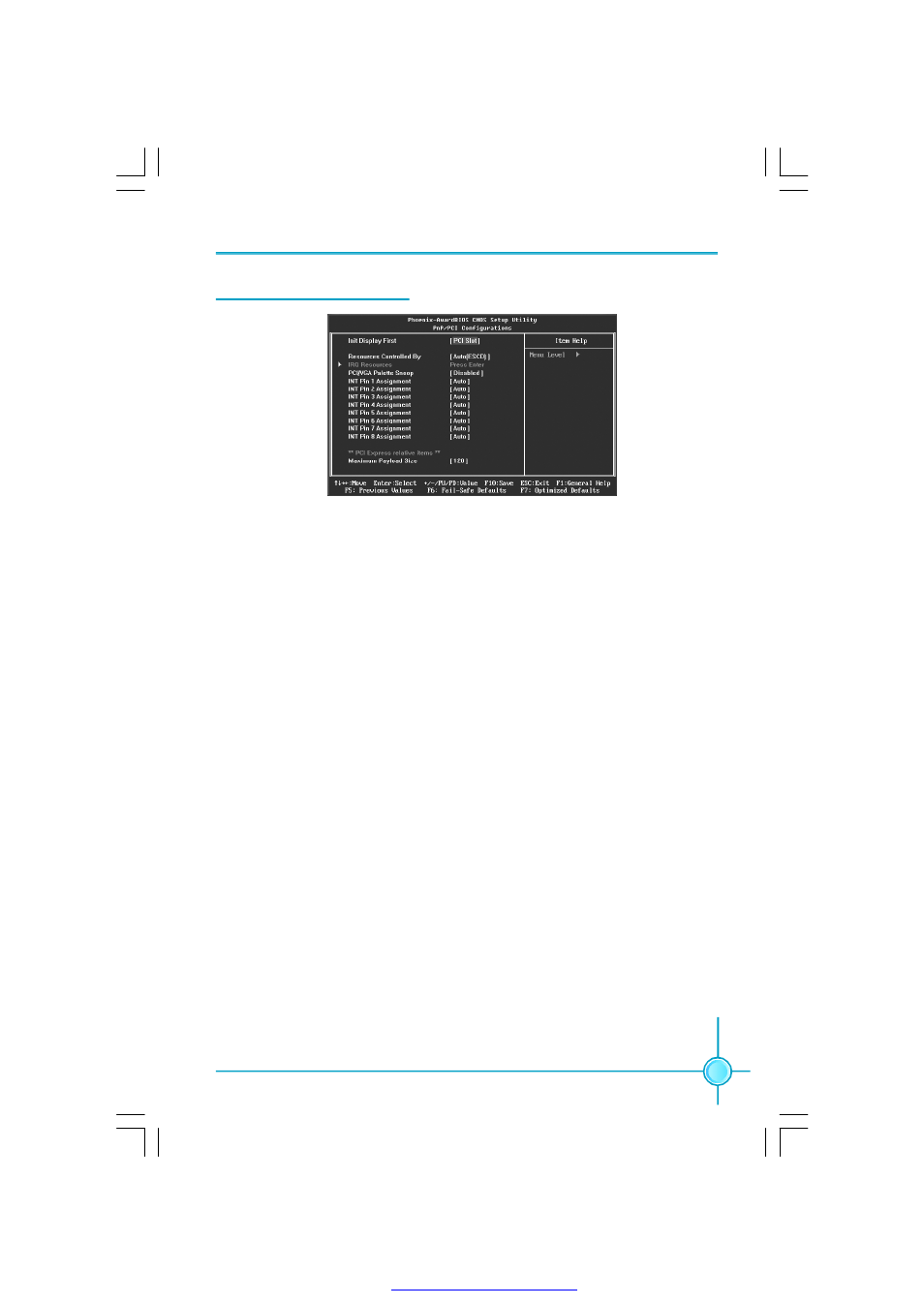

PnP/PCI Configurations Menu
6.1
Init Display First
This item is used to set which display device will be used first when your PC
starts up.Setting values:[PCI Slot]; [PCIEx].
6.2
Resources Controlled By
This item is used to define the system resource control scheme. If all cards
you use support PnP, then select [Auto] and the BIOS will automatically dis-
tribute interruption resources. If the ISA cards you installed not supporting
PnP, you will need to select [Manual] and manually adjust interruption
resources in the event of hardware conflicts. However, since this motherboard
has no ISA slot ,this option does not apply.
6.3
IRQ Resources
Press the <Enter> key, then manually set IRQ resources.
6.4
PCI/VGA Palette Snoop
If you use a non-standard VGA card, use this option to solve graphic accelera-
tion card or MPEG audio card problems (e.g., colors not accurately displayed).
6.5
INT Pin 1/2/3/4/5/6/7/8 Assignment
Use this item to assignment IRQ resources for INT Pin 1/2/3/4/5/6/7/8.
6.6
PCI Express relative items
Maximum Payload Size
This item is used to set maximum TLP payload size for PCI Express devices.
The unit is byte.
