Chapter 2 Installation Instructions
10
Installation of the Memory
1. There is only one gap near the center of the DIMM slot, and the memory
module can be fixed in one direction only. Unlock a DIMM slot by pressing the
module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically
into the DIMM slot.
Warning:
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, especially the memory
devices, otherwise your motherboard or the system memory might
be seriously damaged.
3. The plastic clips at both sides of the DIMM slot will lock automatically.

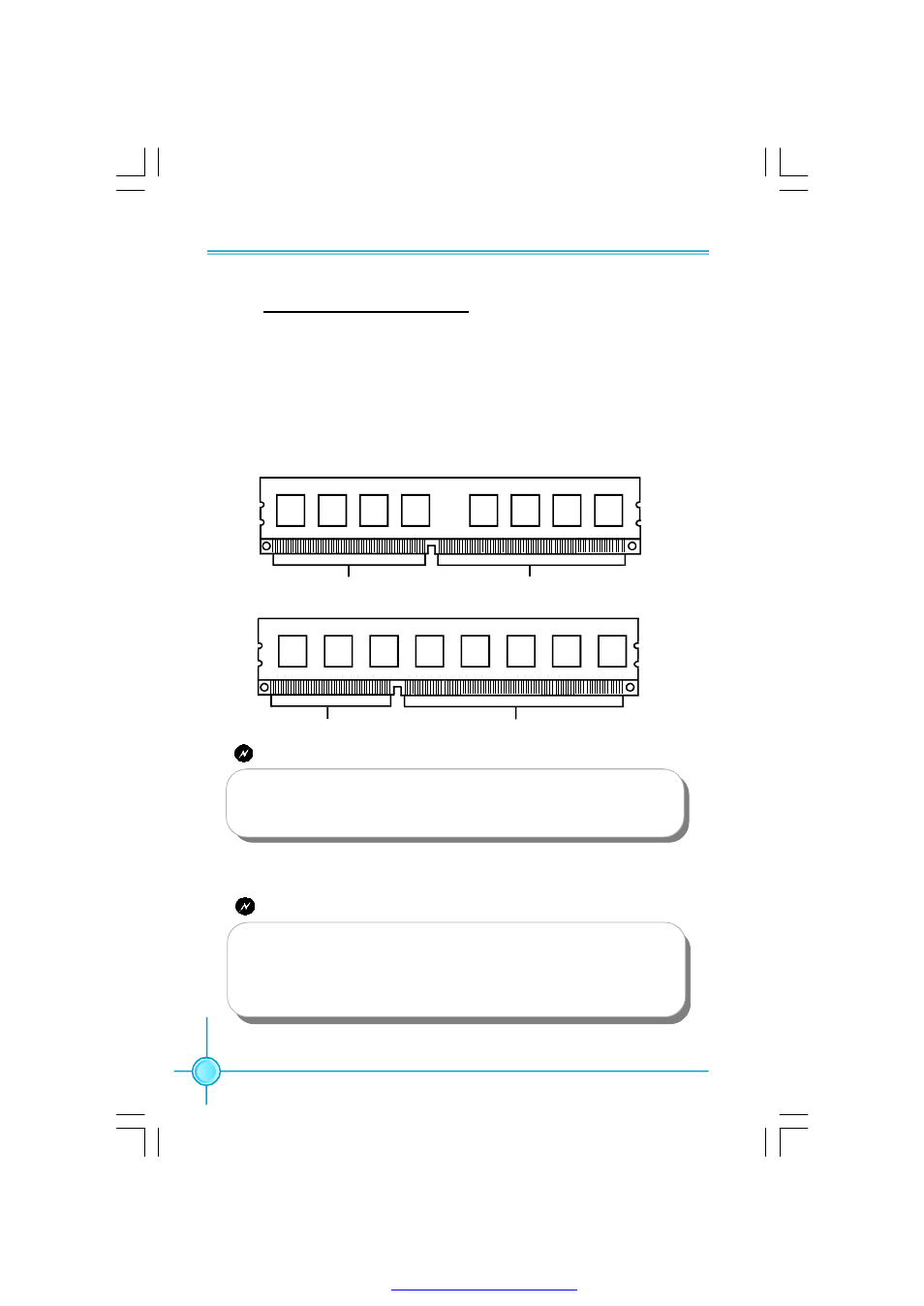

96-Pin 144-pin
D DR 3
D DR 2
112-Pin 128-pin
For the detailed memory support list on this motherboard, please visit the
website: http://www.foxconnchannel.com
Warning:
Do not install DDR2 and DDR3 memory modules simultaneously on
this motherboard. Doing so may result in damage to the motherboard
and your system.
