MAINTENANCE
powermax30
Service Manual 3-23

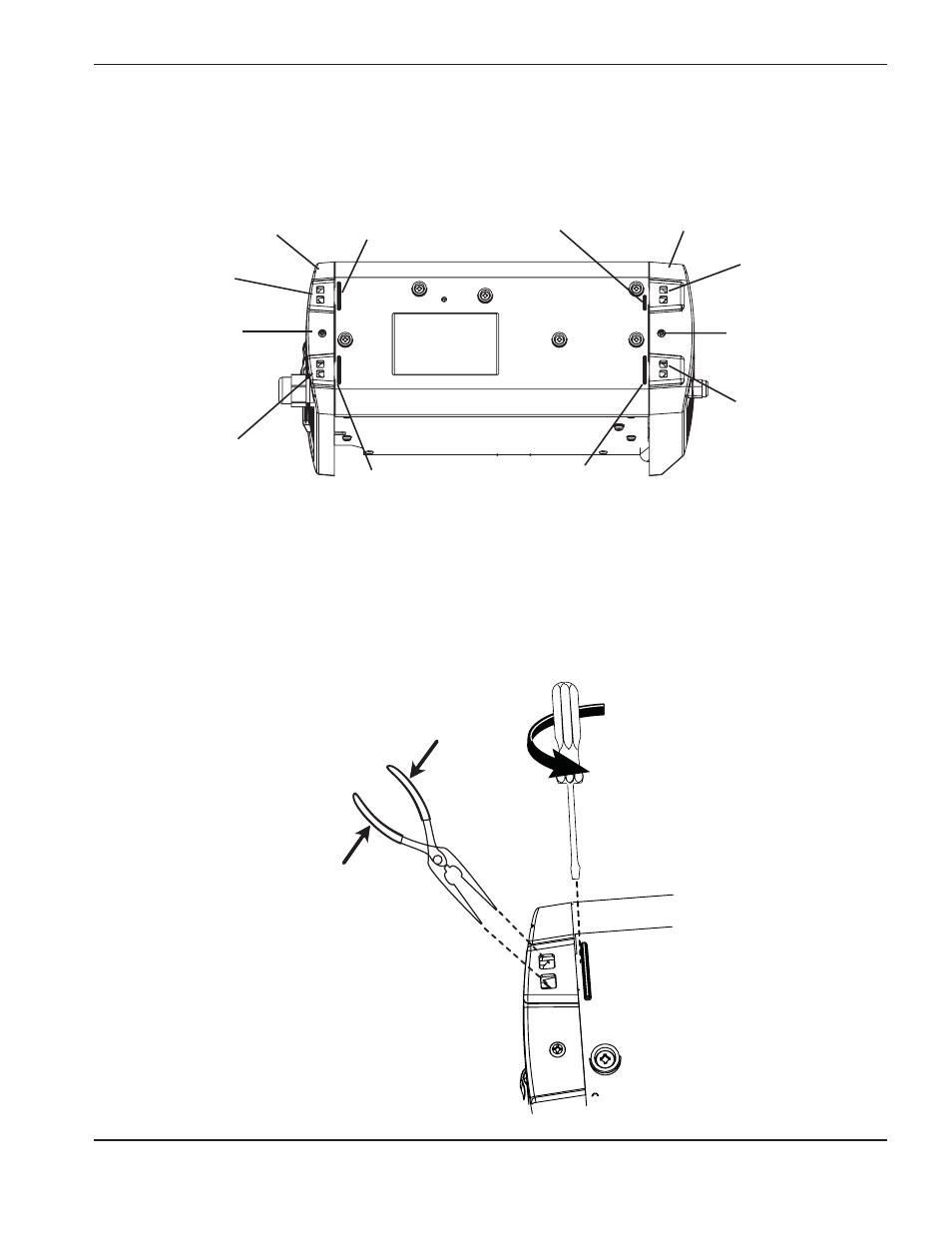

3. Lay the power supply on its side or hold it upside down. Each endcap has a retaining screw in the center. The
raised feet on the bottom of the unit have holes to provide access to the snaps that hold the endcaps in place.
Next to each foot is a raised rib.
Snap
Snap
Snap
Snap
Rib
Rib
Rib
Rib
Retaining
screw Retaining
screw
Rear endcap Front endcap
4. Remove the retaining screw from the bottom of the endcap that you will remove.
5. There are snaps on both sides of each endcap that hold the endcaps in place. Insert needlenose pliers into the
opening for one of the snaps and use the pliers to squeeze it together.
6. Place a flat-blade screwdriver against the raised rib next to the snap and gently turn the screwdriver to push the
endcap away from the base.
