INSTALLATIONS

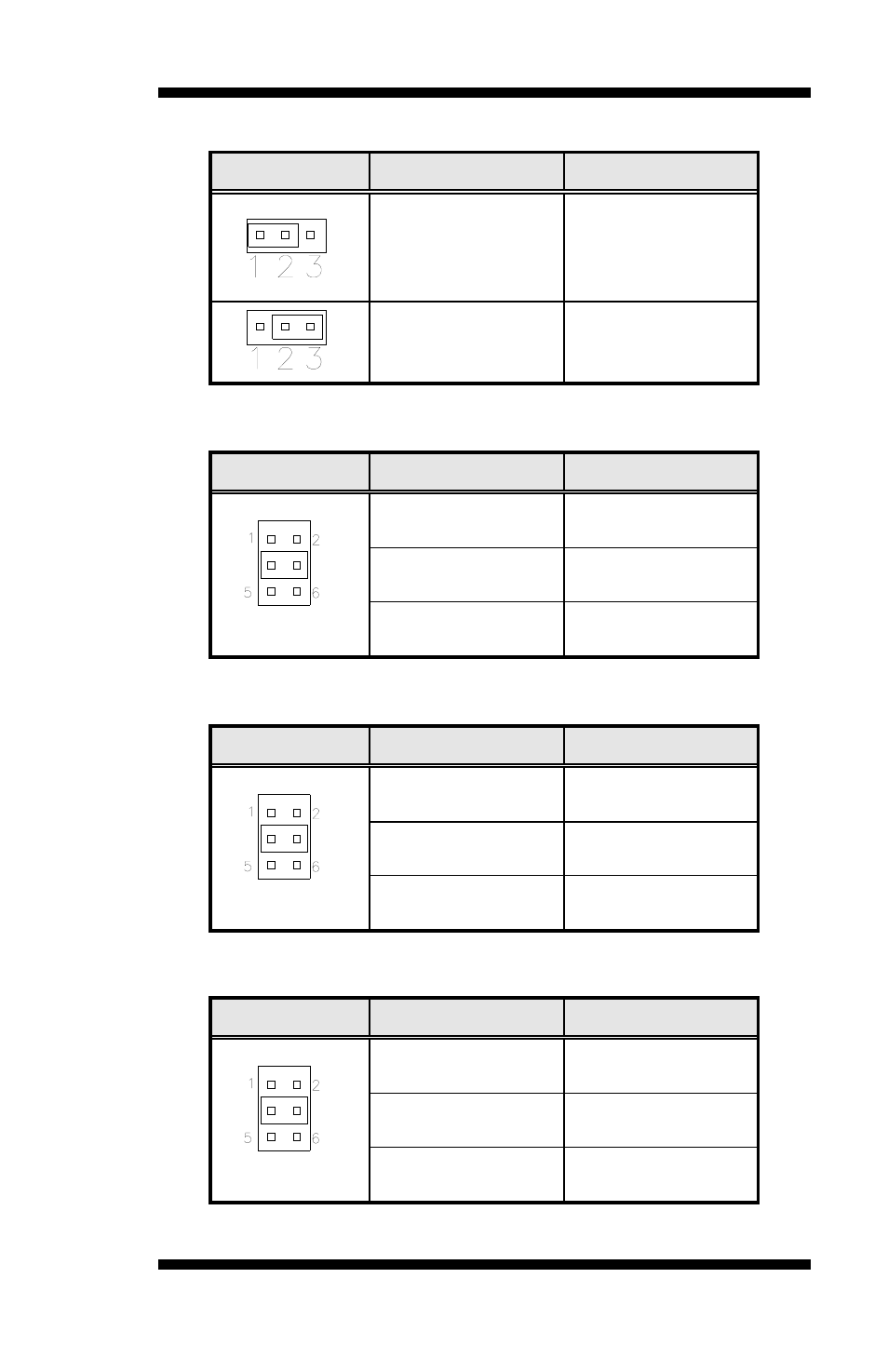

JP2: PS/2 Keyboard & Mouse Power Setting
JP5 Setting Function
Pin 1-2
Short/Closed
+5V
Pin 2-3
Short/Closed +5VSB
JP3: COM1 RS232 +5V/+12V Power Setting
JP3 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Normal
Pin 5-6
Short/Closed
+5V
JP4: COM4 RS232 +5V/+12V Power Setting
JP4 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Normal
Pin 5-6
Short/Closed
+5V
JP5: COM3 RS232 +5V/+12V Power Setting
JP5 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Normal
Pin 5-6
Short/Closed
+5V
MB945 User’s Manual 11
