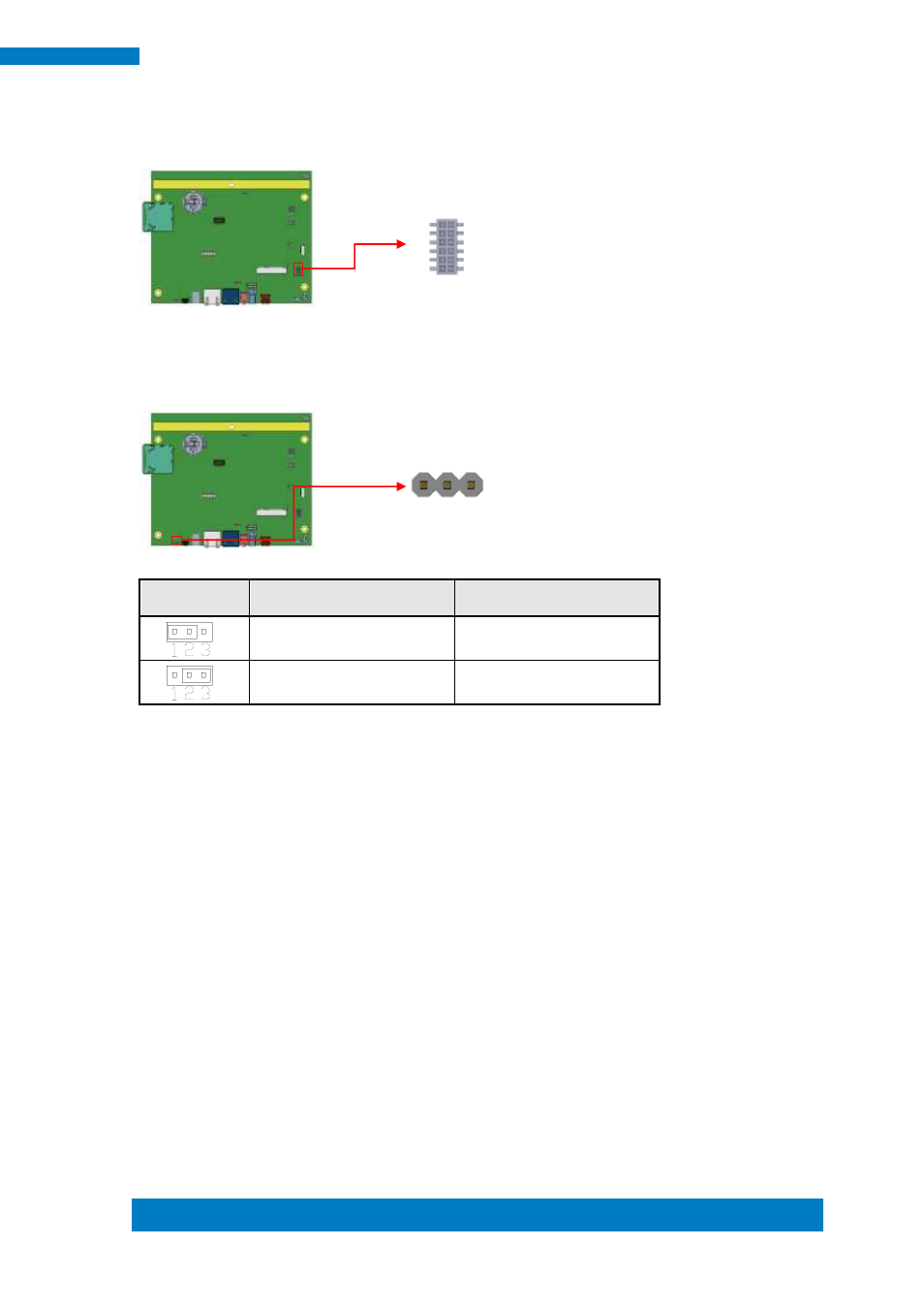

JP3: Program Interface (E-CALL 0519-03-2161-120) (Factory
use only)
JP4: System reset/GPIO Mode Setting 2.0mm
JP4 Setting Function
Pin 1-2 Short/Closed GPIO
Pin 2-3 Short/Closed System Reset (Default)
11
2
12
1
1 3
