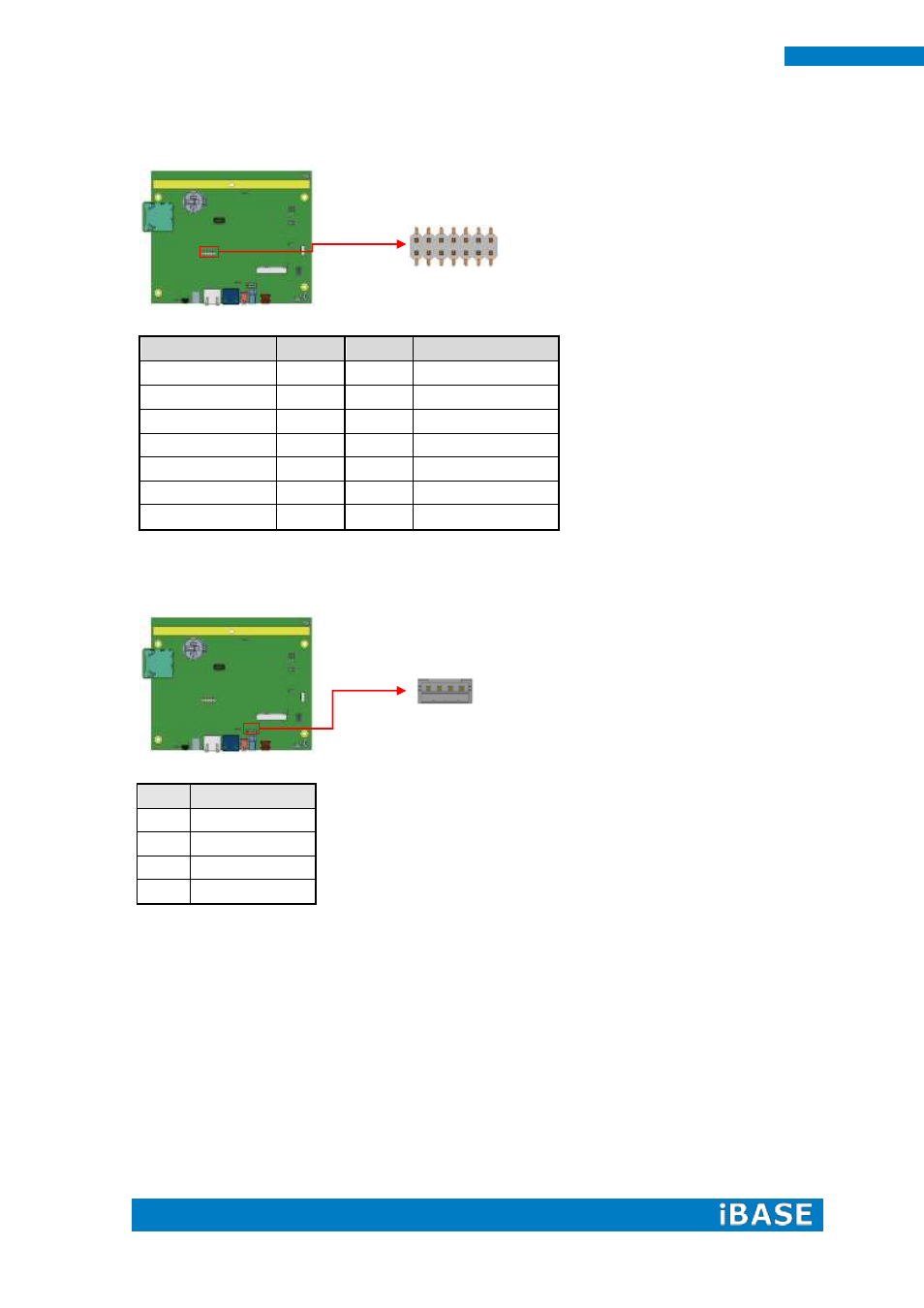

J10: Digital In/Out Connector 2.0mm
Signal Name Pin # Pin # Signal Name
3.3V 1 2 GPIO2
GPIO1 3 4 GPIO5
GPIO3 5 6 GPIO8
GPIO7 7 8 Reset
GPIO9 9 10 Watch Dog
GPIO10 11 12 GPIO11
GPIO12 13 14 GND
J11: USB2.0 Connector (JST B4B-PH-K-S)
Pin # Signal Name
1 +5V
2 D-
3 D+
4 GND
14
1
2
13
4 1
