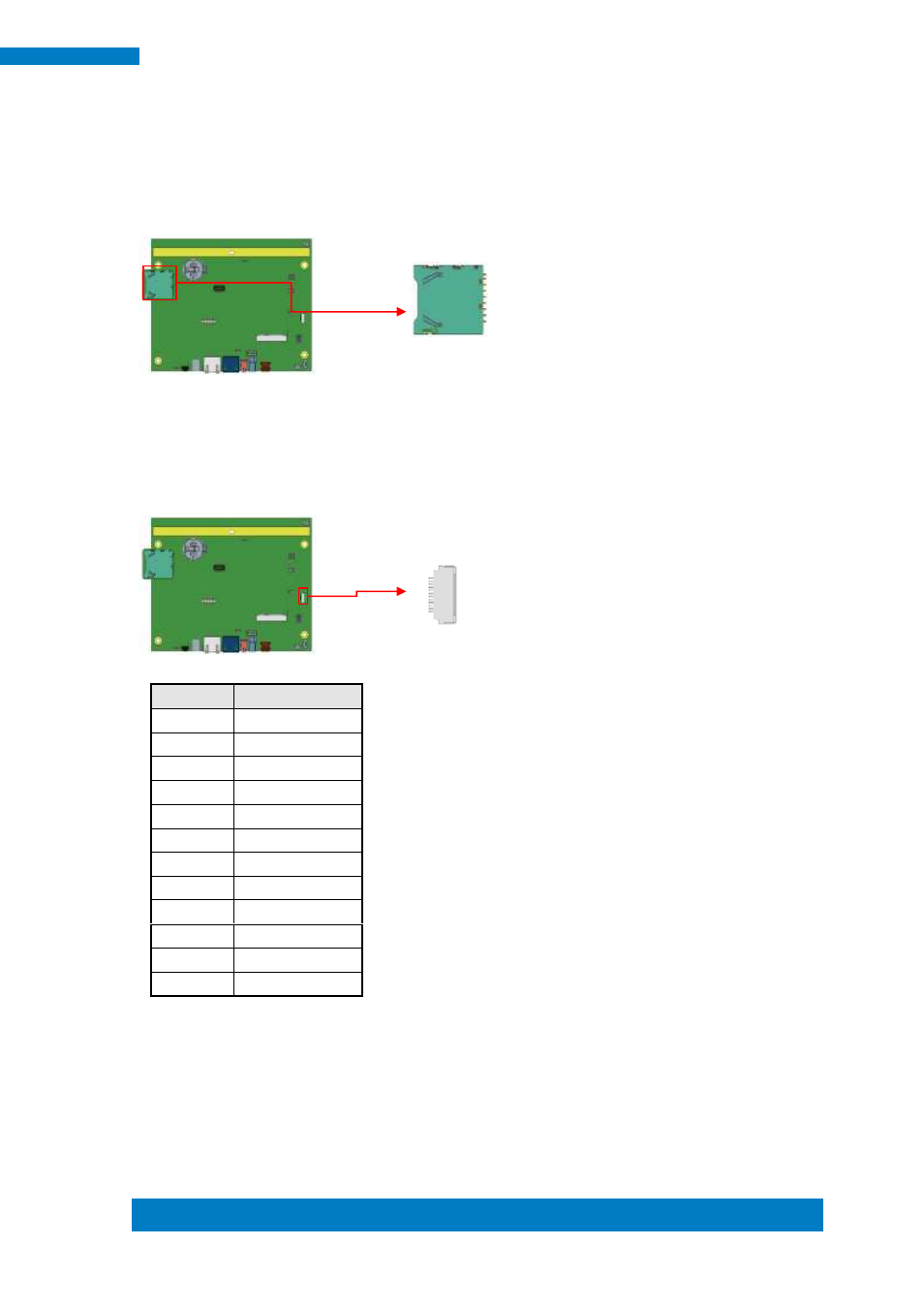

2.3 Connectors on IB102
CN1: SD Card Connector
CN2:
Capacitor
Touch
Pad
Connector
(ENTERY
7083K-F12N-04L)
Pin #
Signal Name
1
GND
2
NC
3
NC
4
NC
5
NC
6
GND
7
SDA
8
SCL
9
NC
10
INT
11
3.3V
12
3.3V
