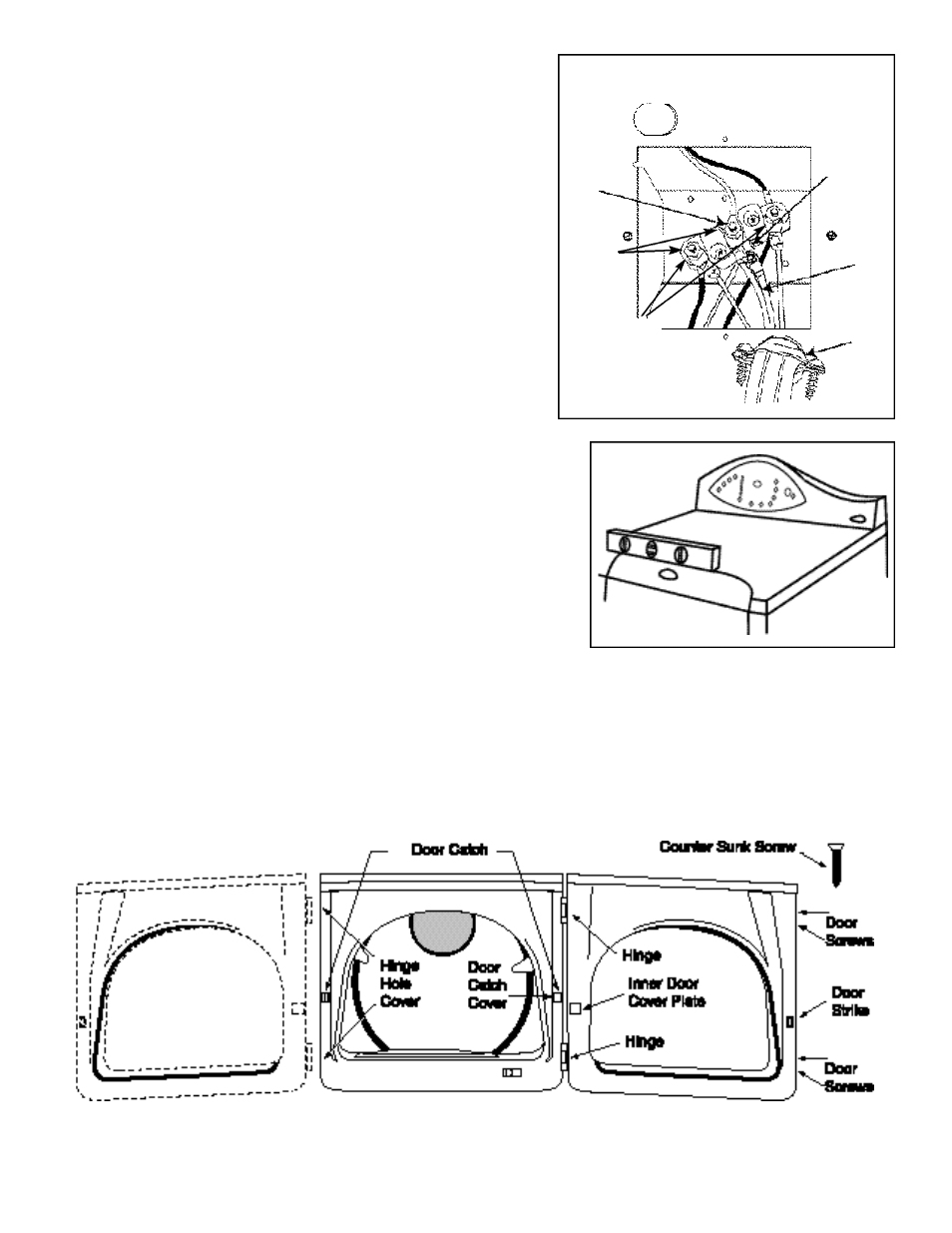

4-WIRE SYSTEM CONNECTIONS
Remove the ground strap screw from the terminal block
support. Fold the ground strap over so both ends of the
ground strap will be attached to the center terminal block
post.
Connect the neutral (white) conductor of the cord to the
center (silver) post of the terminal bl o ck . Connect the
grounding (green) wire of the cord to the terminal bl o ck
s u p p o rt using the ground strap screw.
Connect the red and black wires of the cord to the outer
posts of the terminal block.
Be sure the terminal block nuts are on tight. Secure the
power cord in position. Tighten the strain relief screw(s) in
order to clamp the strain relief to the cord. Replace the
terminal block cover.
EXPORT MODELS
Refer to the Additional Instructions Section.
7.
With a level, check the dr yer, and make necessary
adjustments to the leveling legs. Once level, tighten the
leveling leg locking nuts with a wrench.
8.
The dryer door direction can be reversed.
1. If the dryer is plugged in, unplug from electrical service.
2. Remove the hinge hole covers and screws. Move the door
catch cover to the opposite side.
3. While supporting the door remove 2 screws in the hinges
that secure the hinges to the cabinet.
4. Remove the door by lifting slightly at the hinges and pulling the hinge tabs out of the hinge slots.
5. Move the following parts to the opposite side of the door: 2 hinges and 4 hinge screws, 4 door
screws, door strike and screw, inner door cover plate and screw.
6. Attach the door to the opposite side of the cabinet using the 2 counter sunk hinge screws.
(See below.)
7. Driving the lower hinge screw first will help to align the door and hinges.
8. Replace the hinge hole covers and screws in the opposite side.
Neutral
Post
120
VAC
240/208
VAC
Folded
Ground
Strap
Neutral
Strain
relief
4-Wire System with
Power Cord Attached
