5 Connections

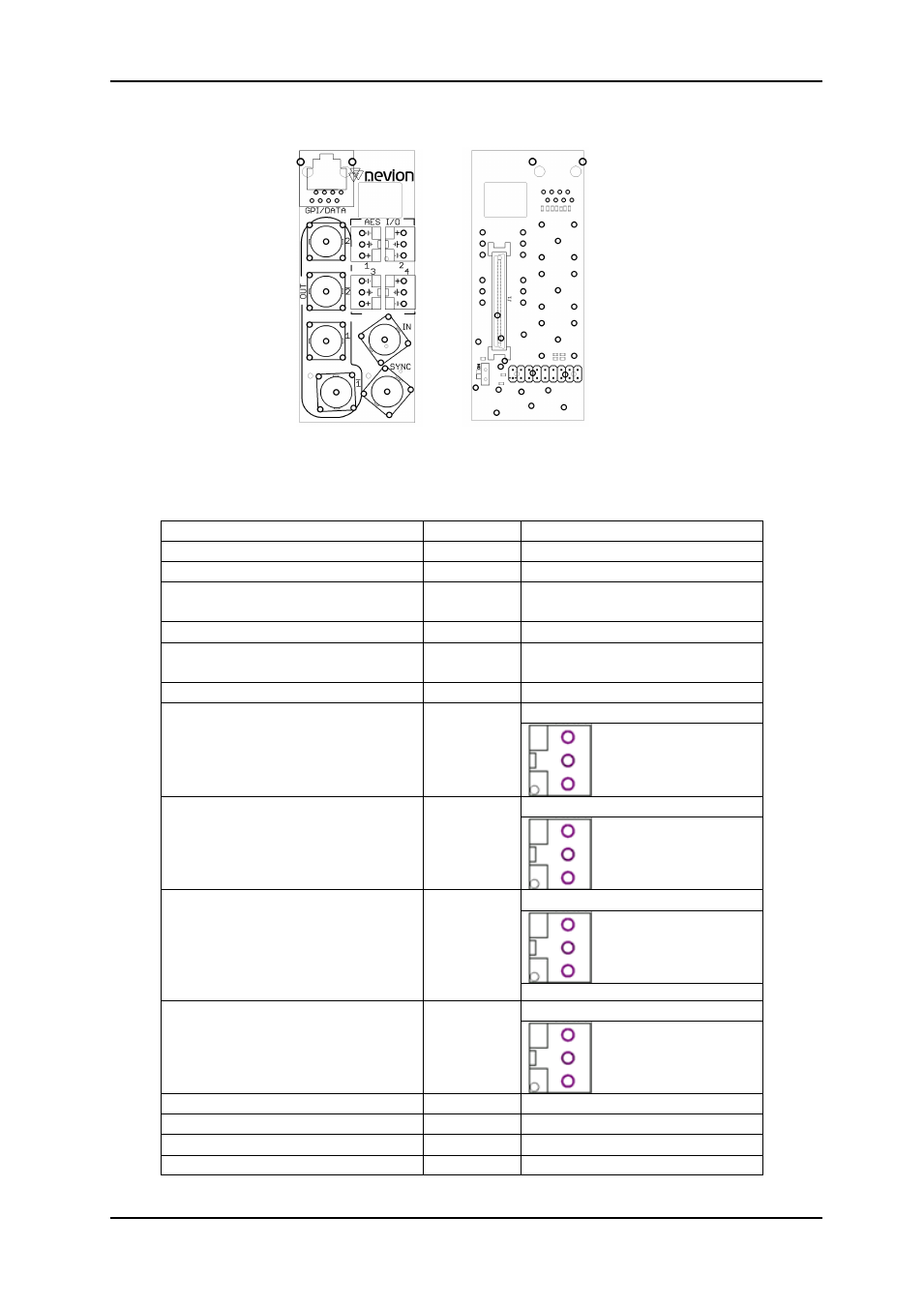

Figure 5: ARC-SD-XMUX4-R backplane
The backplane for the ARC-SD-XMUX4 is called FRS-HD-XMUX4-C1. The table below
shows the connectors and their functions.
Function Label Connector type
SD-SDI input IN BNC
SD-SDI output 1 1 BNC
SD-SDI output 1 inverted _
1 BNC
SD-SDI output 2 2 BNC
SD-SDI output 2 inverted _
2 BNC
Black & Burst/ tri-level input SYNC BNC
AES I/O 1 AES WECO Audio connector
Positive
GND
Negative
AES I/O 2 AES WECO Audio connector
Positive
GND
Negative
AES I/O 3 AES WECO Audio connector
Positive
GND
Negative
AES I/O 4 AES WECO Audio connector
Positive
GND
Negative
GPI in GPI/DATA TP45, pin 2, 3, 6 & 7
GPI out GPI/DATA TP45 pin 1 (pin 8 = GND)
DATA out GPI/DATA TP45 pin 4 & 5
Optical input OPT1 BSC-II (for SC input)
