69 | Wiring Diagrams
HP HVAC
Soft Charge Valve Assembly - 6 Stage
Part #1506713
April 26, 2010
3/8" Compression
1/2" Compression
6.8 in.
( 171 mm)
3.6 in.
( 92 mm )
4.5 in.
( 114 mm )
0.9 in.
( 24 mm )
2.9 in.
( 74 mm )
4.9 in.
( 123 mm )
O
0.4 in.
( 10 mm )
6.6 in.
( 168 mm )
1.5 in.
( 39 mm )
3.0 in.
( 75 mm )
1.5 in.
( 39 mm )
2.3 in.
( 57 mm )
2.6 in.
( 66 mm )
8.0 in.
( 203 mm )
8.0 in.
( 202 mm )
2.3 in.
( 57 mm ) 1.4 in.
( 34 mm )
3.2 in.
( 80 mm )
4.0 in.
( 100 mm )
6.0 in.
( 152 mm )
8.4 in.
( 214 mm )
Voltage: 24VDC
Power: 18 W per coil, 7 coils total
Inlet Connection: ½” compression fitting
Drain Connection: ½” compression fitting
Manifold Connection: 3/8” compression fitting
Max. Pressure: 2000 psig (138 bar)
Min. Flow: 0.3 gpm (1 Lpm)
Max. Flow: 7.9 gpm (30 Lpm)
Pressure Loss: 36 psig @ max flow (2.5 bar)
Weight: 38 lbs (17kg)
Material: 304 stainless steel and plastic

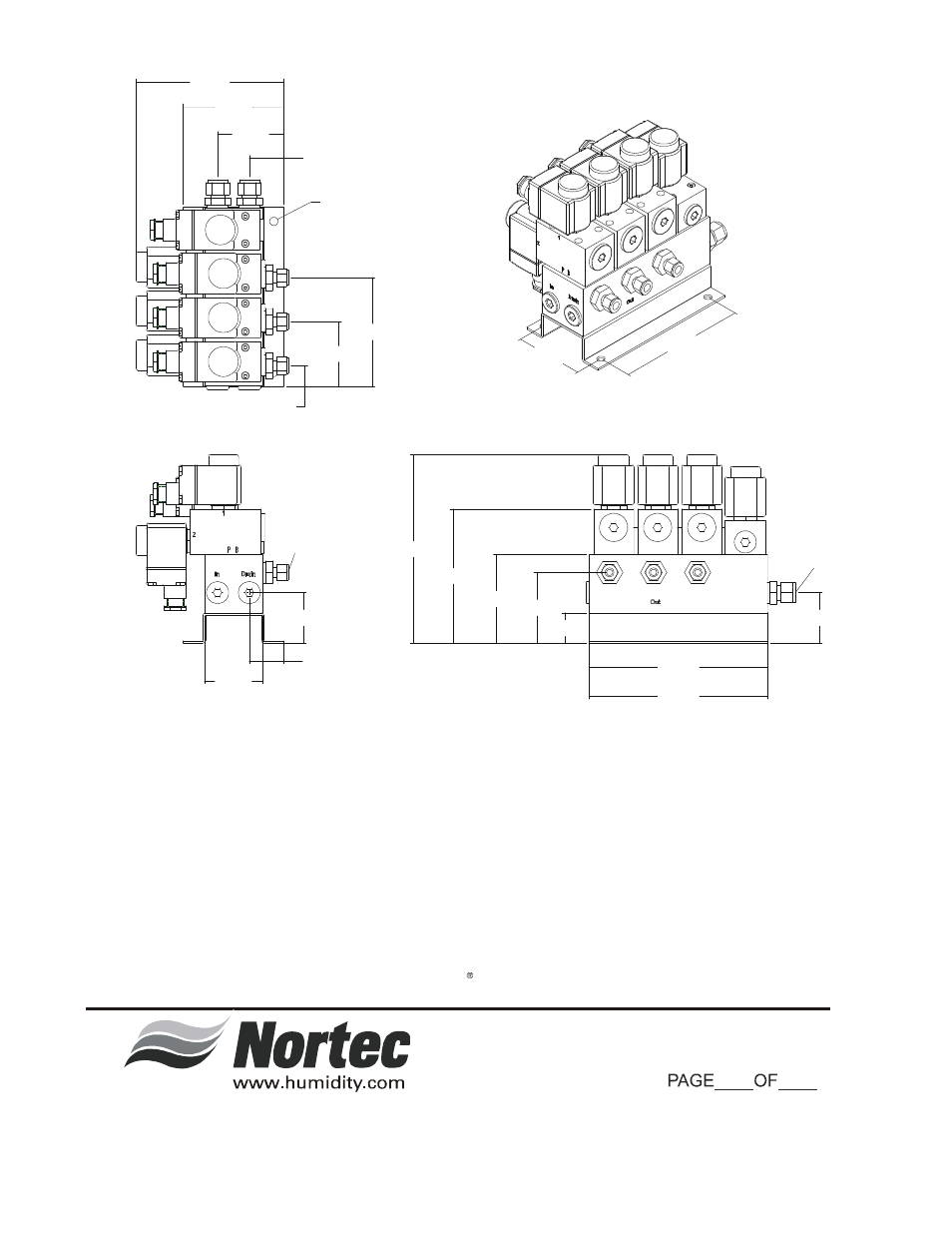

Figure 46: HP HVAC Soft Charge Valve Assembly – 6 Stage
