To Generate Burst
Burst function is only used for CH1. Press the Mod button, then press F3 to select
Burst to generate versatile waveforms in burst. Burst can last for certain times of
waveform cycle (N-Cycle Burst), or to be controlled by external gated signals (Gated Burst).
Bust can apply to Sine, Square, Ramp, Pulse and Arbitrary waveforms (Noise can not be
used).
Term Explanation
Burst:
Output Waveforms with set cycle times. Generally it is called BURST function within
every Signal Generator.
N-Cycle Burst:
N-Cycle has specific number of waveform cycles, and every burst is activated by a
trigger event.
Gated Burst:
Gated burst use external source to control burst as when to be activated.
Set the N-Cycle Burst
Current Parameter
Cycles
Load
Start Phase
N Cycle
Waveform
Source

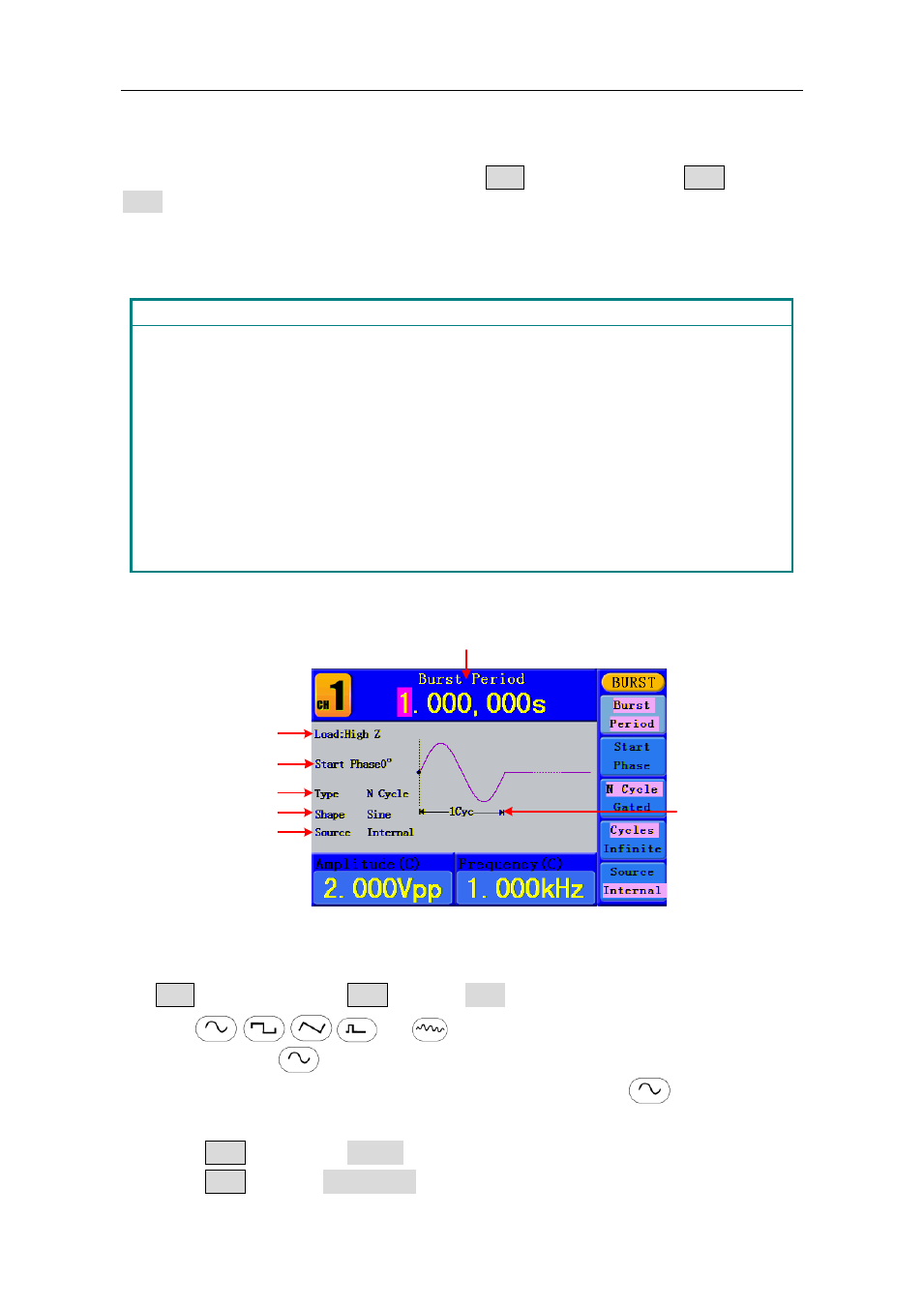

Figure 5-22: The User Interface of N-Cycle Burst
(1)
When the output signal is Sine, Square, Ramp, Pulse or Arbitrary waveform, press the
Mod
button, then press F3 to select Burst.
(2)
Press , , ,
or button to choose the waveform. Take Sine for
instance, press to display the waveform and parameters. You can change the
parameters, please refer to To set signals on page 12. Press button again to
return to the Burst mode interface.
(3)
Press F3 to switch to N Cycle.
(4)
Press F1 to select Burst Period, set it to the desired value.
