Appendix
56
XPS-ProMail System Operations 4-24-14.doc
Conveyor Options
Drop/Catch Tray
(Part #: DROP TRAY-TB) Includes exit wheel assembly.
DROP TRAY ADAPTOR (Part #:25-143-04-A) for TB-659

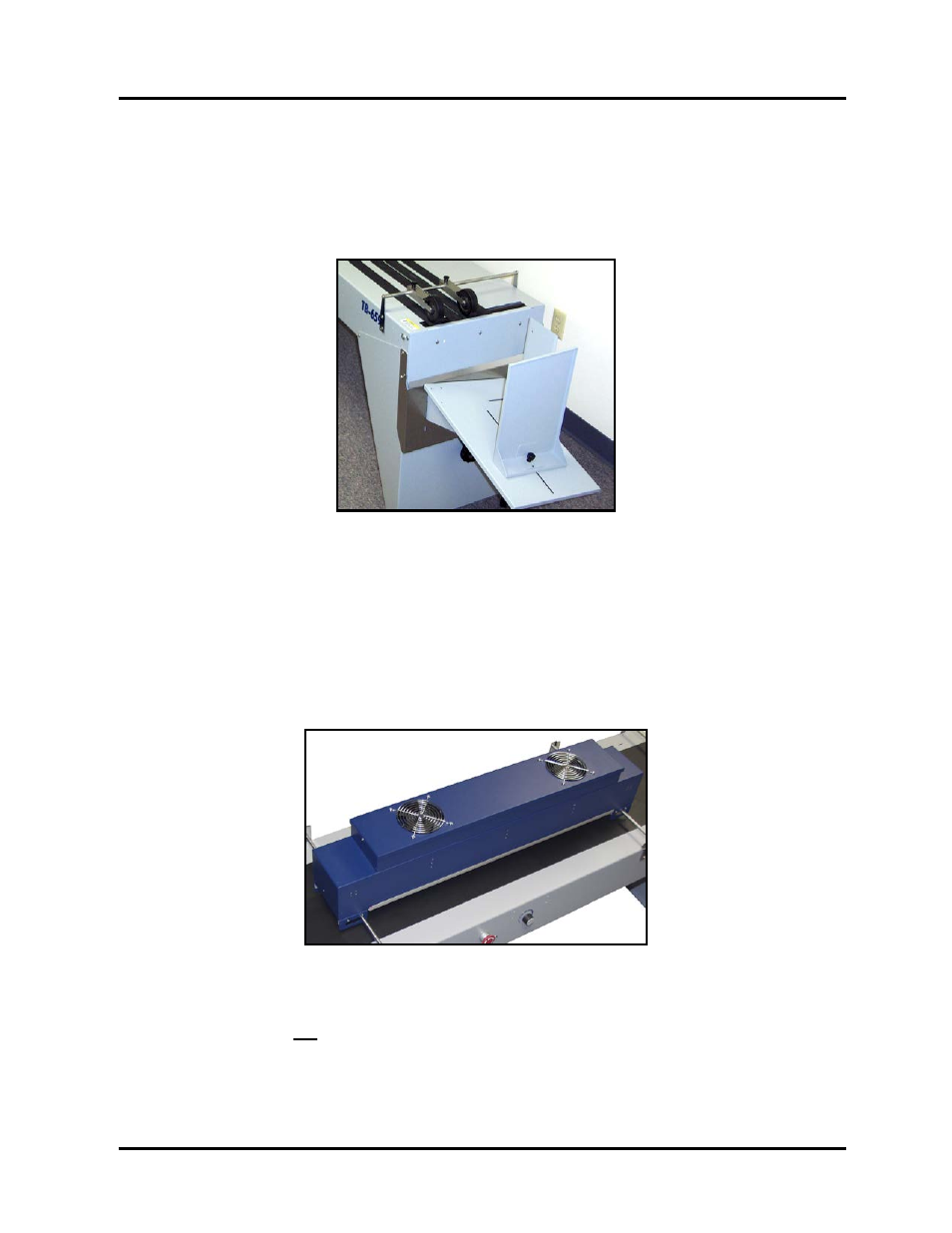

Image shows DROP TRAY-TB mounted on TB-659 conveyor using DROP TRAY ADAPTOR.
 When using theTB-690, you only need to order DROP TRAY-TB
Dryer for TB-659
(Part #: DRYER IR2Ki)
The dryer mounting kit (Part #: TB DRYER KIT) is also needed to mount dryer to the conveyor.
The IR2Ki dryer must be interfaced to the XPS-ProMail Base. Unless the base was ordered for
use with the DRYER IR2Ki, the base may need to be modified.
Image shows DRYER IR2K mounted on TB-690 conveyor.
 If you are using a TB-659, you must order “DRYER IR2Ki” (2000W Dryer with interface).
 When using a dryer on a TB-659, the optional drop/catch tray must also be used.
 Dryer IR2Ki can not be used in conjunction with an XPS-ProDry 8.0.
 The TB-659S model includes DRYER IR2Ki, TB-DRYER KIT, DROP TRAY-TB and
DROP TRAY ADAPTOR.
