Aux Out Menu

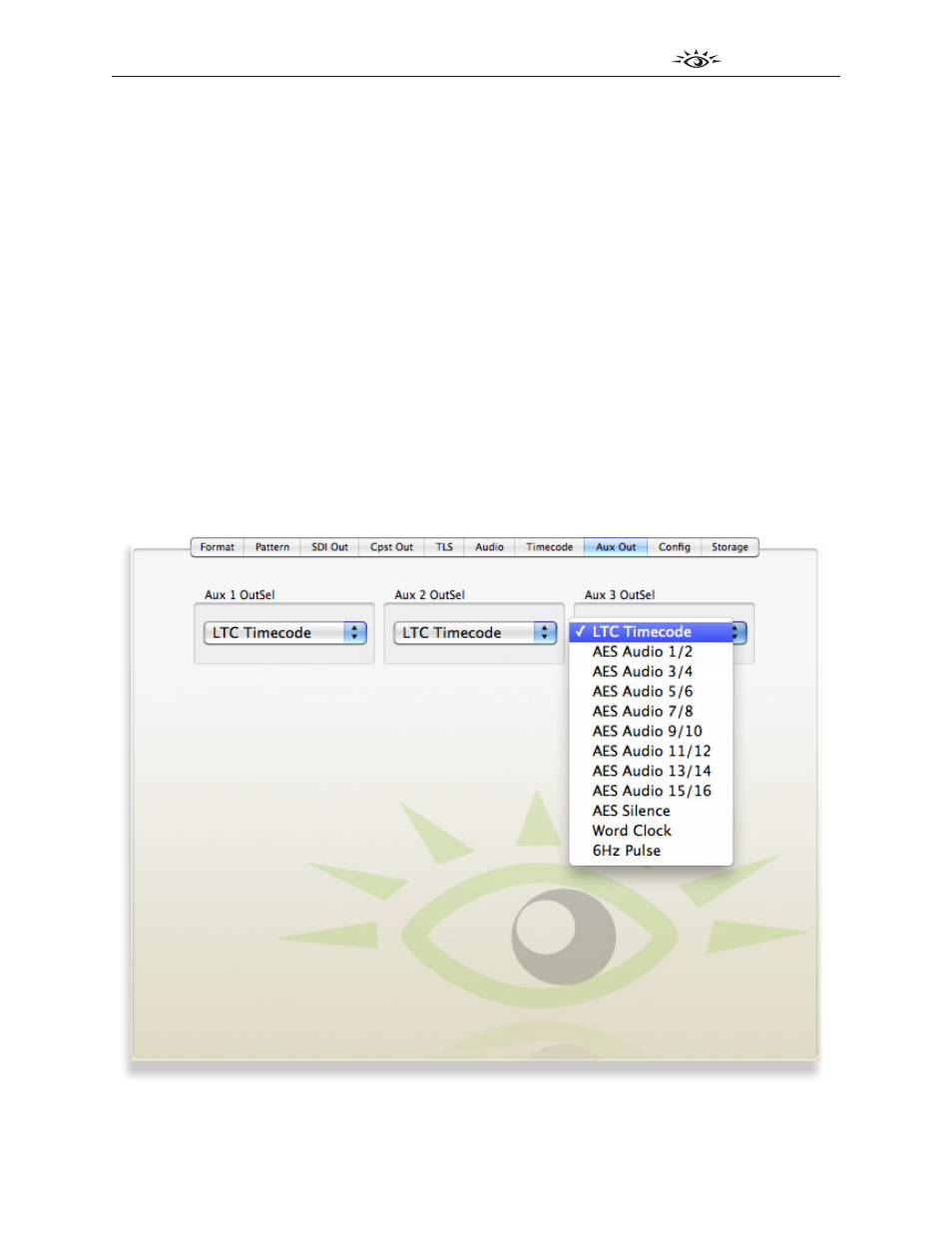

The Aux Out menu shown below allows you to set the output standards for the Programmable Output
BNCs Aux 1, Aux 2 and Aux 3.
The available selections are identical for all three controls. Choose from the following values:
LTC Timecode
AES Audio 1/2
AES Audio 3/4
AES Audio 5/6
AES Audio 7/8
AES Audio 9/10
AES Audio 11/12
AES Audio 13/14
AES Audio 15/16
AES Silence
Word Clock
6 Hz Pulse
