H3C Technologies H3C SecBlade LB Cards - Manual (Page 226)

215
TCP proxy
The TCP proxy function can protect servers from SYN flood attacks. A device enabled with the TCP proxy
function can function as a TCP proxy between TCP clients and servers. Upon detecting a SYN flood
attack, the device can add a protected IP address entry for the attacked server and use the TCP proxy
function to inspect and process all subsequent TCP requests destined to the server.
TCP proxy can operate in two modes:
• Unidirectional proxy—Processes only packets from TCP clients.
• Bidirectional proxy—Processes packets from both TCP clients and TCP servers.
You can choose a proper mode according to your network scenario. For example, if packets from TCP
clients to a server go through the TCP proxy but packets from the server to clients do not, as shown
in Figure 103 , configure unidirectional proxy.

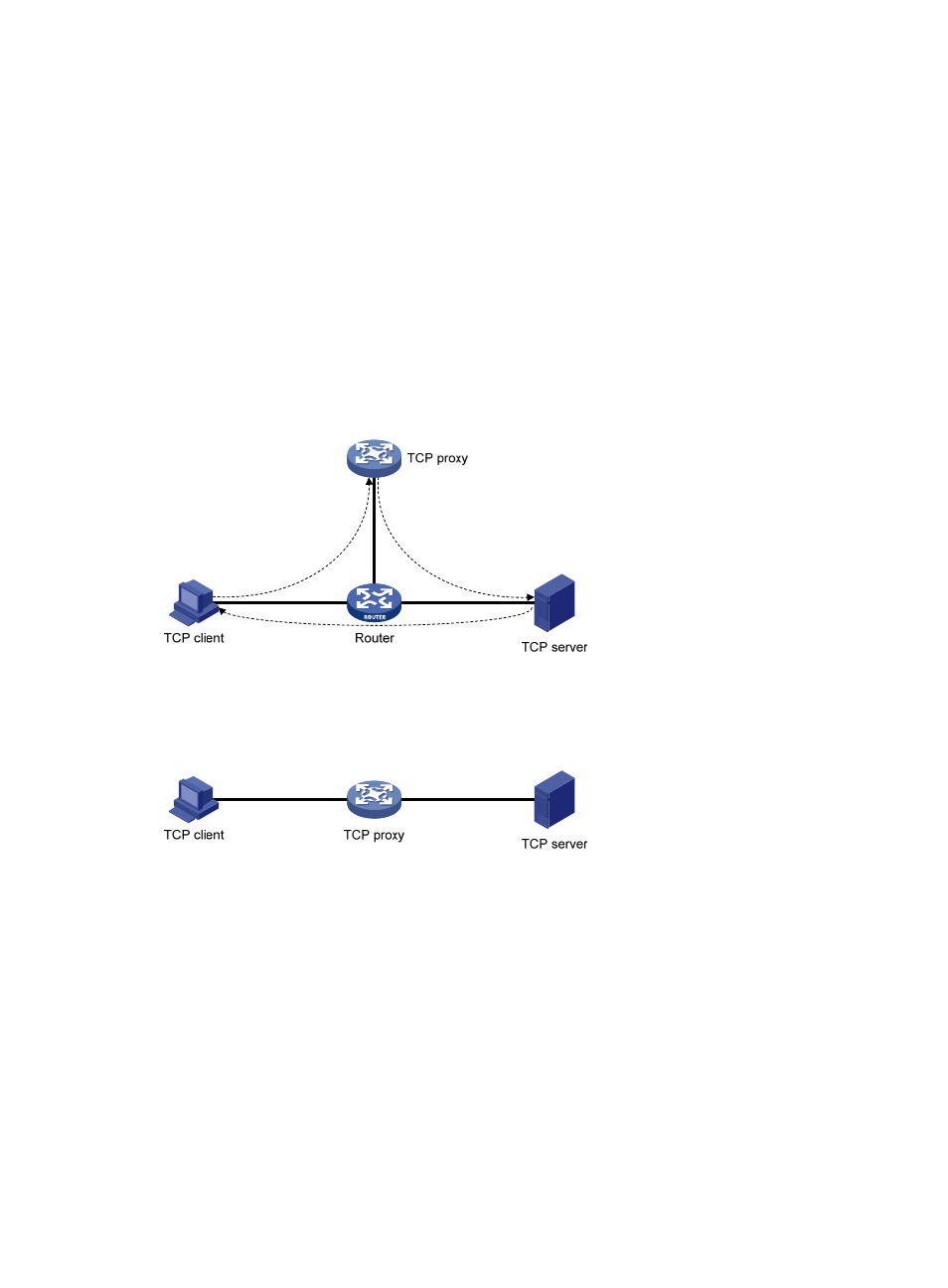

Figure 103 Network diagram for unidirectional proxy
If all packets between TCP clients and a server go through the TCP proxy, as shown in Figure 104 , you
can configure unidirectional proxy or bidirectional proxy as desired.
Figure 104 Network diagram for unidirectional/bidirectional proxy
• Unidirectional proxy
