8964FS Instruction Manual 29
Configuration
Functional View Web Page
The Functional View web page ( Figure 12 ) illustrates a block diagram of
the 8964FS module showing module functions and signal paths that are
active or inactive in the current configuration. It can be used as a link map
for configuring module functions. Each block has a link to the configura-
tion page for that function.
Color coding indicates active functions and signal flow. Grayed compo-
nents are inactive due to hardware and/or software constraints. Under-
lined module functions are links to the web page for that function.
Use the Functional View to configure the 8964FS module in the order of the
signal flow. Refer to each of the module configuration web pages given in
the next section.

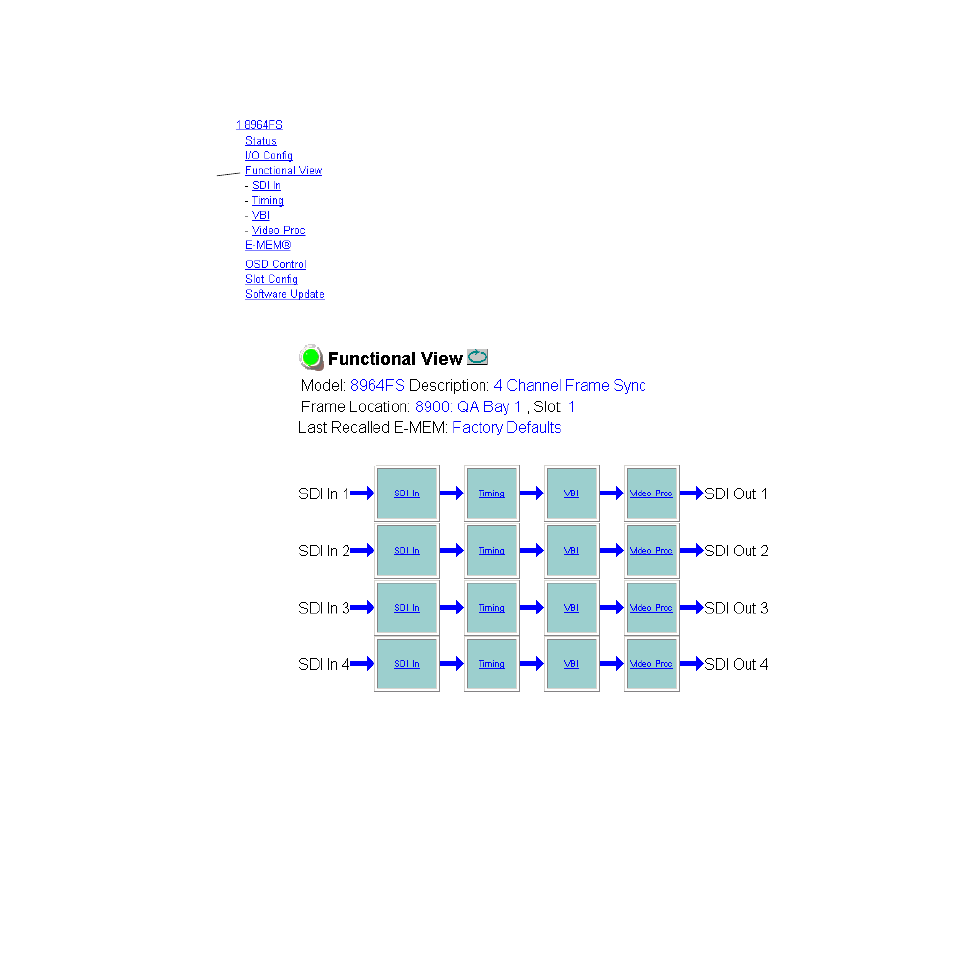

Figure 12. 8964FS Functional View Web Page
Use
this
link
