36
8964FS Instruction Manual
Configuration
Video Proc Web Page
Use the Video Proc web page (
) to select the video processing
parameters for each channel. Select the channel to be adjusted from the
Channel 1 – 4
buttons.
Make the following video processing selections on this page:
•
Enable a color bars test signal to the channel output by selecting the
Color Bars
radio button in the Test Signal Generator control.
Select the
Disable
button for normal operation.
•
Pass
or
Blank
horizontal ancillary data (HANC).
•
Turn EDH Insertion
On
or
Off
.

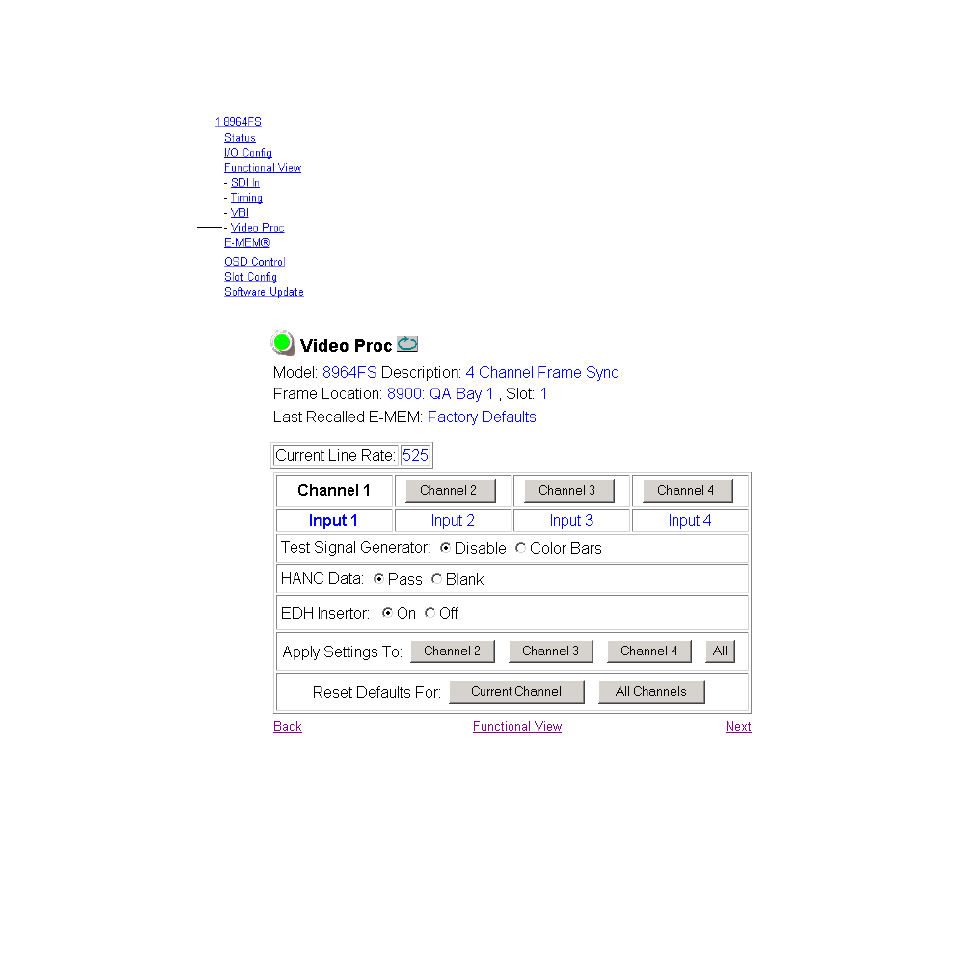

Figure 17. 8964FS Video Proc Web Page
