8964FS Instruction Manual 37
Configuration
E-MEM Page
The E-MEM web page provides local operations for learning and recalling
configurations into E-MEM registers. File operations are also available for
saving or loading the learned E-MEM files to and from a hard disk or other
accessible media.
Factory default settings for all channels can be recalled by selecting the
Recall factory settings button. To return the module to the factory signal
names (such as the signal inputs), select the Recall factory names button.
There are two E-MEM view selections: Standard and Advanced .
In Standard view ( Figure 18 ), any one of five learned E-MEMs can be
recalled by selecting the corresponding Recall button in the Local Opera-
tions window. This will place the configuration for all four channels
learned into that E-MEM into the 8964FS. This change will occur immedi-
ately upon recall. The name of the last recalled E-MEM will appear in the
top header of each web page for the module.
To learn configurations to E-MEM registers and perform E-MEM file oper-
ations, select the
Advanced button in the View Selection section. This will
open the Advanced view ( Figure 19 on page 38 ).

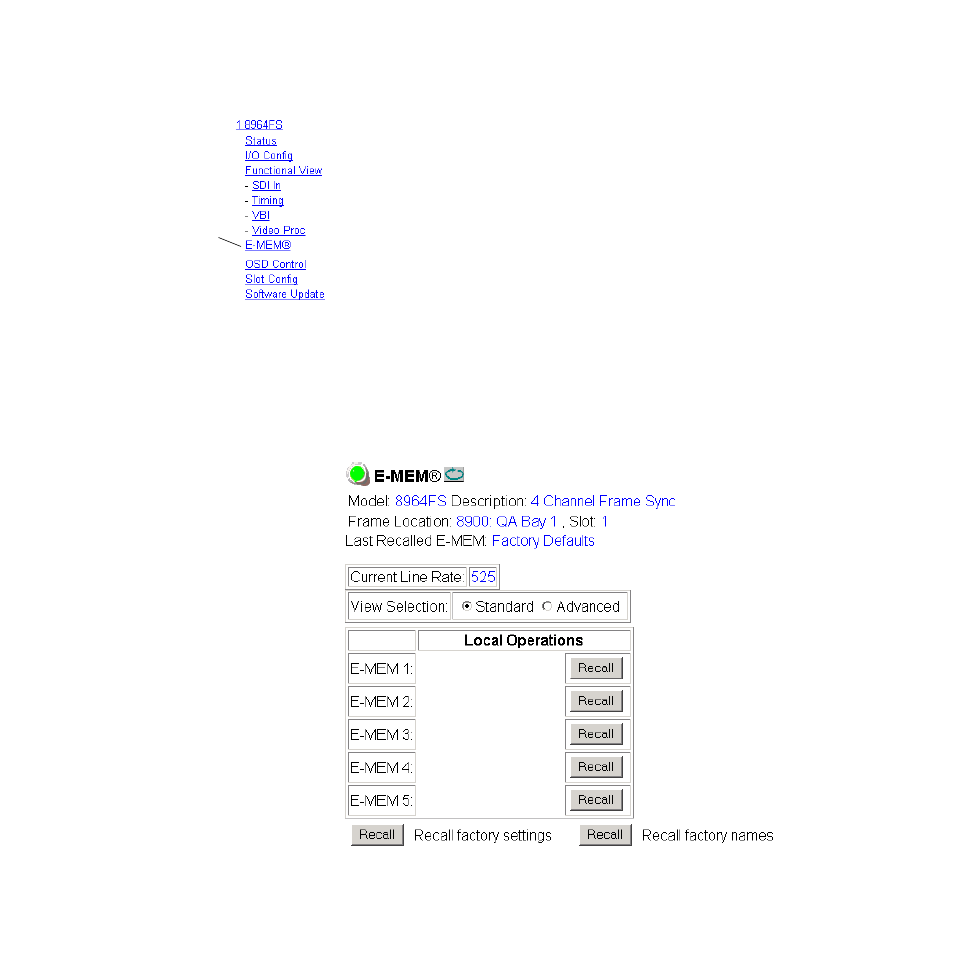

Figure 18. 8964FS E-MEM Web Page (Standard View)
