Configuration
Timing Web Page
The Timing web page includes horizontal and vertical timing as well as
freeze controls.
Table 5 on page 16 gives a summary of controls, defaults,
and parameter ranges.
Select the channel to be adjusted from the Channel 1 – 4 buttons and adjust
the following timing controls:
• Horizontal Timing (in pixels)
• Vertical Timing (in lines)
Select one of the following buttons from Freeze Mode:
• AutoFreeze – auto freeze to last valid field will occur upon loss of signal.
• AutoBlue – auto freeze to blue screen will occur upon loss of signal.
• Field 1 , Field 2 , or Frame – selecting one of these buttons performs an
immediate manual freeze on the selected channel output.

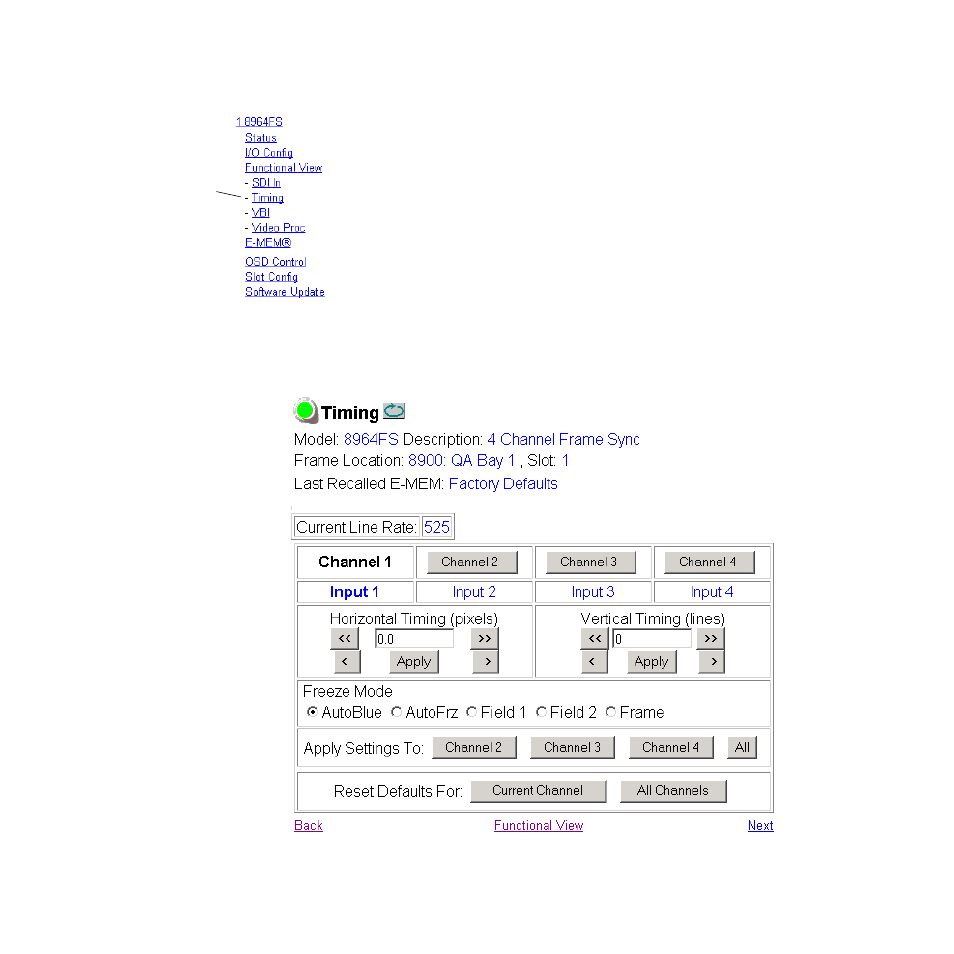

Figure 14. 8964FS-FS Timing With Frame Sync and Freeze Controls
