CopperHead Pro
User Guide
Camera Headset
PowerWafer Connector
Camera Unit #13

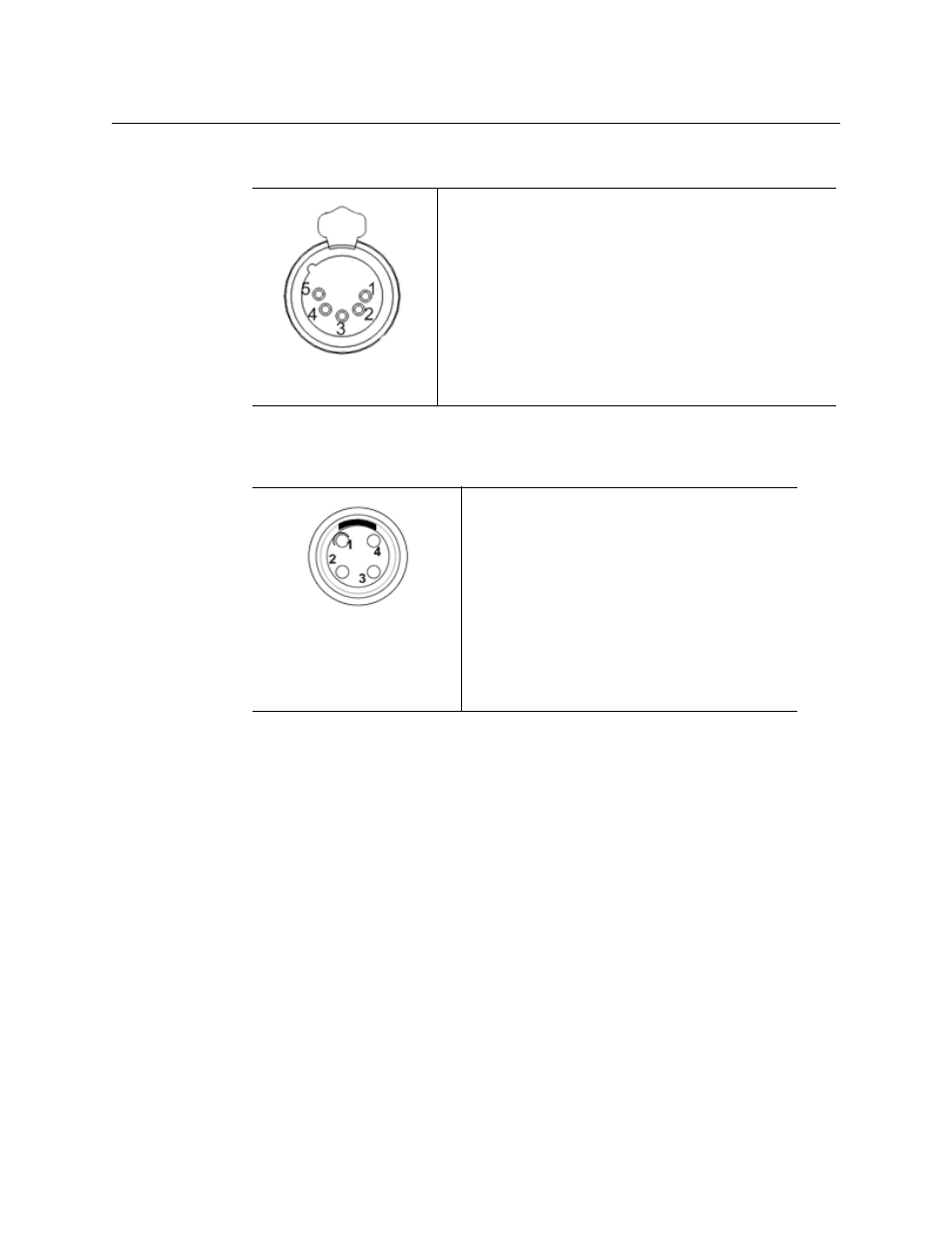

XLR5 Female (Ext View
The Camera Unit headset connector pinouts (RTS
standard monaural headset pin-out):
• Pin 1: MIC Ground (shield)
• Pin 2: + MIC Input
• Pin 3: - Earphone Output Ground
• Pin 4: + Earphone Output
• Pin 5: + Earphone Output
Camera Unit #15
Lemo 4-pin Female (Ext View)
The Camera Unit PowerWafer Connector
pinouts:
• Pin 1: + 95VDC)
• Pin 2: Not Used
• Pin 3: - 95VDC
• Pin 4: Not Used
Receptacle: Lemo EGG.0B.304.CLL
Mating connector:
• Lemo FHG.0B.304.CLAD42 (right angle)
• Lemo FGG.0B.304.CLAD42 (straight)
