98
Menus
A/B Mixer Menu
A/B Mixer Menu
Figure 5-20 shows the panel’s ‘A/B Mixer’ menu:

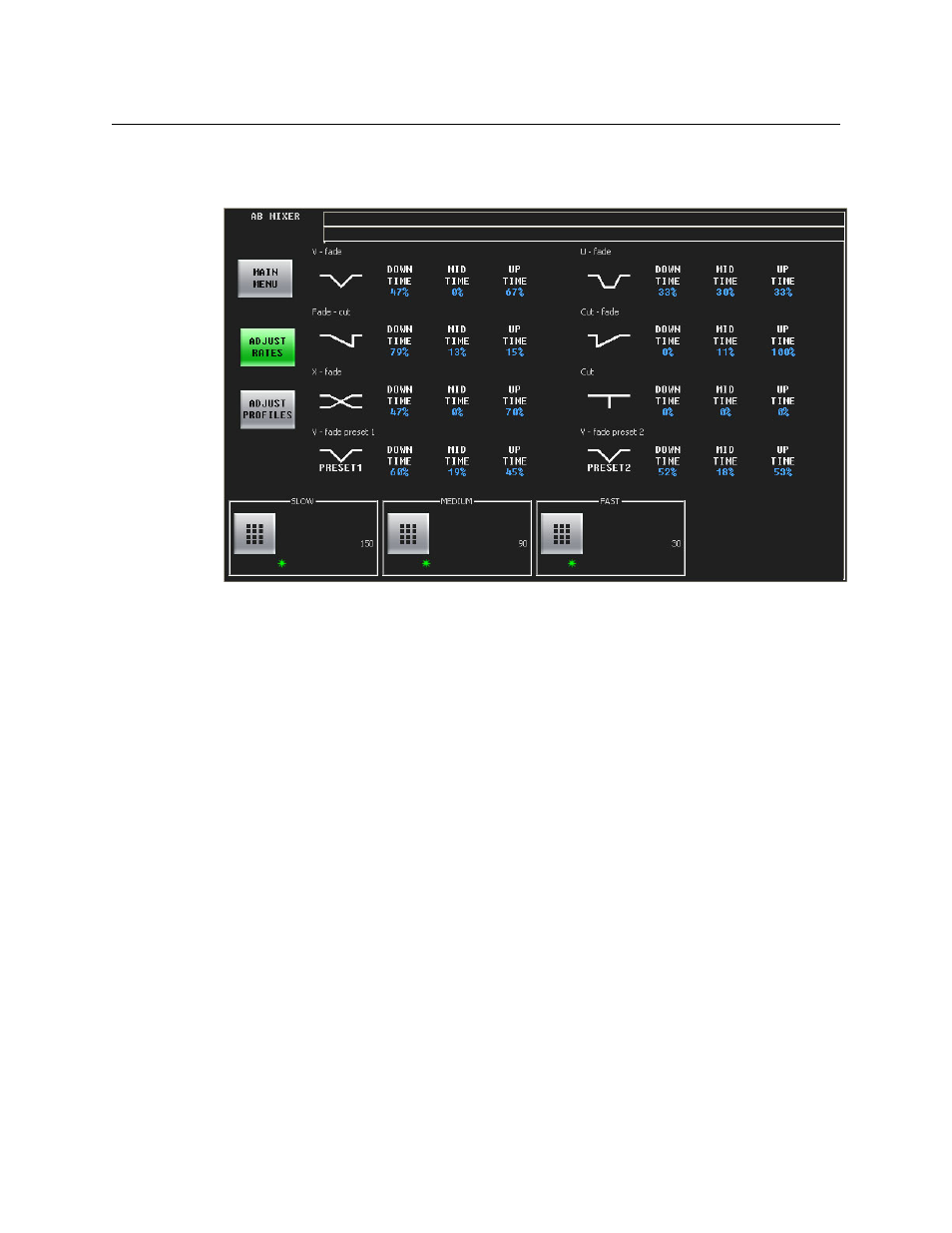

Fig. 5-20: A/B Mixer (Rates Sub-Menu Shown)
This menu displays the characteristics of the transition types defined in the Imagestore 750
under control.
The ‘Adjust Rates’ button selects a sub-menu that lets you adjust the slow, medium, and fast
rates of the A/B mixer. That sub-menu is shown in Figure 5-20.)
The controls at the bottom of the screen adjust the slow, medium, and fast transition rates. To
adjust these parameter, either click the knob proxy associated with the green asterisk, and use
the slider, or touch the keypad icon to access a large keypad with which to enter a number.
S Note that each DVE and DSK has its own slow, medium, and fast rates, independent of the
A/B Mixer.
S The LGK-3901, DSK-3901, and ISM-3901 do not provide DVEs.
The ‘Adjust Profiles’ button selects a sub-menu (shown in Figure 5-21, following) that lets you
adjust the down time, mid time, and up time (or rise time) of individual transition types.
The ‘Main Menu’ button returns you to the main menu.
