9
KXO-HDM
Installation Instructions

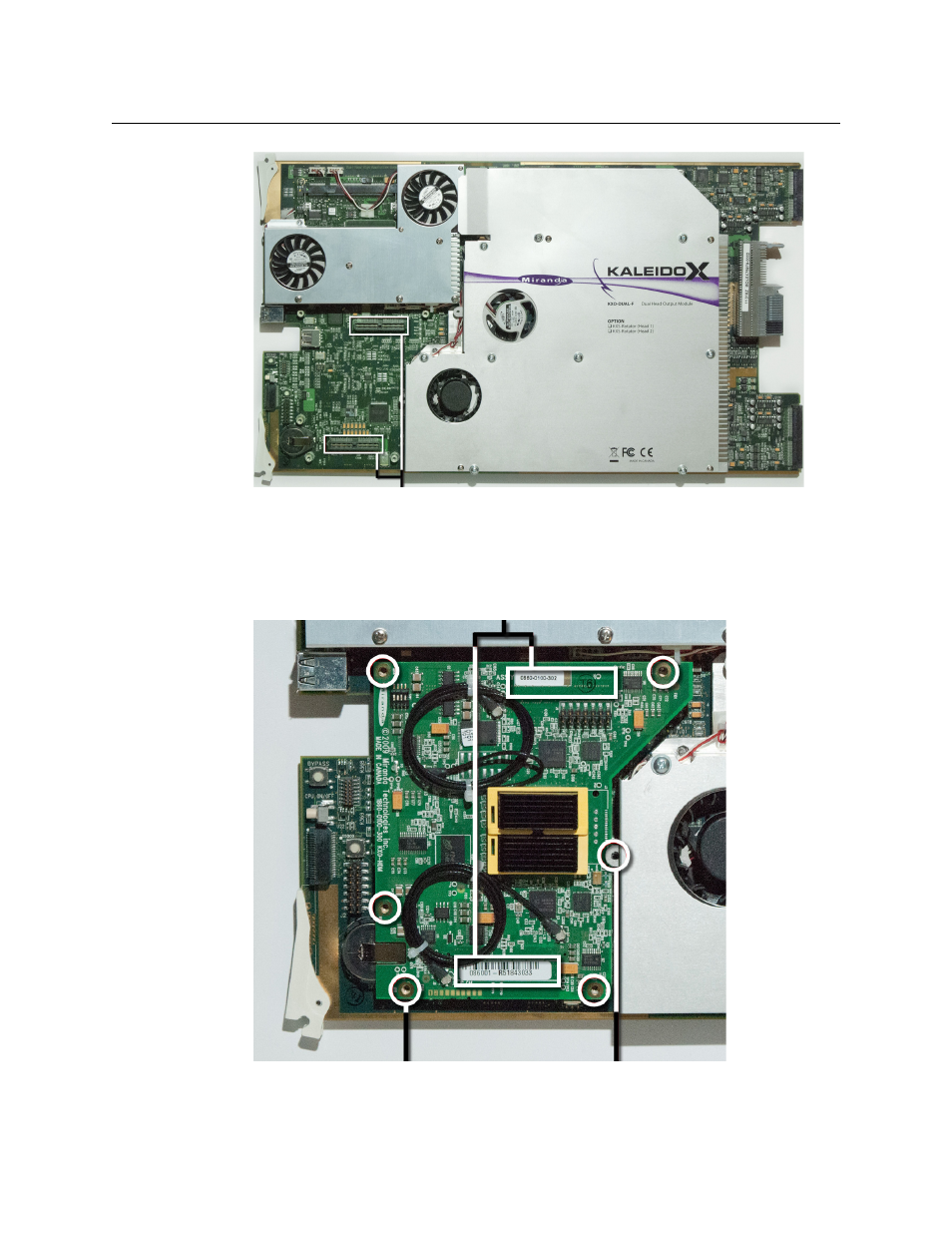

4 Place the mezzanine carefully unto the KXO-Dual3 card connectors.
The mezzanine fits underneath the large heatsink mounting bracket shown below.
5 While supporting the underside of the main board, apply pressure in the connector
areas until the mezzanine is fully connected.
Mezzanine connectors
Connector areas
Five mezzanine
mounting holes Place mezzanine under
heatsink mounting bracket
