10
KXO-HDM Installation
Installing the KXO-HDM on a KXO-Dual3
6 Place five screws B and five lock washers C in the mounting holes (shown above), and
tighten carefully to attach the mezzanine to the spacers on the card.
7 Unplug the coaxial cables from the dummy connectors, open the plastic cable ties, and
then unwind the cables.

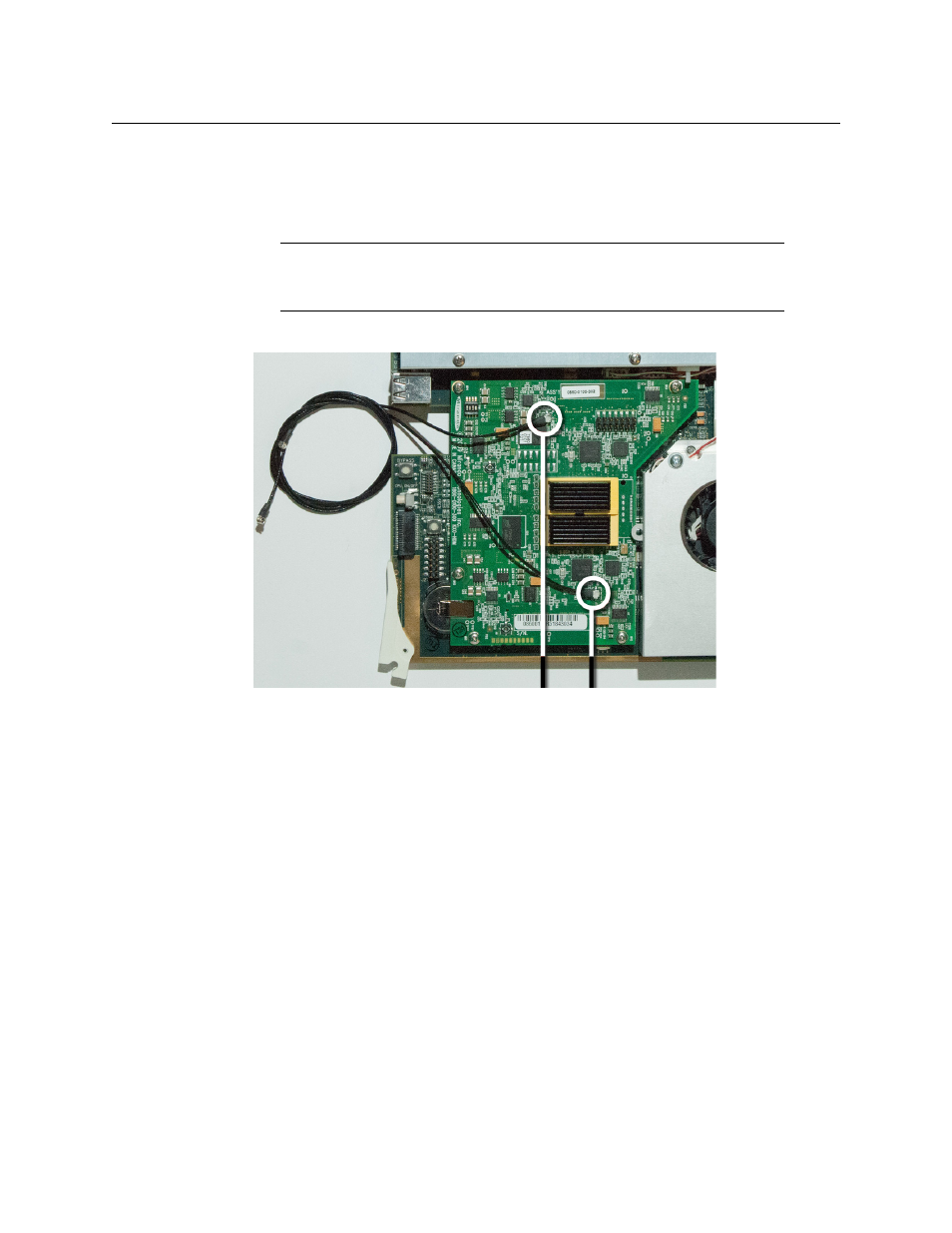

The picture below shows where the working connectors J6 and J7 are located.
8 Turn the card over, and then use the cut-out on the front edge to route the cables.
9 Plug the coaxial cables in the two miniature connectors as follows:
• mezzanine connector J6 to KXO-Dual3 card connector J3000,
• mezzanine connector J7 to KXO-Dual3 card connector J3001.
TIP
To open the cable ties without cutting them, crush their ratchet box by using
long nose flat pliers.
Connector J6 Connector J7
