KXO-HDM Installation
Installing the KXO-HDM on a First-Generation KXO-Dual
Installing the KXO-HDM on a First-Generation KXO-Dual
This installation procedure applies to the first generation of KXO-Dual boards only, which
have an assembly number between
0792-0100-400 and 0792-0100-599. See
Introduction
on page 1, for information on locating the assembly number.
The installation kit includes the following:
A - One KXO-HDM mezzanine
B - Seven screws M2.5 × 6mm
C - Seven lock washers
D - Two screws 4-40 × ¼ with lock washer
E - Four washers
F - Four screw-mount cable retainers
G - Two adhesive cable retainers
Since installing the KXO-HDM on a KXO-Dual does not involve connecting the mezzanine’s
coaxial cables (which are only meant to implement 1080p support on the KXO-Dual3),
items D, E, F and G are not used, and only five M2.5 × 6mm screws and five lock washers are
needed.

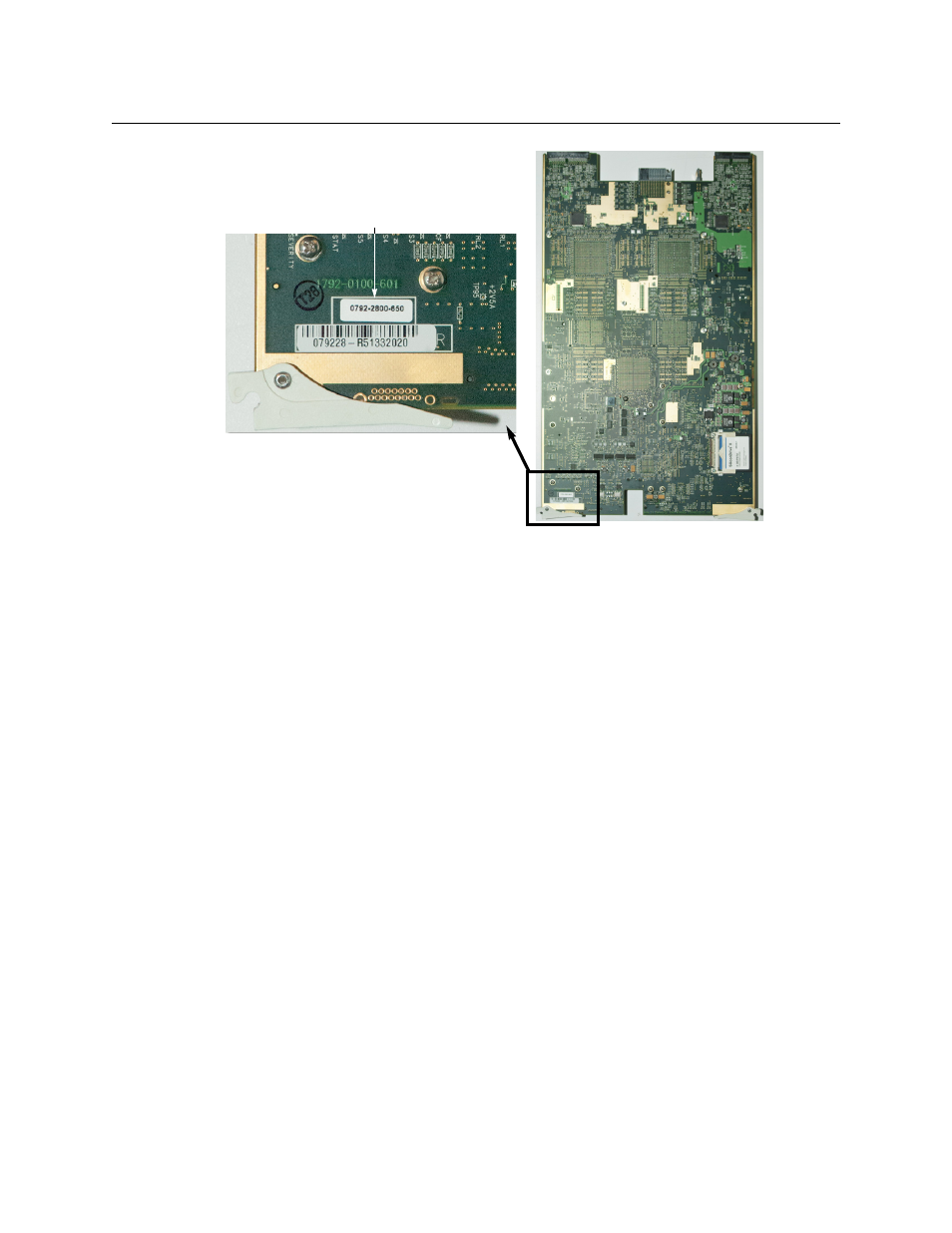

Assembly number
