6 July 2004 M-Series Service Manual 23
FRU functional descriptions
FRU functional descriptions
The M-Series has several Field Replaceable Units (FRUs) that you can replace
yourself. FRUs described in this section are as follows:
• “Base chassis”
• “Front Panel and cable”
• “Media drives”
• “Floppy, CD, DVD drives”
• “Power Supply”
• “Fan module”
For procedures, refer to Chapter 4, Removing and replacing FRUs .
Base chassis
For some serious system faults or for mechanical damage the entire iVDR, as
described earlier in this chapter, can be replaced as a base chassis FRU. Refer to
“Replacing an iVDR” on page 46 .

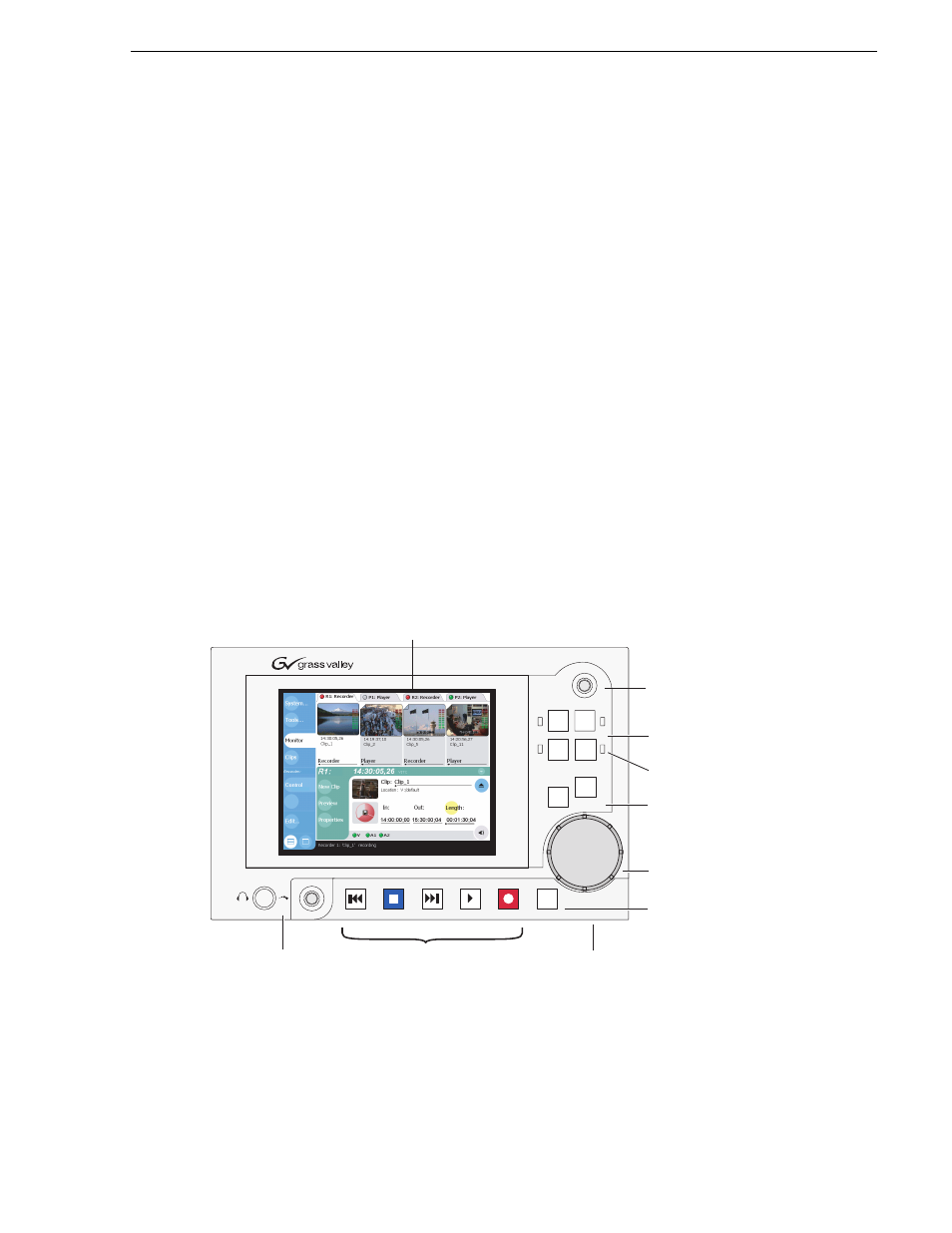

Front Panel and cable
VAR
JOG
SHTL
R1
P2
P1
R2
Channel
Select Buttons
Remote Indicator
Jog/Shuttle
Knob
Jog/Shuttle
Controls
Variable Speed
Play Control
Transport Control
Buttons
Phone Jack &
Level Control
Selection
Knob
VGA Display &
Touch Screen
Note: Refer to display brightness
control, and touch panel calibration
procedures in the M-Series User
Manual as needed.
USB Connectors
(bottom edge)
