70 M-Series Service Manual 6 July 2004
Chapter 4 Removing and replacing FRUs
External Parts Removal
All the parts in this category can be removed and replaced without opening the
M-Series iVDR cabinet and, except for the power supply, are accessible from the
front of the cabinet.
Front Panel or door removal
If the optional Front Panel is currently installed on your iVDR, remove it using the
following procedure.
If the Media Drive door is currently installed on your iVDR, remove it using the
following procedure also. However, disregard steps for the latch and the cable, as
these are not applicable to the Media Drive door.

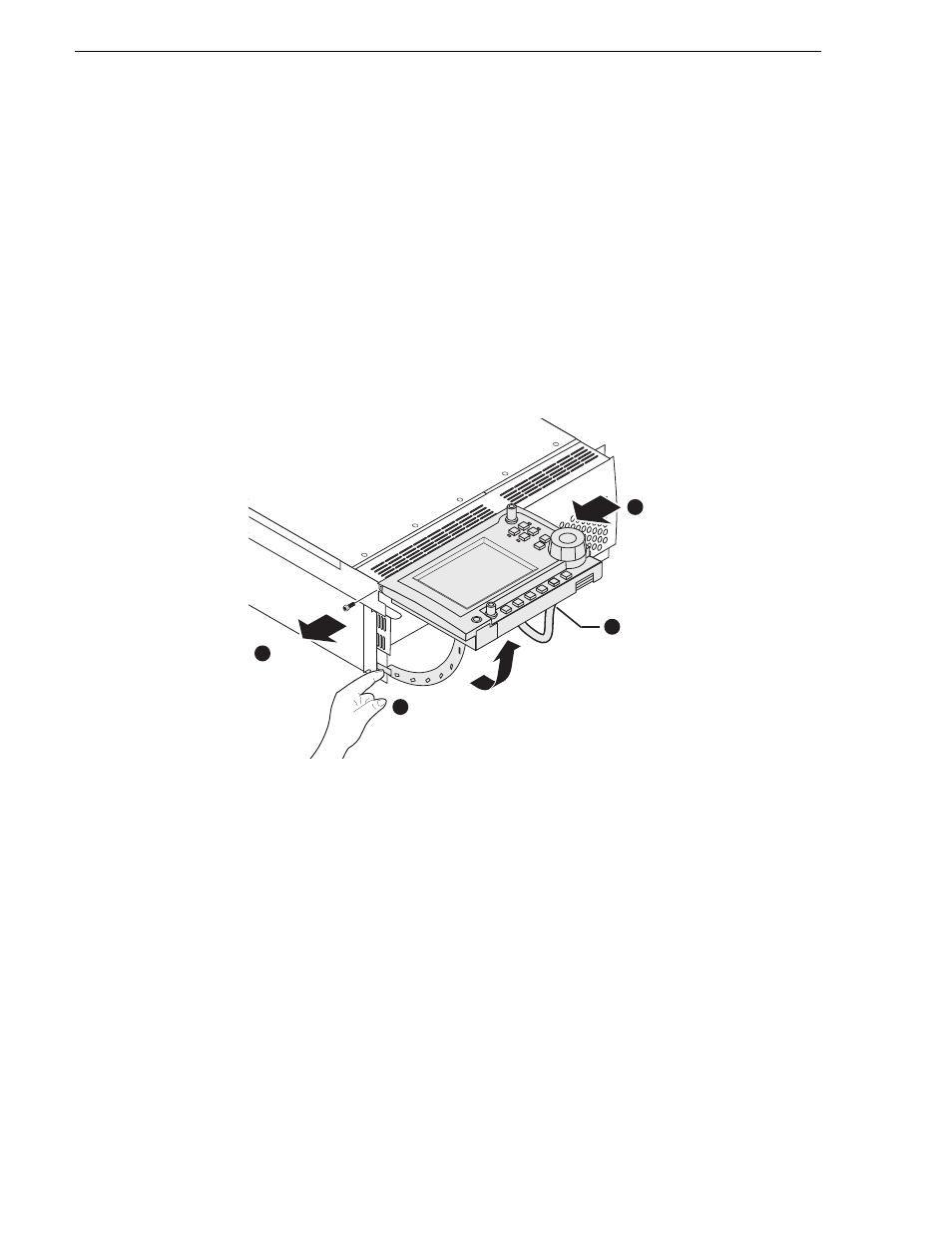

Press latch and
raise Front Panel 1
Remove
screw 3
2
Disconnect
cable 2
Slide off 4
