Chapter 6

Using Profile Utilities

234

Assigning an MPEG Decoder

The previous example assigns an MPEG encoder to a video input. By manually
adding the following lines, you can assign an MPEG decoder and connect it to
a video output.

// Manually edit these lines for Decoder

13-00 // index 18 - MpegDec#1 (Use 13-01 for

MpegDec#2, etc.)

18-02,CS // Schedule connect MpegDec#1 to

DComponentVideo1OutA (Play)

PortServer

PortSever allows you to control a Profile unit remotely using Ethernet
communications. For example, you can run PortServer on a remote Profile
system so that you can access it from a local Profile using your LAN. Simply
double-click the PortServer shortcut icon on the desktop to start it (or choose

Start | PDR Applications | PortServer

). The PortServer interface is shown in

Figure 113.

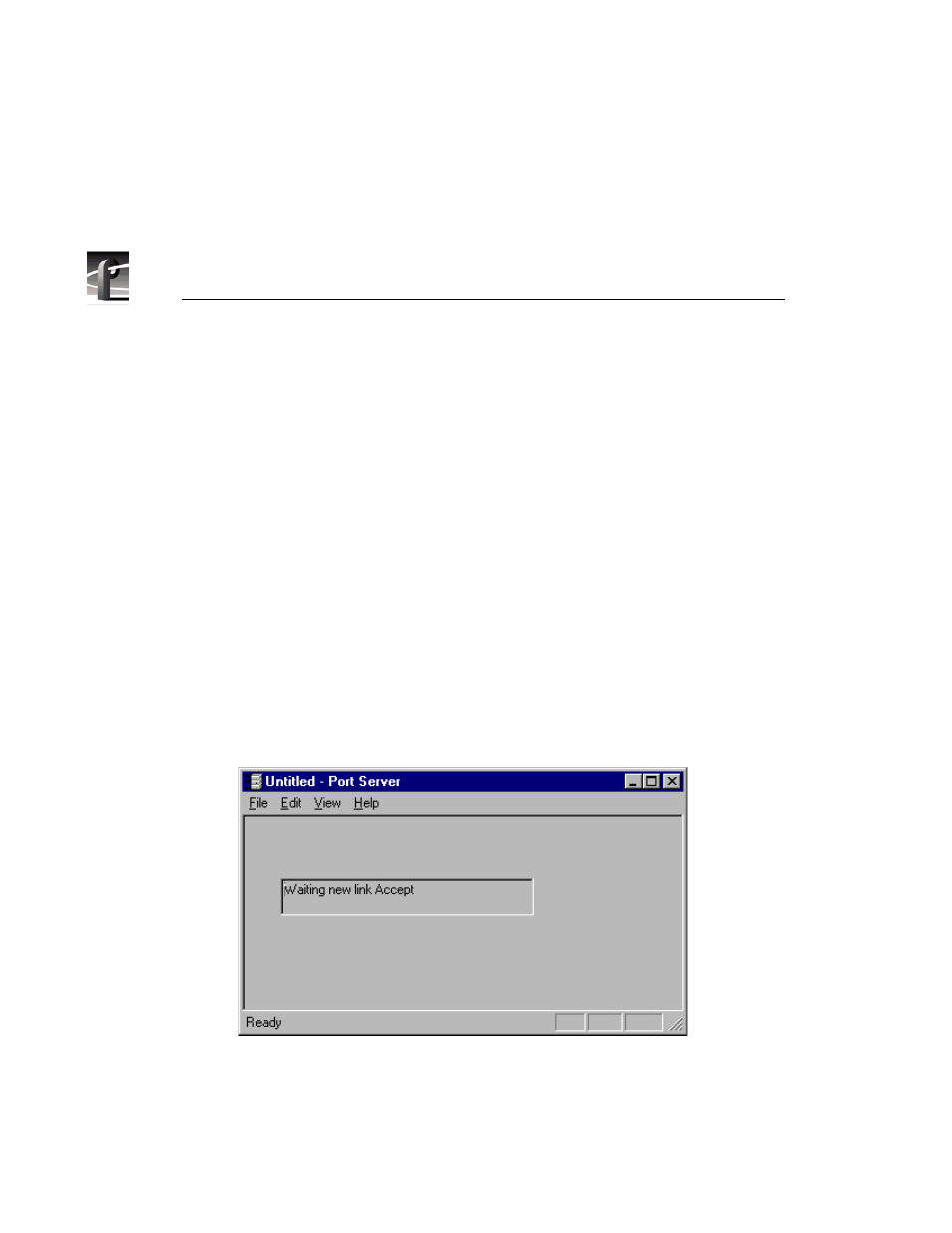

Figure 113. PortServer window
