Basic course G3/Upgrade course

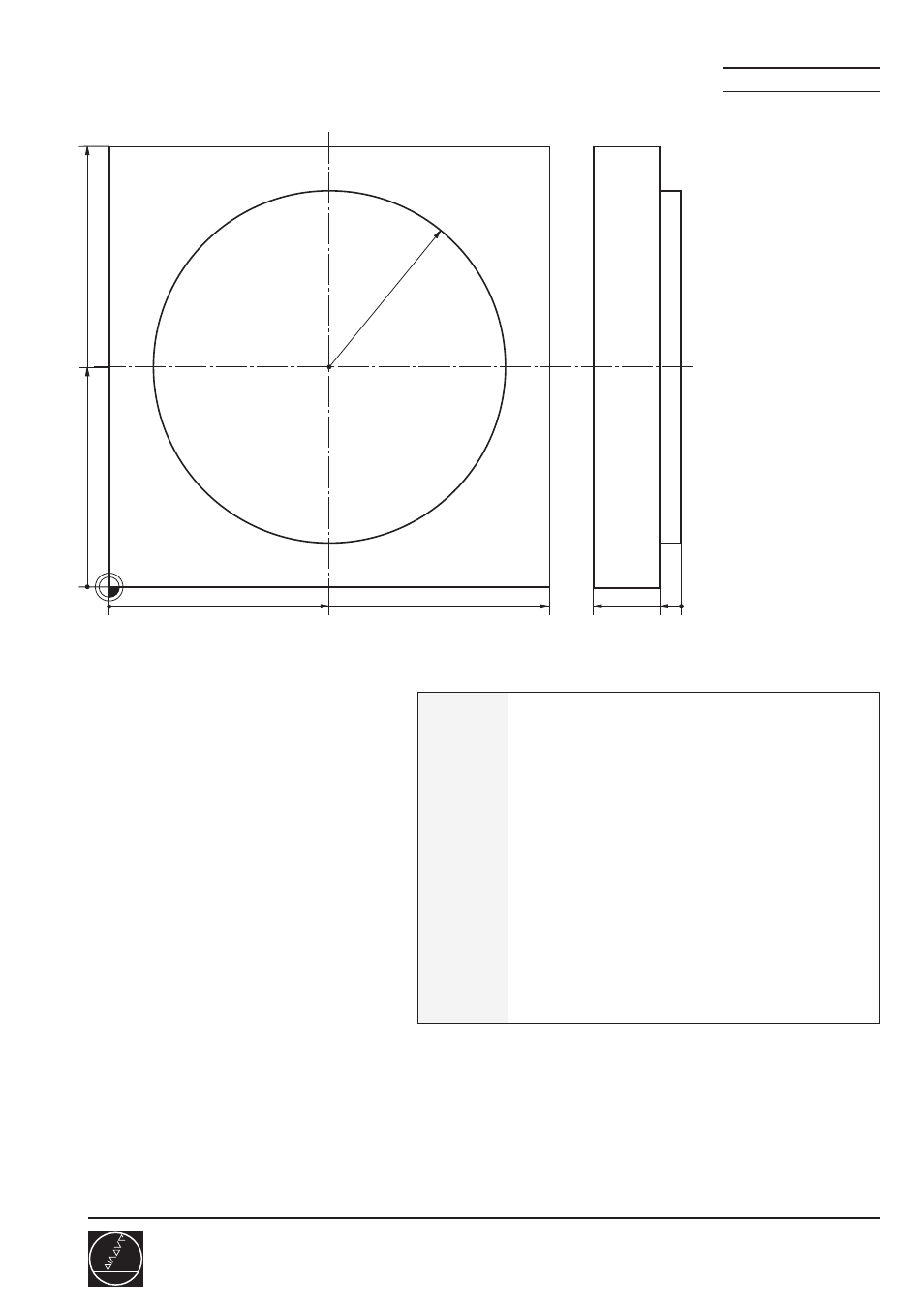

Task: Program(s): Circle (polar) CP
C01
211/1
Begin program
Define workpiece blank
Call tool data
Move to clearance height
Define pole
Auxiliary point in polar coord.
Contour
Auxiliary point
Retract tool, PGM end
BEGIN PGM . . . MM
BLK-FORM 0.1 . . . X . . . Y . . . Z . . .
BLK-FORM 0.2 X . . . Y . . . Z . . .
TOOL CALL . . . . . . S . . .
L . . .
. . .
. . .
. . .
. . .
. . .
100
20
0
100
0
50
0
50
5
R40
CC 0°
