Solution:
Basic course G3/Upgrade course

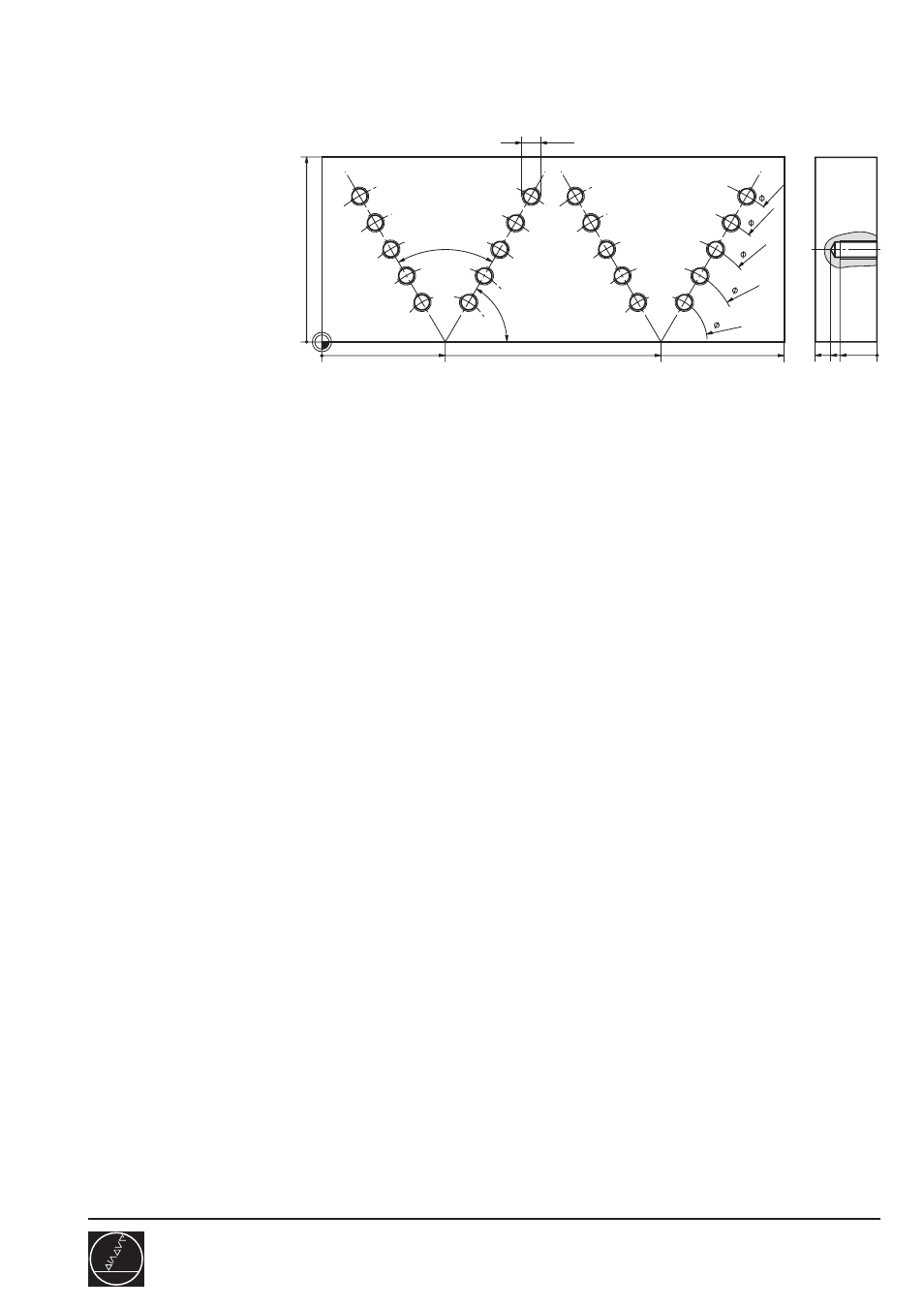

Bolt hole circle segments with several tools
280/3
D02
Main program
150
60
0
40
0
20
0
12
110
60°
60°
15
M6
30
50
70
90
110
0 BEGIN PGM 280 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+150 Y+60 Z+0
3 TOOL CALL 4 Z S2000 ............................................. R2
4 L Z+100 R0 F9999
5 CYCL DEF 1.0 PECKING
6 CYCL DEF 1.1 SET UP 2
7 CYCL DEF 1.2 DEPTH -3,5
8 CYCL DEF 1.3 PECKG 3,5
9 CYCL DEF 1.4 DWELL 0
10 CYCL DEF 1.5 F200
11 CALL LBL 1
12 L Z+100 M6
13 TOOL CALL 5 Z S1500 ............................................. R2,5
14 CYCL DEF 200 DRILLING
Q200=2 ..................................................................... SET UP CLEARANCE
Q201=-15 .................................................................. DEPTH
Q206=250 ................................................................. FEED RATE FOR PLUNGING
Q202=8 ..................................................................... PLUNGING DEPTH
Q210=0 ..................................................................... DWELL TIME AT TOP
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=20 ................................................................... 2ND SET UP CLEARANCE
15 CALL LBL 1
16 L Z+100 M6
17 TOOL CALL 6 Z S300 ............................................... R3
18 CYCL DEF 2.0 TAPPING
19 CYCL DEF 2.1 SET UP 2
20 CYCL DEF 2.2 DEPTH -12
21 CYCL DEF 2.3 DWELL 1
22 CYCL DEF 2.4 F300
23 CALL LBL 1
24 L Z+100 R0 M2
