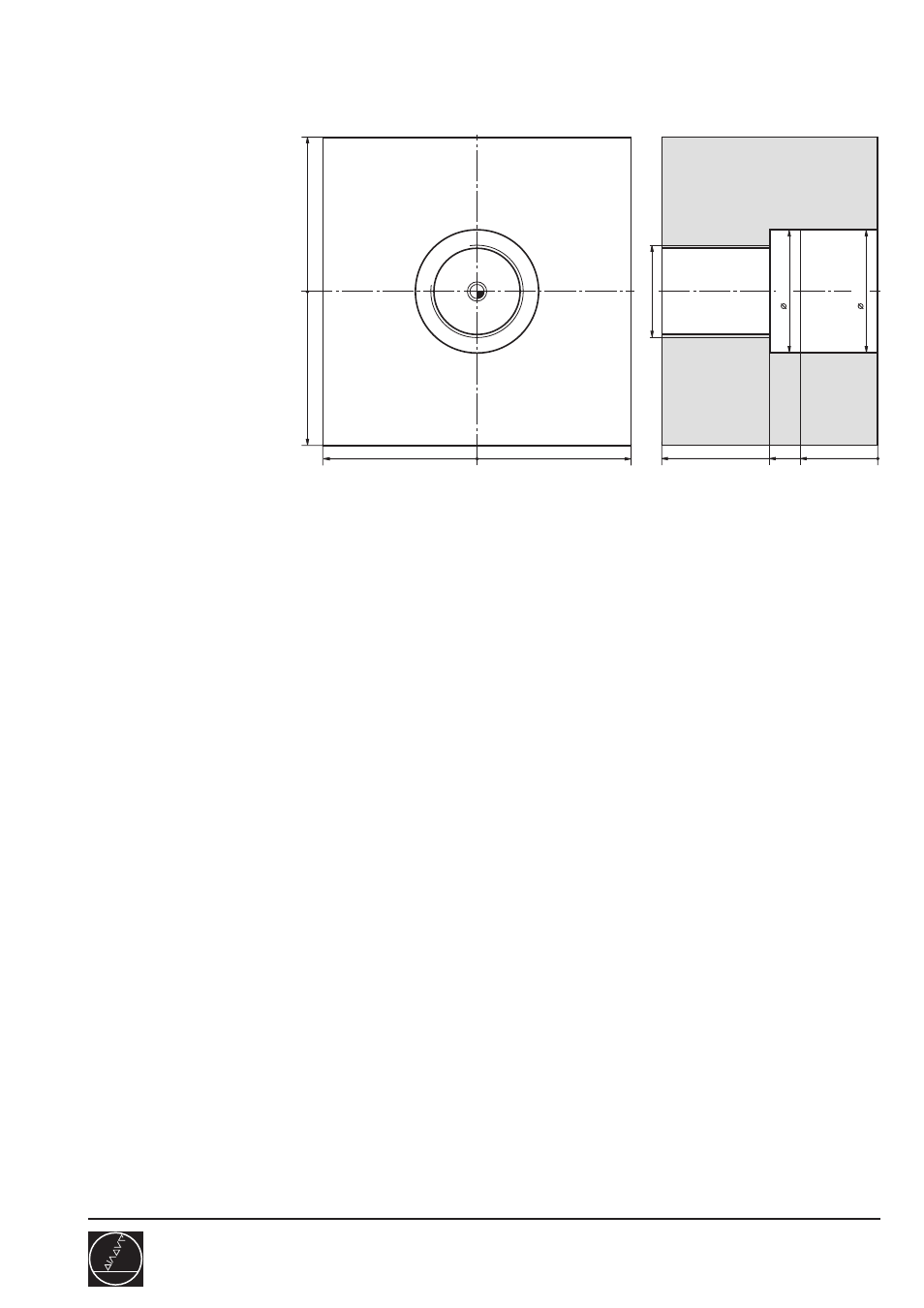

Solution:
Basic course G3/Upgrade course
50
50
-50
0
-50
0
70
0
35 25
M30 x 2
39,5 40
H7
Drilling with 200-series cycles
260/2
D02
Complete program
0 BEGIN PGM 260 MM
1 BLK FORM 0.1 Z X-50 Y-50 Z-70
2 BLK FORM 0.2 X+50 Y+50 Z+0
3 TOOL CALL 9 Z S1000 ............................................. R6
4 L Z+100 R0 F MAX
5 CYCL DEF 1.0 PECKING
6 CYCL DEF 1.1 SET UP 2
7 CYCL DEF 1.2 DEPTH -5
8 CYCL DEF 1.3 PECKG 5
9 CYCL DEF 1.4 DWELL 0
10 CYCL DEF 1.5 F200
11 L X+0 Y+0 R0 F9999 M3
12 L Z+2 M99
13 L Z+100 M6
14 TOOL CALL 11 Z S350 ............................................. R10
15 CYCL DEF 203 UNIVERSAL DRILLING
Q200=5 ..................................................................... SET UP CLEARANCE
Q201=-80 .................................................................. DEPTH
Q206=100 ................................................................. FEED RATE FOR PLUNGING
Q202=15 ................................................................... PLUNGING DEPTH
Q210=0 ..................................................................... DWELL TIME AT TOP
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=20 ................................................................... 2ND SET UP CLEARANCE
Q212=2 ..................................................................... DECREMENT
Q213=2 ..................................................................... NR OF BREAKS
Q205=5 ..................................................................... MIN. PLUNGING DEPTH
Q211=0 ..................................................................... DWELL TIME AT DEPTH
Q208=500 ................................................................. RETRACTION FEED RATE
16 CYCL CALL M3
17 L Z+100 M6
Centering
Drilling
